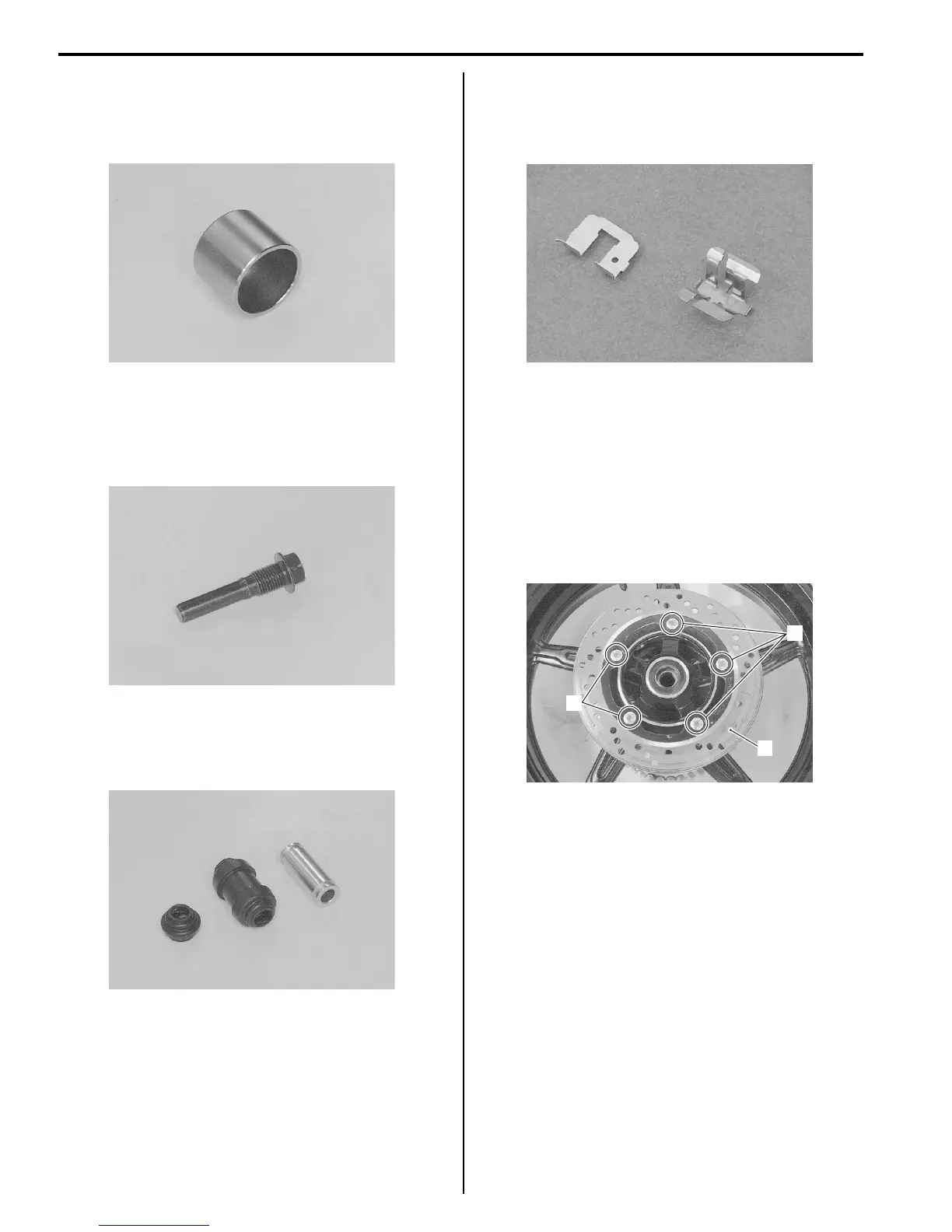

4C-6 Rear Brakes:
Brake Caliper Piston
Inspect the brake caliper piston surface for any
scratches or other damage. If any damage is found,
replace the piston with a new one.
Brake Caliper Sliding Pin
Inspect the brake caliper sliding pin for wear and other
damage. If any damage is found, replace the sliding pin
with a new one.
Boot and Spacer
Inspect the boots and spacer for damage and wear. If
any defects are found, replace them with new ones.
Brake Pad Spring
Inspect the brake pad springs for damage and excessive
bend. If any defects are found, replace them with new
ones.
Rear Brake Disc Removal and Installation
B944H14306007
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation in Section
2D (Page 2D-11)”.
2) Remove the rear brake disc (1) by removing its bolts
(2).
