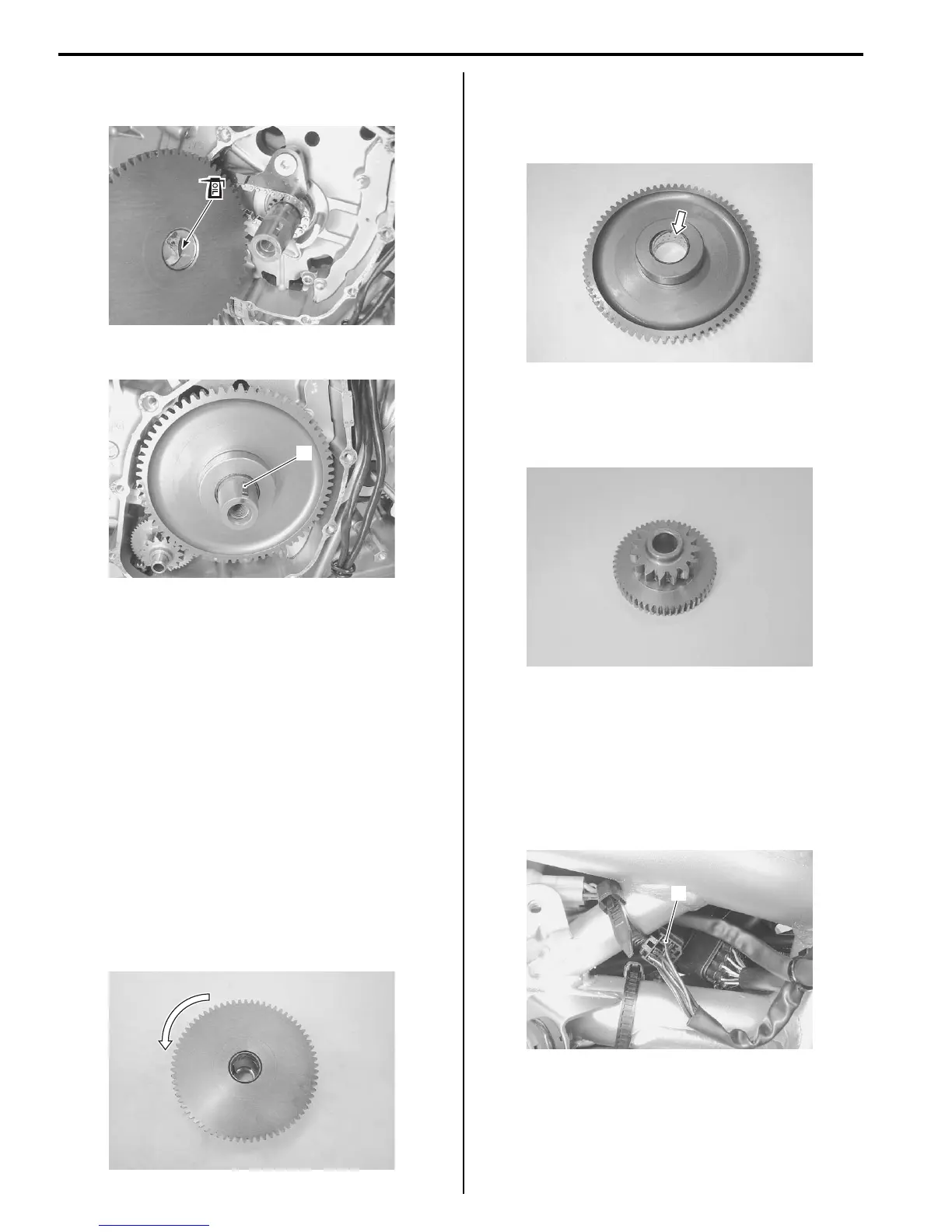

1I-12 Starting System:
• Apply engine oil to the bushing of the starter driven
gear.
• Fit the key (5) in the key slot on the crankshaft.
• Install the generator rotor onto crankshaft. Refer to
“Generator Removal and Installation in Section 1J
(Page 1J-4)”.
Starter Clutch Inspection
B944H11906010
Refer to “Starter Clutch Removal and Installation
(Page 1I-10)”.
Starter Clutch
1) Install the starter driven gear onto the starter clutch.
2) Turn the starter driven gear by hand to inspect the
starter clutch for a smooth movement. The gear
turns in one direction only. If a large resistance is felt
for rotation, inspect the starter clutch or the starter
clutch contacting surface on the starter driven gear
for wear or damage.
If they are found to be damaged, replace them with
new ones.
Starter Driven Gear Bushing
Inspect the starter driven gear bushing for wear or
damage.
If necessary, replace it with a new one.
Starter Idle Gear
Inspect the starter idle gear for wear or damage. If any
damage is found, replace it with a new one.
Starter Button Inspection
B944H11906011
Inspect the starter button in the following procedures:
1) Remove the right frame body cover. Refer to
“Exterior Parts Removal and Installation in Section
9D (Page 9D-4)”.
2) Disconnect the right handlebar switch coupler (1).
I944H1190033-02
5
I944H1190034-03
I944H1190035-01
I944H1190036-01
I944H1190037-01
1
I944H1190038-01

Suzuki SFV650 Specifications

General

Manufacturer	Suzuki
Model	SFV650
Category	Naked
Bore x Stroke	81.0 mm x 62.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire Size	120/70ZR17M/C (58W), tubeless
Rear Tire Size	160/60ZR17M/C (69W), tubeless
Ground Clearance	135 mm (5.3 in)
Curb Weight	202 kg (445 lbs)
Overall Width	760 mm
Wheelbase	1445 mm (56.9 in)
Fuel Capacity	14.5 L
Engine Type	4-stroke, liquid-cooled, DOHC, 90-degree V-twin
Overall Length	2, 130 mm (83.9 in)
Overall Height	1090 mm
