Suzuki SFV650 User Manual

1D-65 Engine Mechanical:
Oil Gallery Plug

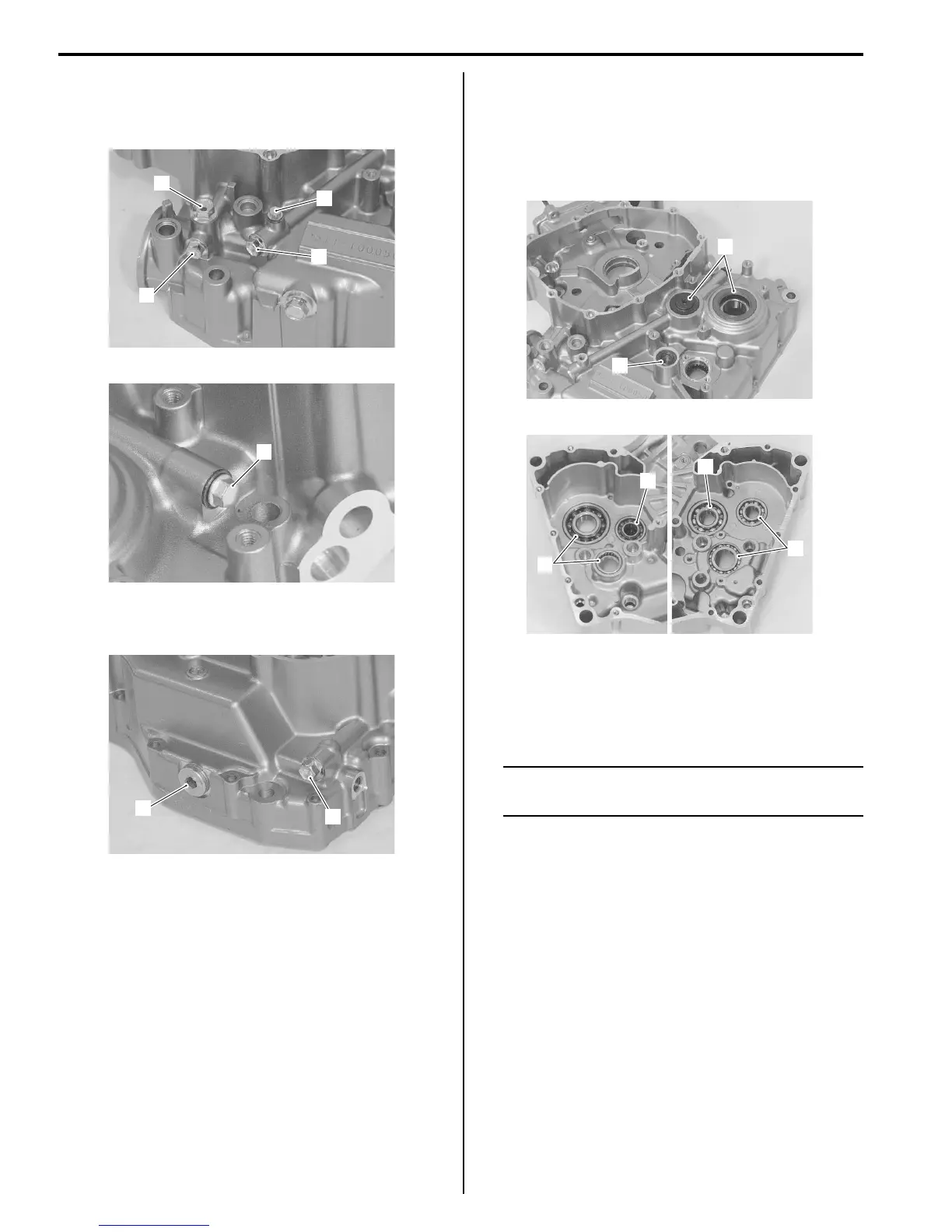

1) Remove the oil gallery plugs (M6) (1), (M8) (2) and
(M12) (3) from the left crankcase.
2) Remove the oil gallery plugs (M8) (4) and (M16) (5)
from the right crankcase.
Transmission Oil Seal / Bearing
Remove the transmission oil seals (1) and bearings (2) if
necessary. Refer to “Transmission Removal and
Installation in Section 5B (Page 5B-3)” and “Gearshift
Shaft Oil Seal Removal and Installation in Section 5B
(Page 5B-17)”.
Engine Bottom Side Assembly
B944H11406025
Assembly the engine bottom side in the reverse order of
disassembly. Pay attention to the following points:
NOTE
Apply engine oil to each running and sliding
part before reassembling.
Transmission Oil Seal / Bearing
• Install the transmission oil seals and bearings. Refer
to “Transmission Oil Seal / Bearing Removal and
Installation in Section 5B (Page 5B-10)” and
“Gearshift Shaft Oil Seal Removal and Installation in
Section 5B (Page 5B-17)”.
1
3
2
2
I944H1140043-01
1
I944H1140044-01
4
5
I944H1140045-01
1
1
I944H1140046-02
2
2
2
2
I944H1140047-02
