Suzuki SFV650 User Manual

Manual Transmission: 5B-17

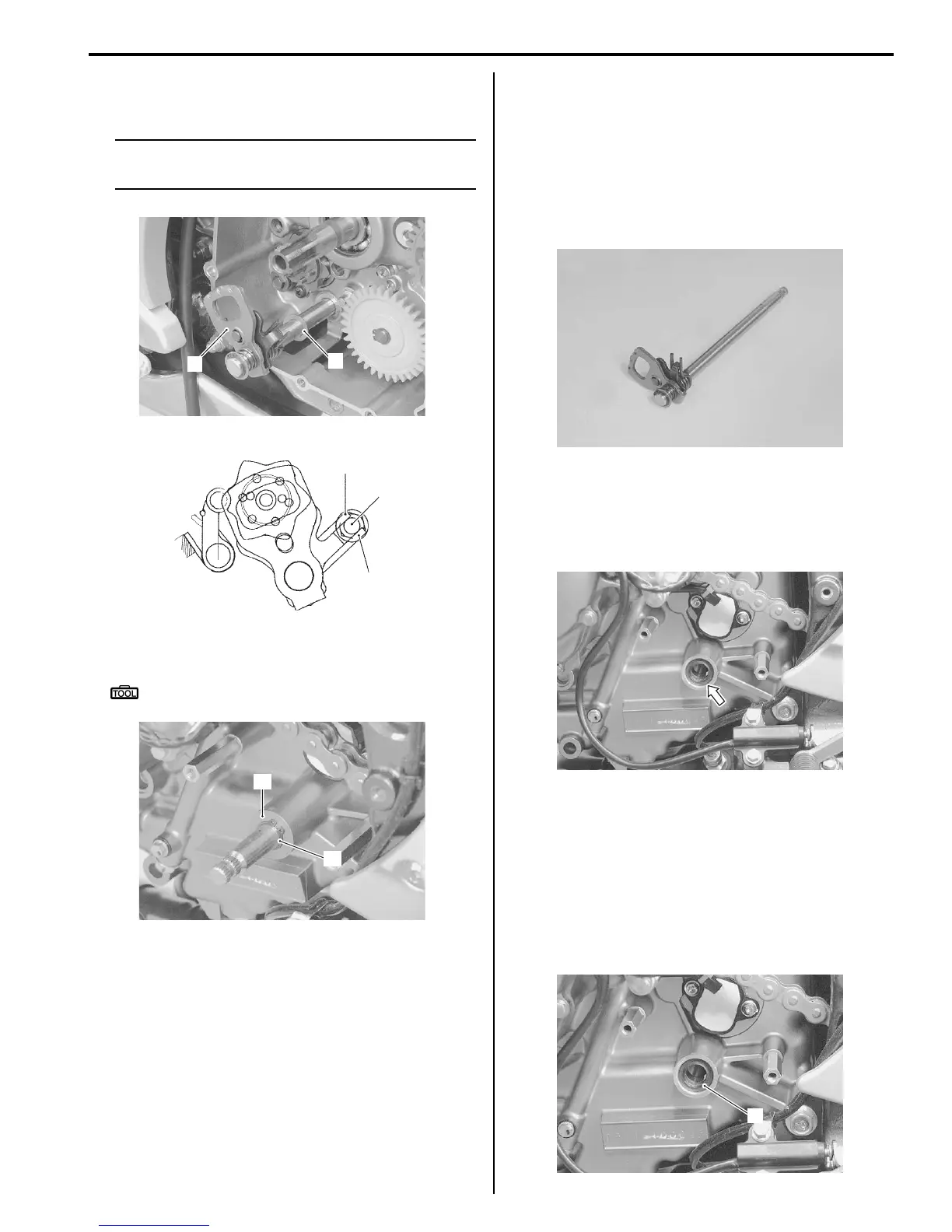

• Install the gearshift shaft assembly (8) and washer (9)
as shown.
NOTE
Pinch the gearshift arm stopper (10) with
return spring ends “F”.
• Install the washer (11) and snap ring (12).
Special tool
: 09900–06107 (Snap ring pliers)
• After installing the gearshift lever, check the gearshift
lever height. Refer to “Gearshift Lever Height
Inspection and Adjustment (Page 5B-13)”.
Gearshift Linkage Inspection
B944H15206015
Refer to “Gearshift Shaft / Gearshift Cam Plate Removal
and Installation (Page 5B-14)”.
Gearshift Shaft
Check the gearshift shaft for bend or wear.
Check the return spring for damage or fatigue.
If any defects are found, replace the defective part(-s).
Gearshift Shaft Oil Seal
Inspect the gearshift shaft oil seal lip for damage or
wear. If any defect is found, replace the oil seal with a
new one.
Gearshift Shaft Oil Seal Removal and
Installation
B944H15206016
Removal
1) Remove the gearshift shaft. Refer to “Gearshift Shaft
/ Gearshift Cam Plate Removal and Installation
(Page 5B-14)”.
2) Remove the gearshift shaft oil seal (1).
8
9
I944H1520060-01
10
“F”
“F”
I944H1520061-01
11
12
I944H1520062-01
I944H1520063-01
I944H1520064-01
1
I944H1520065-01

Suzuki SFV650 Specifications

General

Manufacturer	Suzuki
Model	SFV650
Category	Naked
Bore x Stroke	81.0 mm x 62.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire Size	120/70ZR17M/C (58W), tubeless
Rear Tire Size	160/60ZR17M/C (69W), tubeless
Ground Clearance	135 mm (5.3 in)
Curb Weight	202 kg (445 lbs)
Overall Width	760 mm
Wheelbase	1445 mm (56.9 in)
Fuel Capacity	14.5 L
Engine Type	4-stroke, liquid-cooled, DOHC, 90-degree V-twin
Overall Length	2, 130 mm (83.9 in)
Overall Height	1090 mm
