Neutral Switch
POSITION CLOSED CIRCUITS
G425298
ON COM + NO
OFF COM + NC

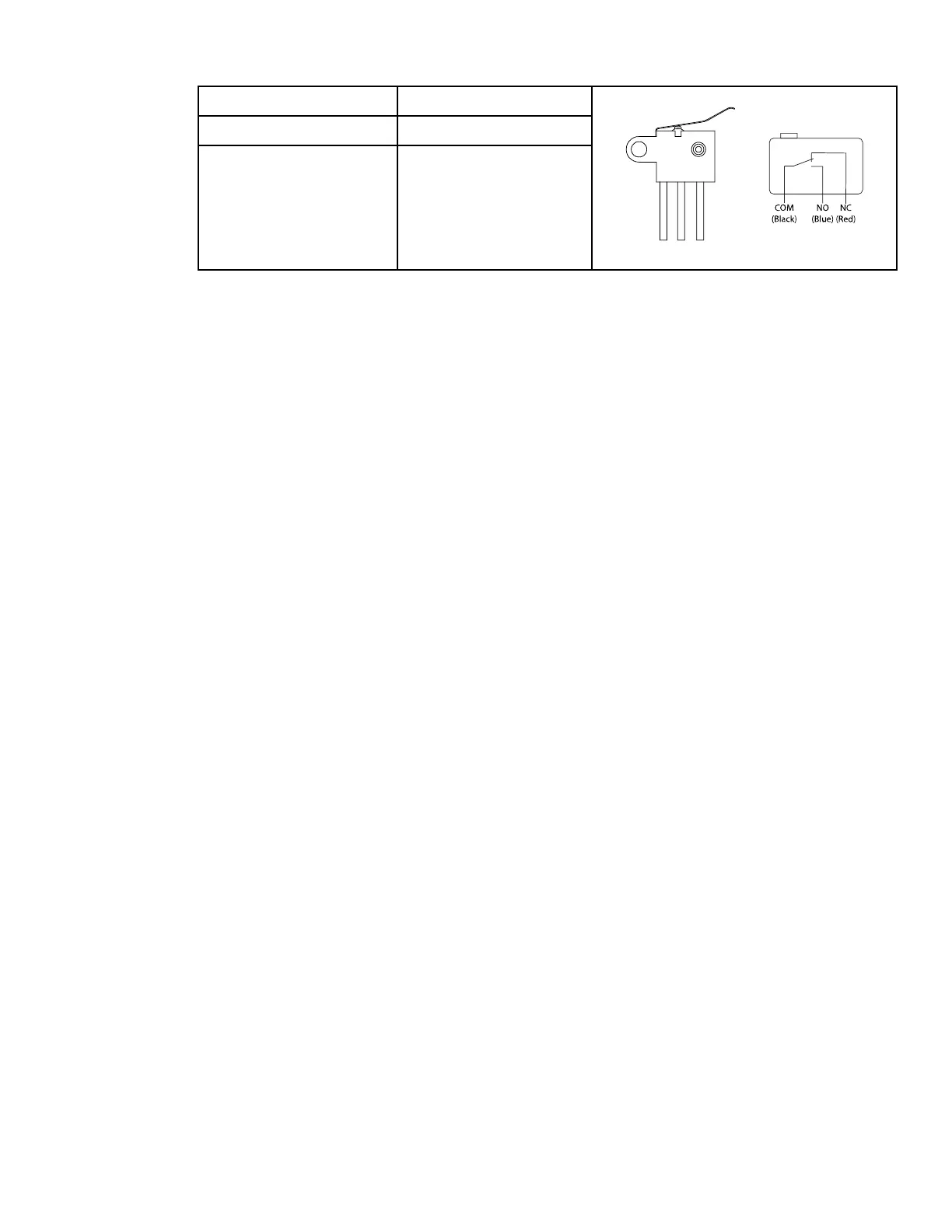

The neutral switch is a micro switch located beside the hydraulic pump. The switch is
engaged when the Speed, Direction, Lift, Auxiliary (SDLA) control lever is in the
neutral position. The neutral switch is part of the safety interlock circuit. The machine
will not start if the SDLA control lever is not in the neutral position.
