Removing the Rear Axle Assembly
CAUTION
Before opening the hydraulic system, operate all the hydraulic controls to
release system pressure and avoid injury from the pressurized hydraulic fluid;
refer to Relieving Pressure from the Hydraulic System, page 5–2.

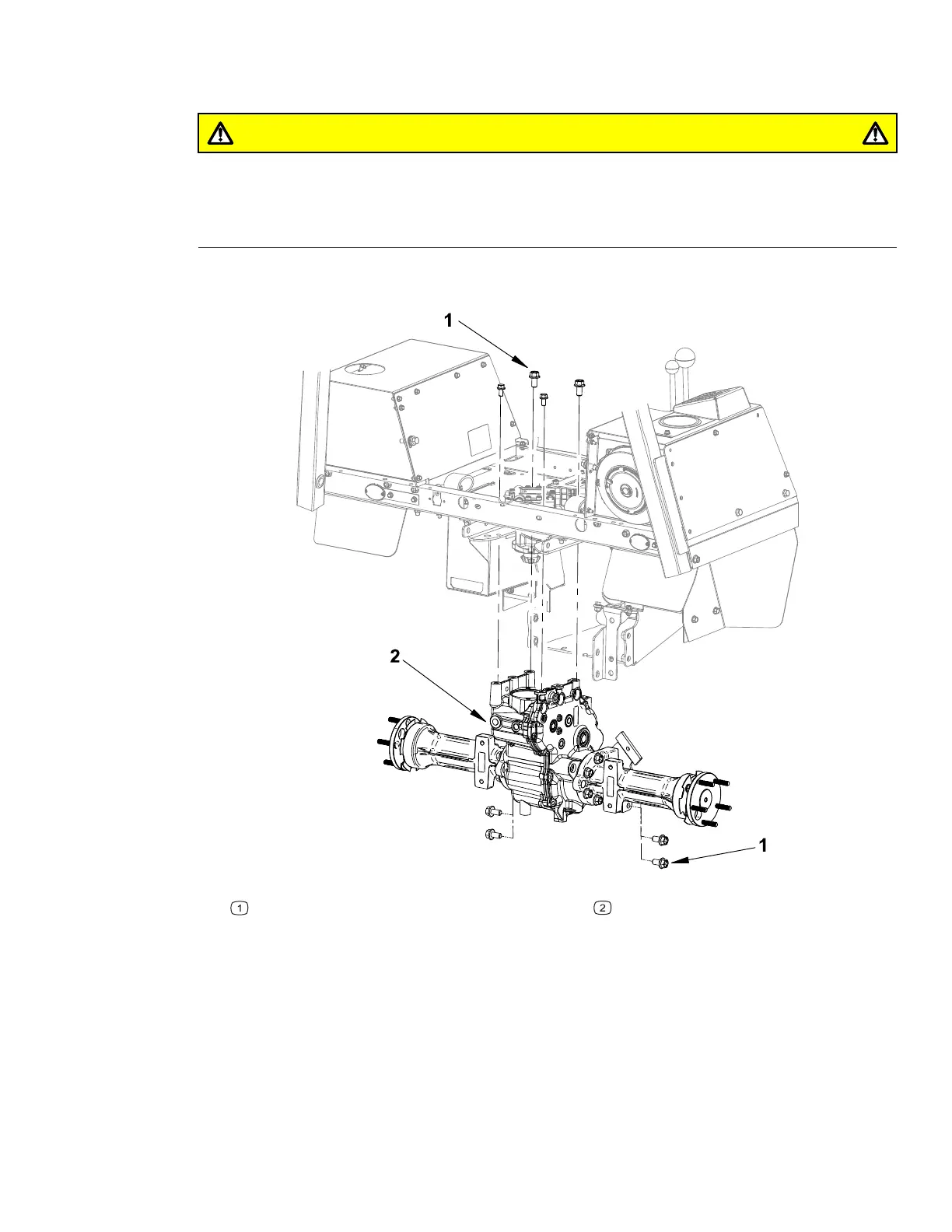

Figure 118
G446537
Mounting bolts
Rear axle assembly
1. Remove any attachments from the machine, park the machine on a level surface,
engage the parking brake and remove the key from the ignition.
2. Lift and securely support the rear of the machine; refer to Jacking Instructions,
page 1–6.
3. Complete the following procedures before continuing.
A. Remove the rear wheels; refer to Removing and Installing the Wheels, page
7–11.
4520P Page 8–7 Axles: Service and Repairs
09.40003Rev 00
