Engine Service and Repairs
4520P Air Cleaner System

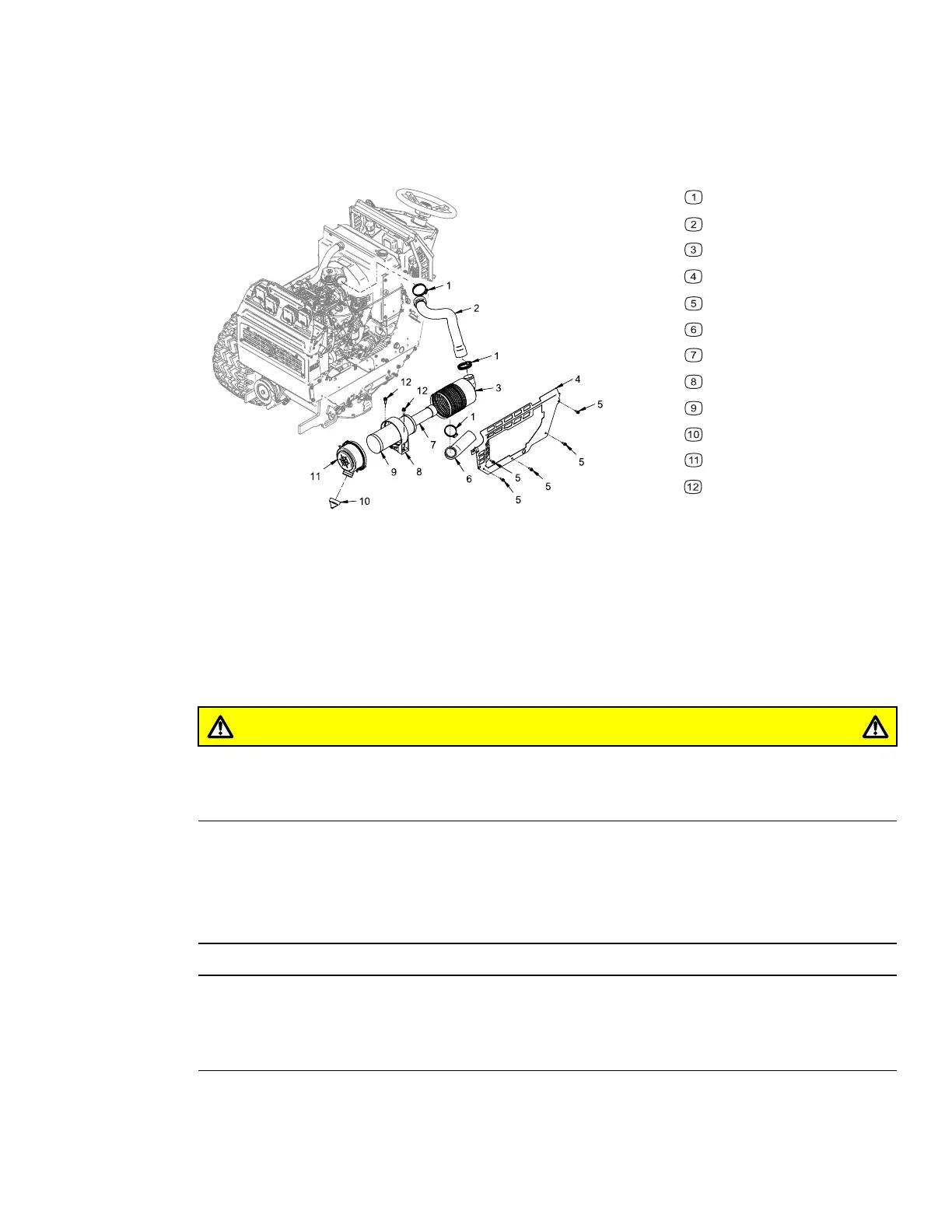

Figure 7
G416500
Hose Clamp
Intake Hose
Air Cleaner Assembly
Engine Cover
Flange Bolt
Air Cleaner Hose
Safety Filter Element
Clamp
Primary Filter Element
Drain Valve
Cover Assembly
Flange Bolt
Note: Refer to the 4520P Operator’s Manual for maintenance procedures and
service intervals for the air filters.
4520P Removing and Installing the Air Cleaner System
CAUTION
The engine and air cleaner system may be hot. To avoid possible burns, allow
the engine to cool before working on the engine.
1. Remove the air cleaner components as required.
2. Examine the air cleaner assembly components for wear or damage and replace
them as necessary.
IMPORTANT
Leaks in the air cleaner system will allow dirt to enter the engine and can cause
damage to the engine and components. Ensure that all the air cleaner
components are in good condition and installed properly.
3. Assemble the air cleaner components as shown Figure 7.
4520P Page 4–3 Engine: Engine Service and Repairs
09.40003Rev 00
