Raising the Rear of the Machine
1. Remove all attachments from the machine.
2. Remove all weights from the rear of the machine.
3. Park the machine on a level surface, engage the parking brake, and remove the
key from the ignition.
4. Block the front wheels using wheel chocks to prevent the machine from rolling.

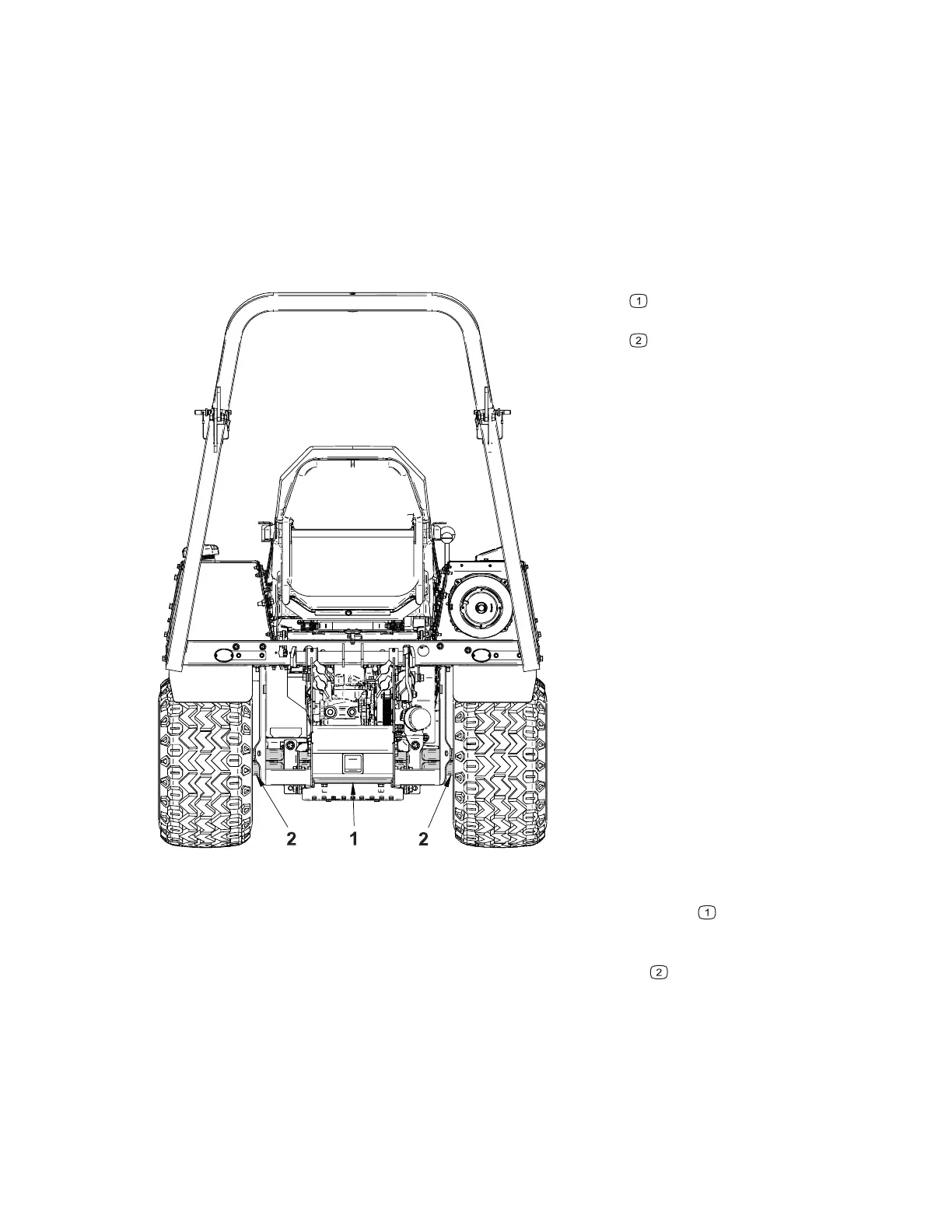

Figure 3
G415151
Frame, Rear Weight Bar/
Hitch
Axle Assembly
5. Position the jack securely under the frame, rear weight bar/hitch .
6. Lift the rear of the machine to the desired height.
7. Position the jack stands securely under the axle assembly
.
Note: Removing the rear wheels may be required to fit jack stands under the
axle housing.
8. Lower the machine onto the jack stands and remove the jack.
General Safety Instructions: Jacking Instructions Page 1–8 4520P
