Installing the Rear Weight Mount
1. Position the rear weight mount on the machine aligning the mounting holes.
2. Install the six upper mounting bolts Figure 108, item 1.
3. Install the four lower mounting bolts Figure 108, item 2.
4. Install the rear transaxle skid plate.
5. Install the left rear taillight.
Removing the 3–Point Hitch
Some procedures will require the 3–point hitch components to be removed. This
procedure will detail a partial removal procedure, hydraulic components (hoses,
cylinders, couplers, valves) will not be removed.

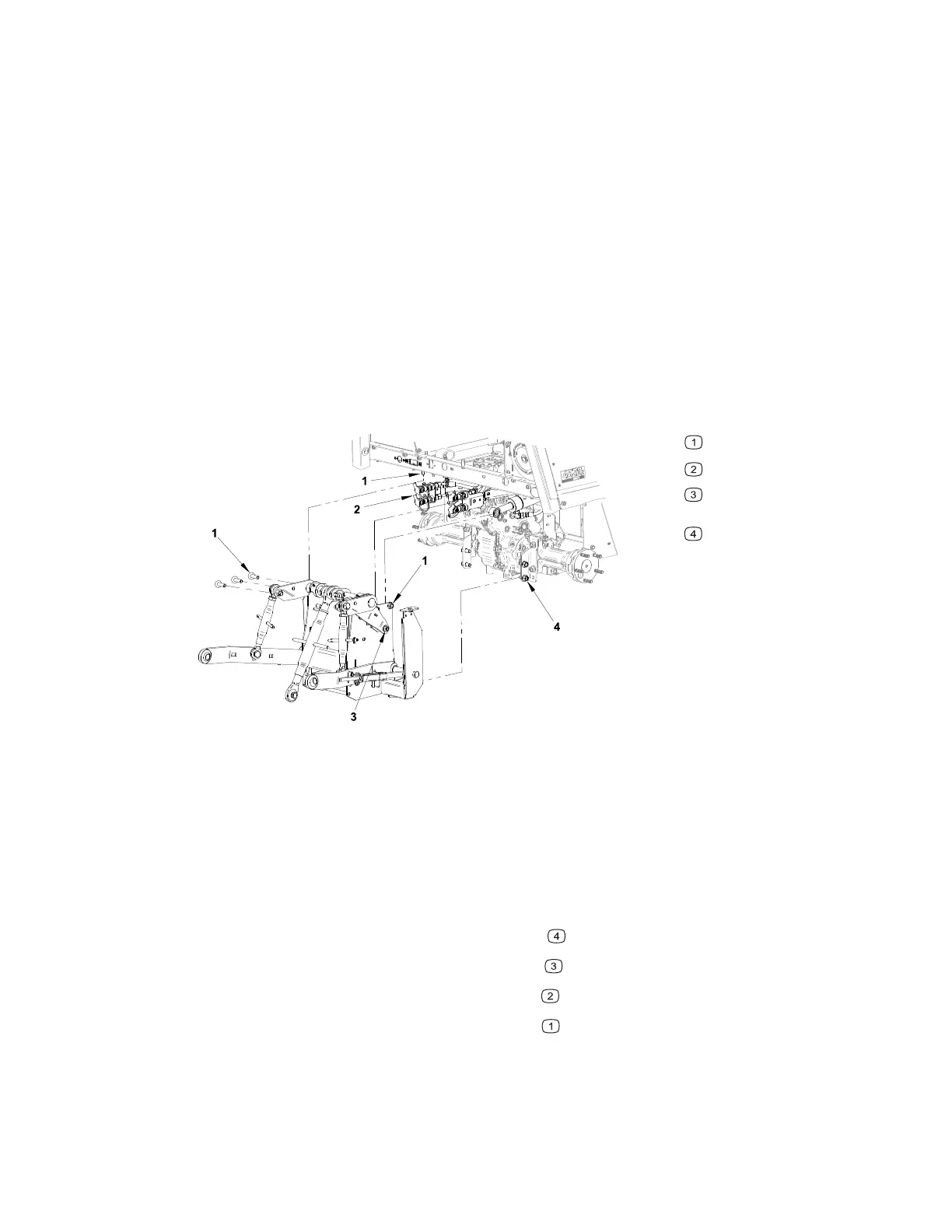

Figure 109
G444162
Upper mounting bolts
Auxiliary couplers
Lift cylinder mounting
bolts
Lower mounting bolts.
1. Remove any attachments from the machine, park the machine on a level surface,
engage the parking brake, remove the key from the ignition, and switch the circuit
breaker to the O
FF position.
2. Remove all weights from the rear weight mount.
3. Remove the left rear taillight.
4. Remove the rear transaxle skid plate.
5. Remove the four lower mounting bolts
.
6. Remove the lift cylinder mounting bolt
.
7. Remove the auxiliary coupler mounts
mounting bolts.
8. Remove the six upper mounting bolts
.
9. Remove the 3–point hitch from the machine.
4520P Page 7–45 Chassis: Service and Repairs
09.40003Rev 00
