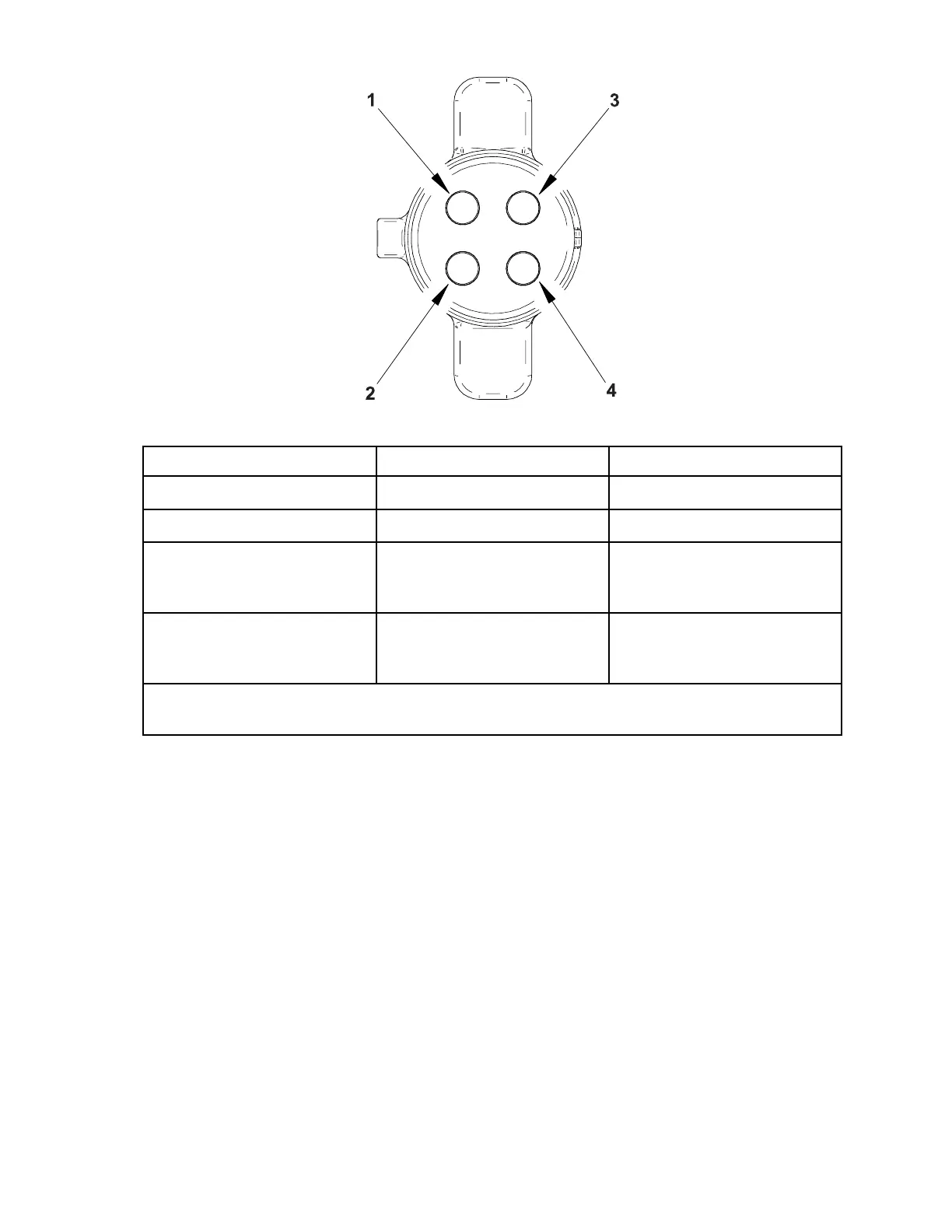

Figure 68
Front View of Plug
G426840
Terminal Position Wire Color Function
1 Not Specified* Positive (On/Off Switched)
2 Not Specified* Negative (Constant)
3 Not Specified* Positive/Negative
(Momentary Switched
Reversing)
4 Not Specified* Positive/Negative
(Momentary Switched
Reversing)
* Refer to the part diagram in the attachment’s parts manual for specific wire color and
terminal position for each model.
Electrical System: 12 Volt Front and Rear Socket and
Plug
Page 6–62 4520P
09.40003Rev 00
