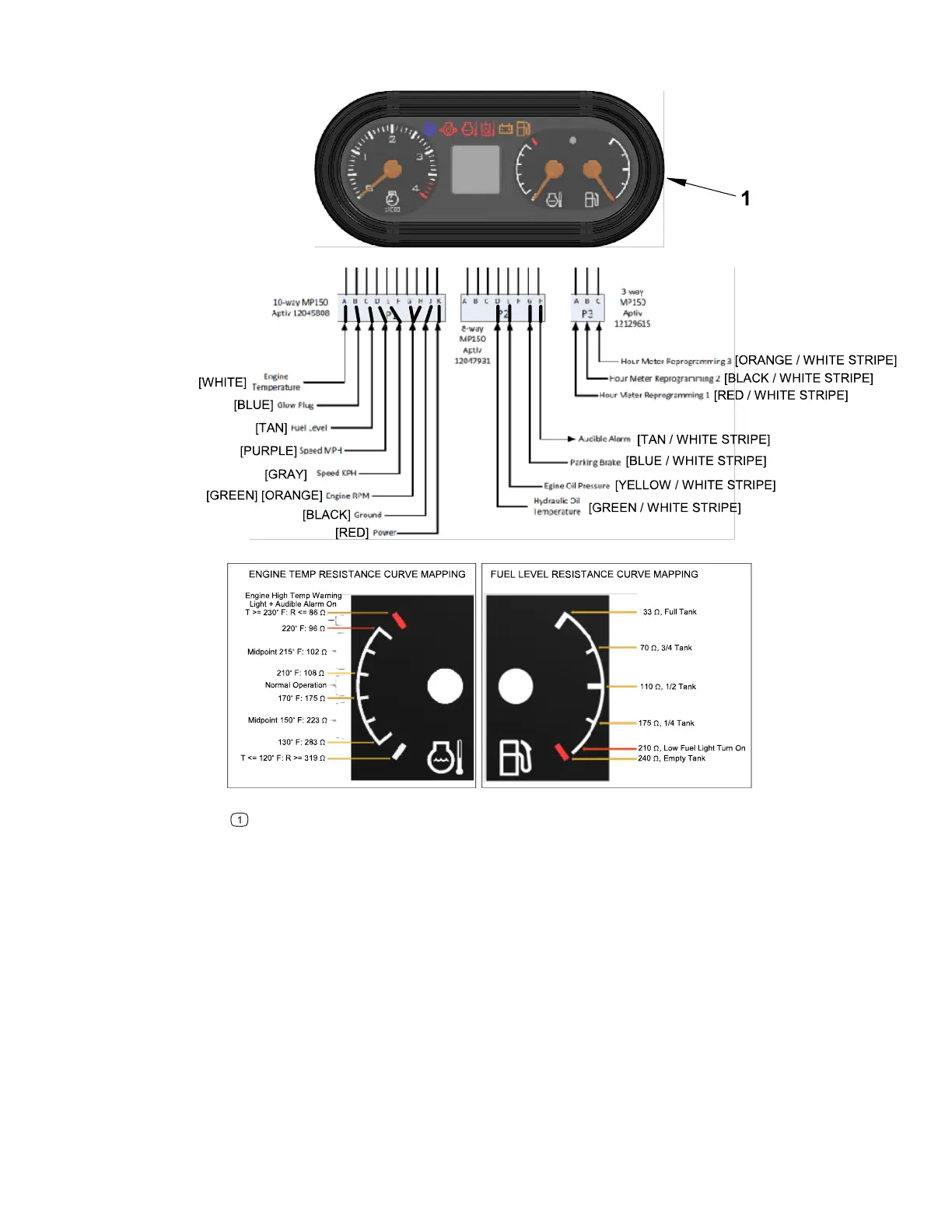

Information Gauge Cluster
G441972
Gauge cluster
The information gauge cluster contains a tachometer, speedometer, hour meter, volt
meter, water temperature gauge, fuel gauge, and a parking brake indicator. It also
contains an indicator light for the glow plugs and warning lights for low engine oil
pressure, high water temperature, high hydraulic oil temperature, low voltage, and
low fuel.
4520P Page 6–23 Electrical System: Information Gauge Cluster
09.40003Rev 00
