Removing the Front Hitch Arms

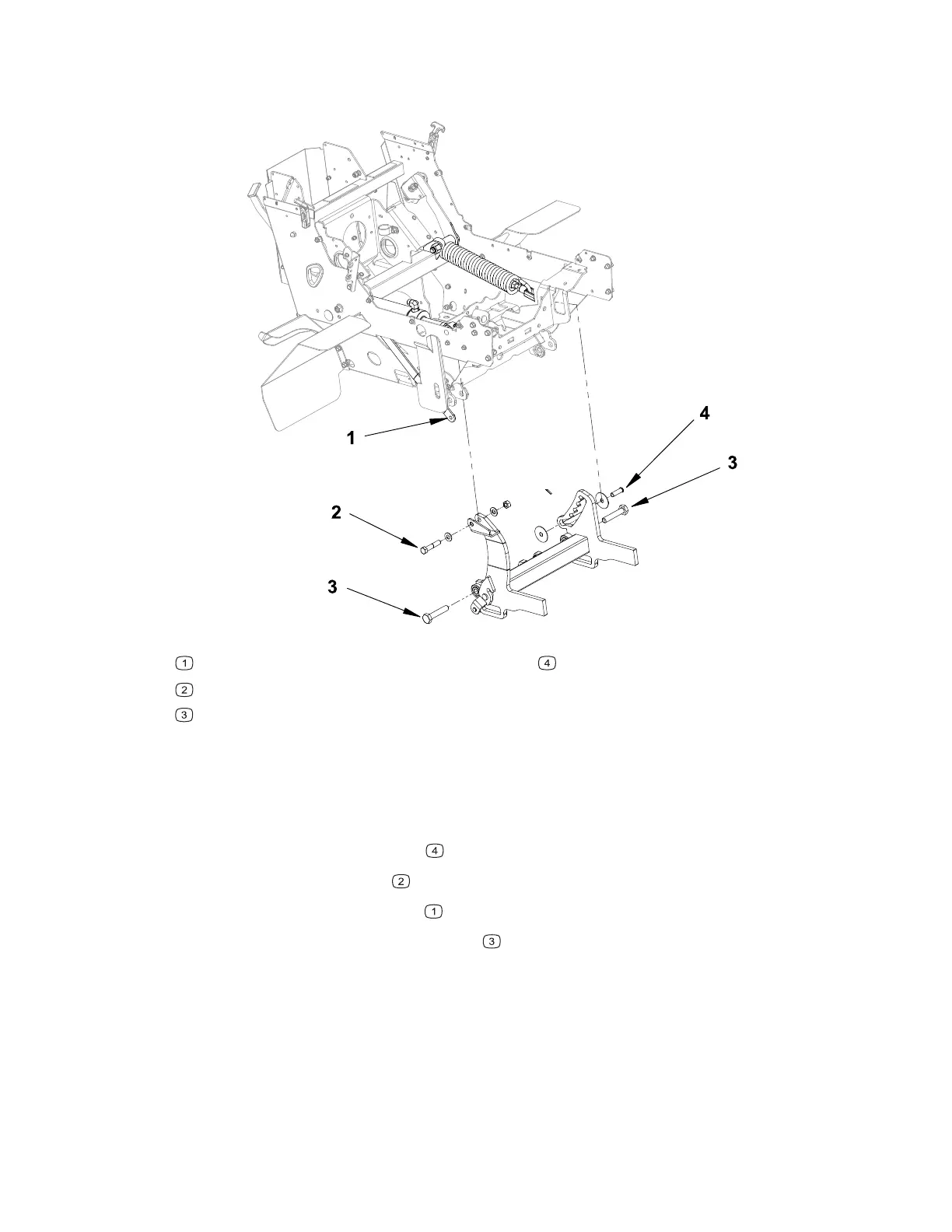

Figure 113
G445385
Hitch latch pin
Cylinder mounting bolt
Hitch arm mounting bolts
Weight transfer mounting bolt
1. Remove any attachments from the machine, park the machine on a level surface,
engage the parking brake, and remove the key from the ignition.
2. Remove the right and left engine covers; refer to Removing and Installing the
Engine Covers, page 7–14.
3. Disconnect the weight transfer
assembly from the hitch arms.
4. Disconnect the lift cylinder
from the hitch arms.
5. Disconnect the hitch arm latch
.
6. Remove the hitch arm mounting bolts
.
7. Remove the hitch arms from the machine.
Installing the Front Hitch Arms
1. Position the front hitch arms on the machine aligning the mounting holes.
2. Install the hitch arm mounting bolts Figure 113, item 3 and grease the front hitch
pivot points.
