Removing and Installing the Grill

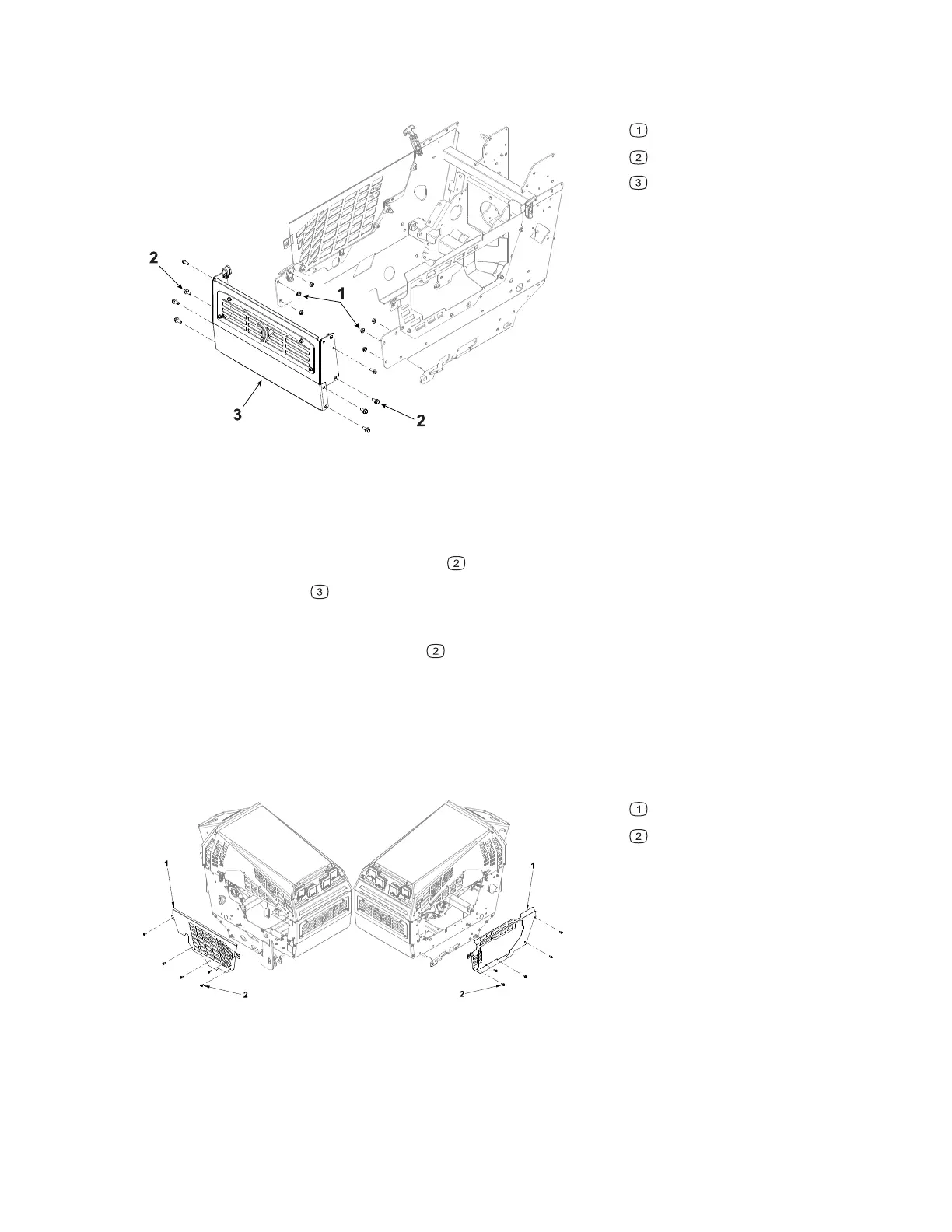

Figure 78
G427311
Locking flange nut
Bolt
Grill assembly
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Remove the hood; refer to Removing and Installing the Hood, page 7–13.
3. Remove the eight mounting bolts
.
4. Remove the grill
from the machine.
5. To install the grill position the grill aligning the mounting holes.
6. Install the eight mounting bolts
.
7. Install the hood.
Removing and Installing the Engine Covers
Figure 79
G452269
Engine covers
Mounting bolts
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
