Removing and Installing the Parking Brake Cover

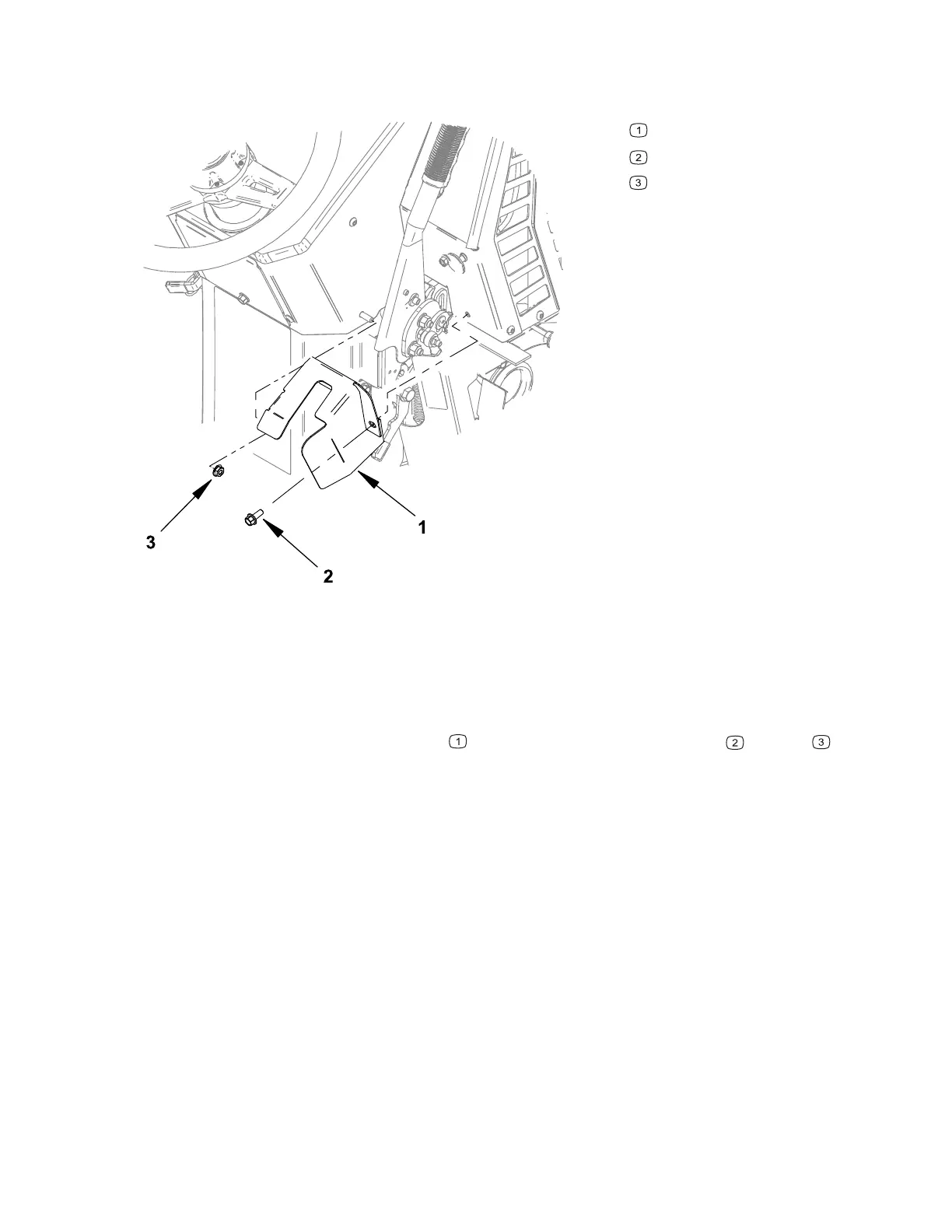

Figure 99
G435145
Parking brake cover
Mounting bolt
Nut
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Remove the parking brake cover
, by removing the mounting bolt and nut .
4. Remove the parking brake cover from the machine.
5. To install the parking brake cover, position the cover over the parking brake
against the dash aligning the mounting holes.
6. Install the mounting bolt and nut.
7. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
