Removing and Installing the Hydraulic Cooler Top
Cover

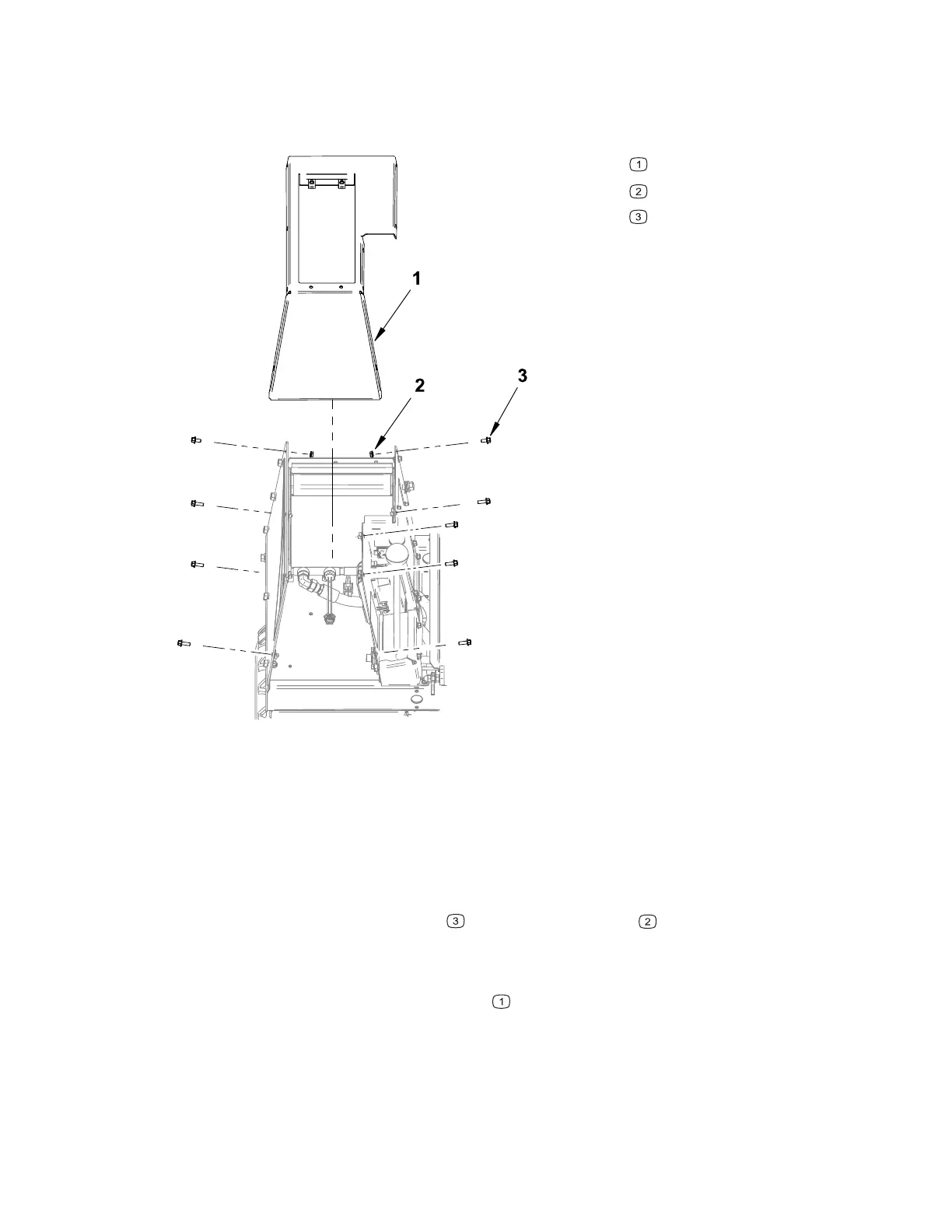

Figure 85
G429901
Hydraulic cooler top cover
Locking nut
Flange bolt
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Remove the control panel; refer to Removing and Installing the Control Panel,
page 7–19.
4. Remove the nine mounting bolts
and two locking nuts .
5. If the machine is equipped with a 3–point hitch, remove the hydraulic valve
mounting bolts.
6. Remove the hydraulic cooler top cover
from the machine.
7. To install the hydraulic cooler top cover, position the top cover on the machine
aligning the mounting holes.
8. Loosely install all the mounting bolts and nuts.
Chassis: Service and Repairs Page 7–20 4520P
09.40003Rev 00
