Removing the Battery

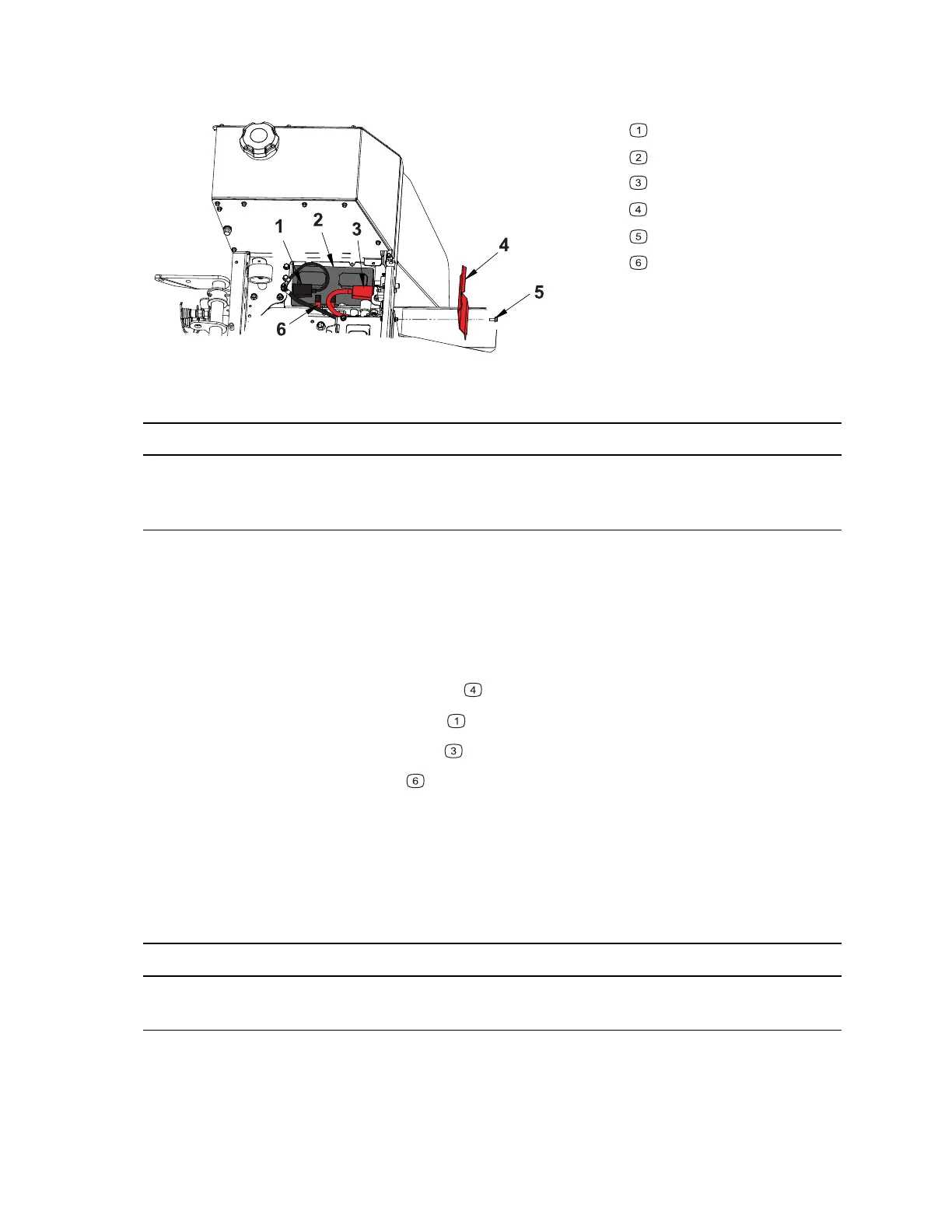

Figure 70
G421981
Negative (-) battery cable
Battery
Positive (+) battery cable
Left foot platform panel
Flange bolt
Battery retainer
IMPORTANT
Use care when removing the battery cables and ensure that you do not damage
the terminal posts or cable connectors.
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Tilt the seat forward and secure it in place with the seat prop.
4. Remove the left foot platform panel
.
5. Disconnect the negative (-) cable
.
6. Disconnect the positive (+) cable
.
7. Remove the battery retainer
.
8. Remove the battery by sliding the battery forward out of the battery compartment.
Installing the Battery
IMPORTANT
To prevent possible electrical problems, install only a fully charged battery.
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake and remove the key from the ignition.
