Removing and Installing the SDLA Pivot Cover
(continued)
2. Switch the main circuit breaker to the OFF position, to de-energize the electrical
system.
3. Tilt the seat forward and secure it in place with the seat prop.
4. Remove the two mounting bolts
.
5. Remove the SDLA pivot cover
.
6. To install the SDLA pivot cover, position the cover against the seat box frame and
hydraulic cooler inner cover aligning the mounting holes.
7. Install the mounting bolts.
8. Return the seat to the operating position.
9. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Removing and Installing the Right Outer Seat Box
Panel

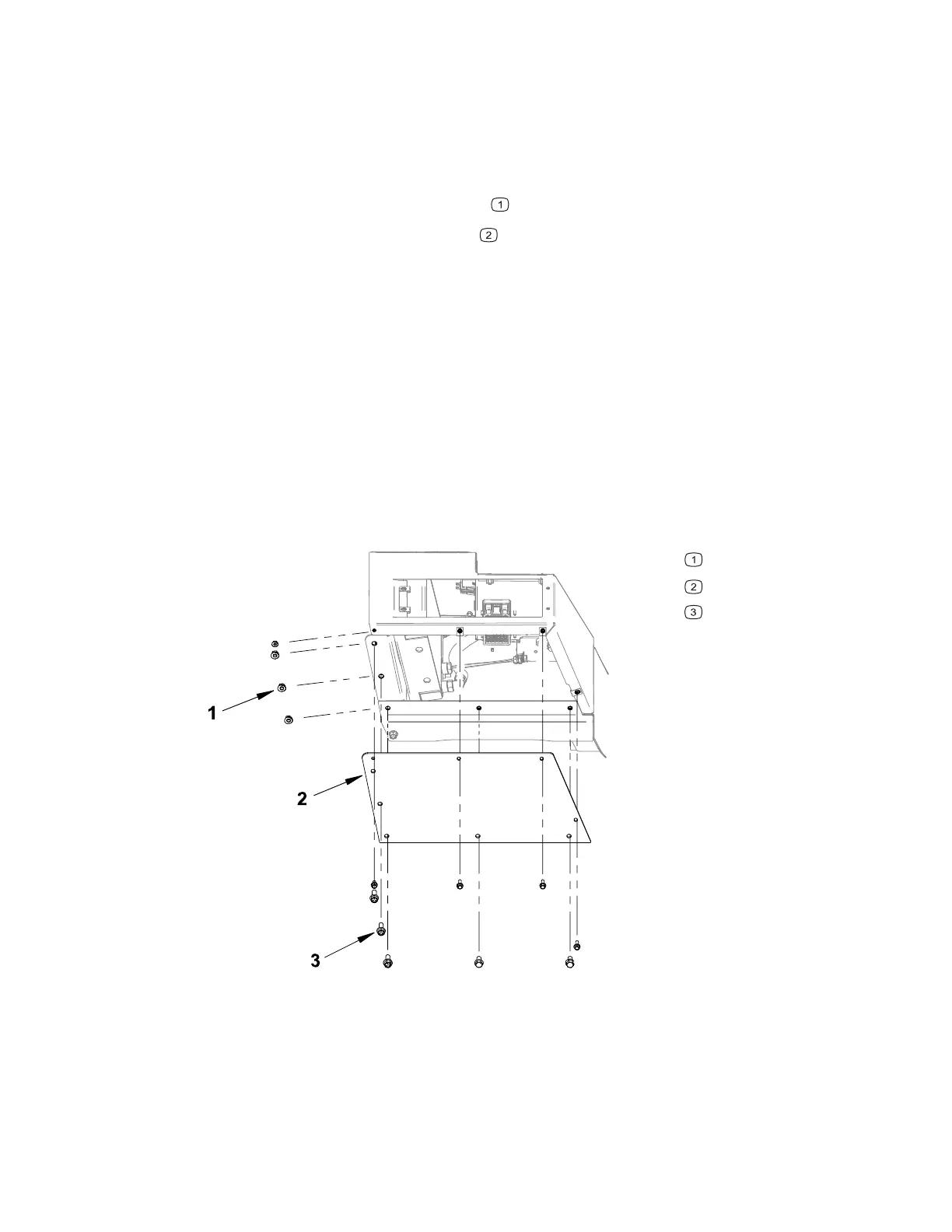

Figure 88
G430210
Nut
Right outer seat box panel
Mounting bolts
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
4520P Page 7–23 Chassis: Service and Repairs
09.40003Rev 00
