Removing and Installing the Lower Frame Cover

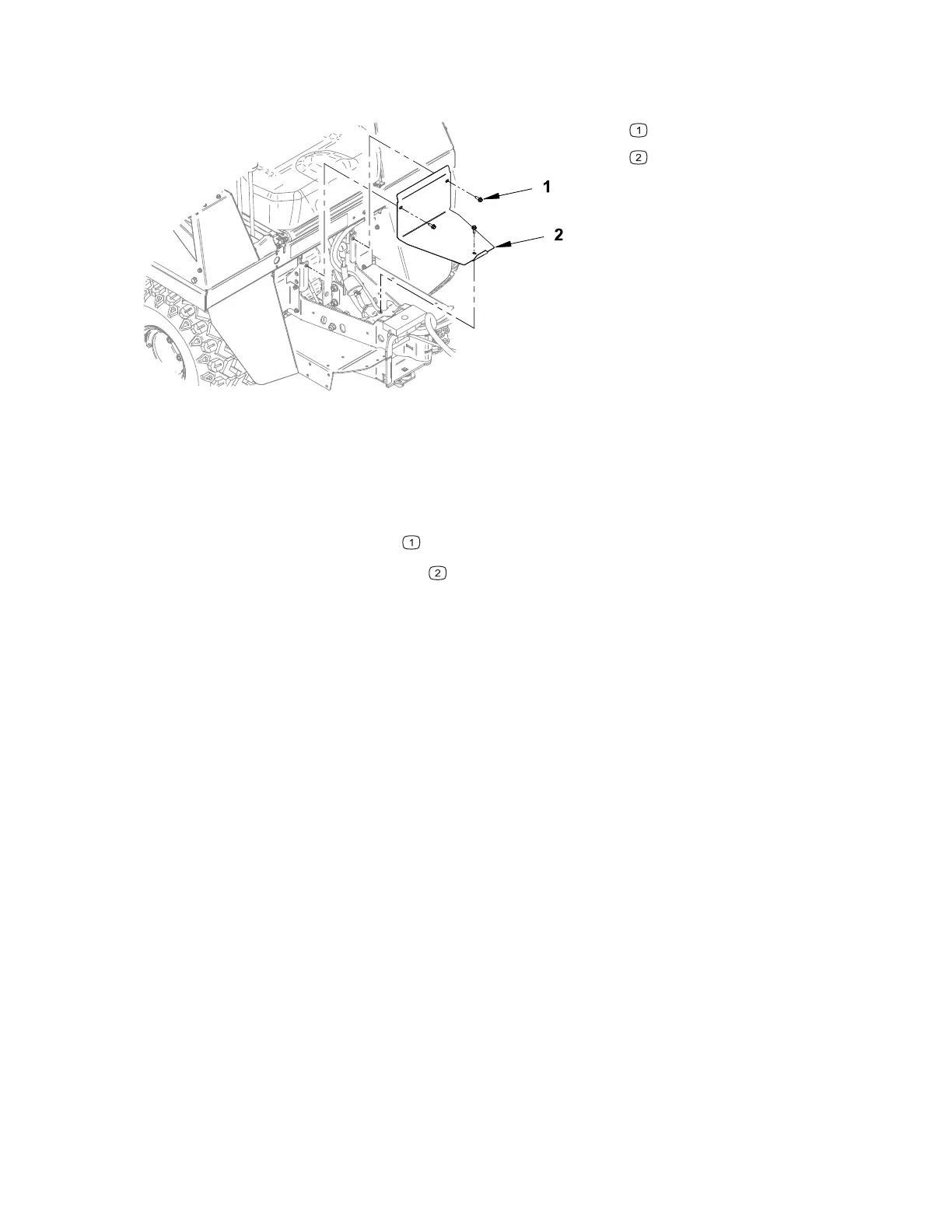

Figure 83
G428717
Flange bolt
Lower frame cover
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Remove the mounting bolts
.
4. Remove the lower frame cover
from the machine.
5. To install the lower frame cover, position the cover on the lower frame aligning the
mounting holes.
6. Install the mounting bolts.
7. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Chassis: Service and Repairs Page 7–18 4520P
