Removing and Installing the Control Panel

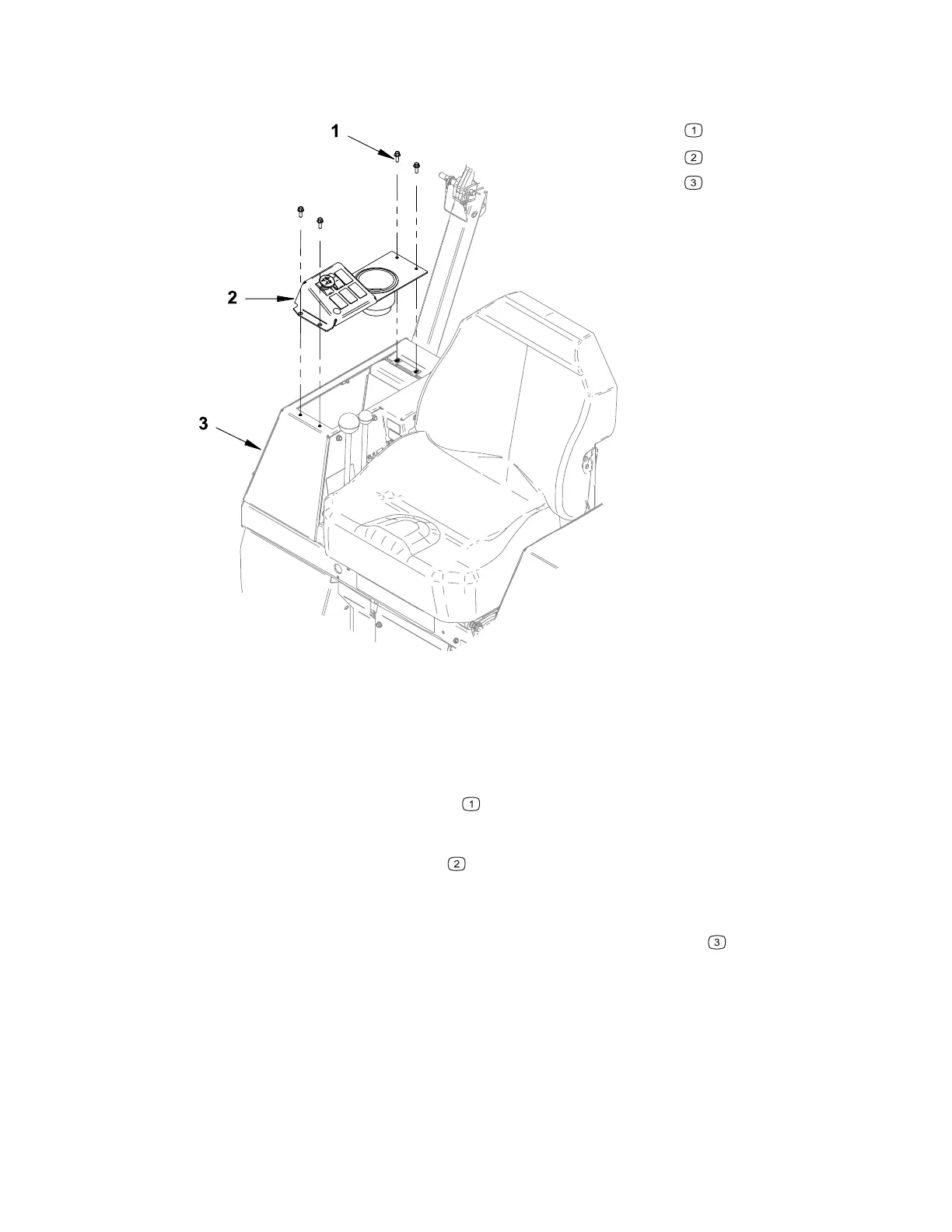

Figure 84
G428856
Flange bolt
Control panel
Hydraulic oil cooler cover
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Remove the mounting bolts
.
4. Label and disconnect all switch connectors from the main wiring harness.
5. Remove the control panel
.
6. To install the control panel, connect all switch connectors to the main wiring
harness.
7. Position the control panel on the hydraulic oil cooler cover
aligning the
mounting holes.
8. Install the mounting bolts.
9. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
4520P Page 7–19 Chassis: Service and Repairs
09.40003Rev 00
