Removing and Installing the Right Rear Seat Box
Panel (continued)
5. Remove the hydraulic cooler fan; refer to Removing and Installing the Hydraulic
Cooler Fan, page 5–29.
6. Remove the mounting bolts
and nuts .
7. Remove the right rear seat box panel
.
8. To install the right rear seat box panel, position the panel on the seat box frame
aligning the mounting holes.
9. Install the mounting bolts.
10. Install the hydraulic cooler fan.
11. Connect the hydraulic cooler fan electrical connector to the main wiring harness.
12. Install the right outer seat box panel.
13. Install the hydraulic cooler top cover.
14. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Removing and Installing the Fuel Tank Top Cover

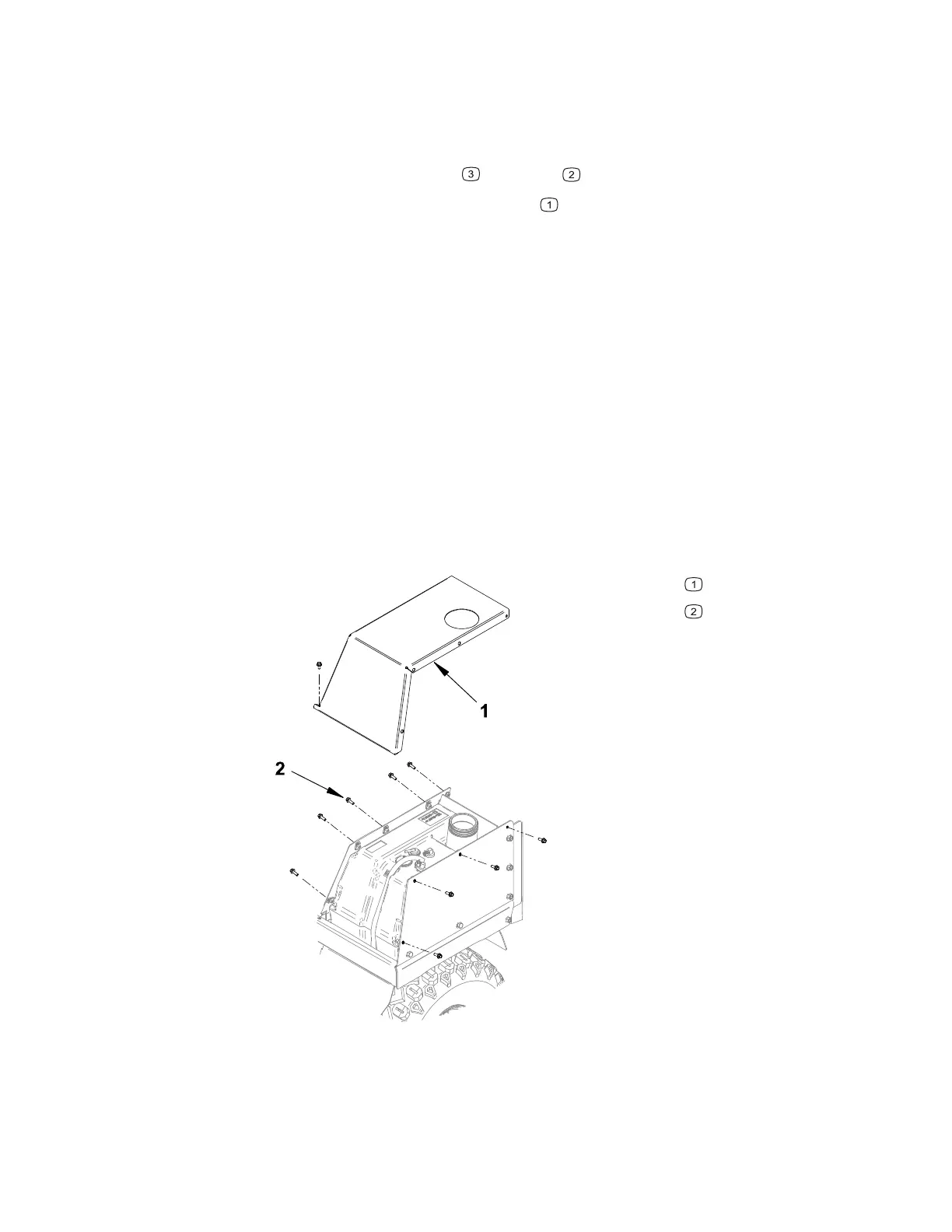

Figure 90
G430377
Top cover
Mounting bolt
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
4520P Page 7–25 Chassis: Service and Repairs
09.40003Rev 00
