Removing and Installing the Fuel Tank Inner Cover
(continued)
6. Install the mounting bolts, washers, and nuts.
7. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Removing and Installing the Left Outer Seat Box
Panel

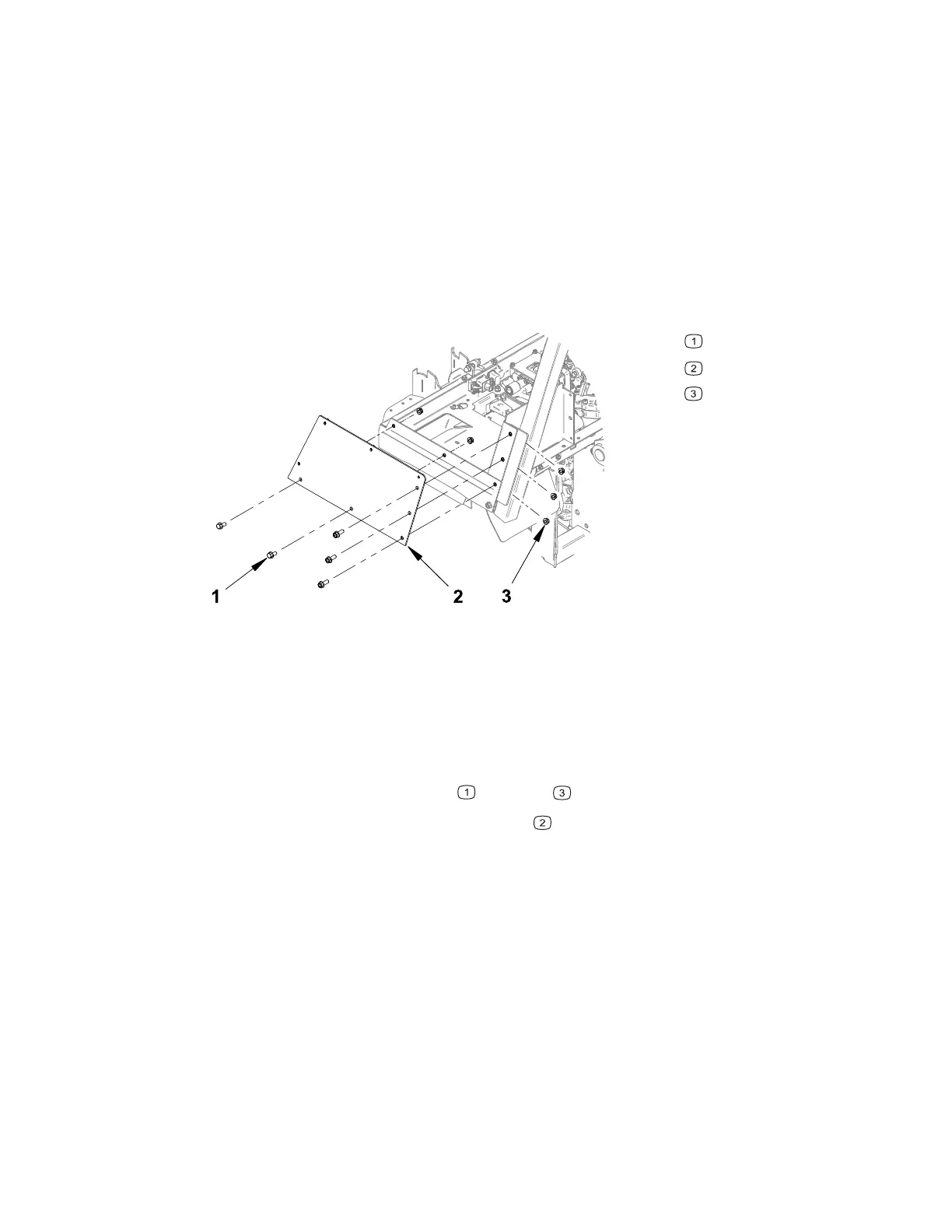

Figure 92
G430658
Mounting bolt
Left outer seat box panel
Nut
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Remove the fuel tank; refer to Removing and Installing the Fuel Tank, page 4–10.
4. Remove the mounting bolts
and nuts .
5. Remove the left outer seat box panel
.
6. To install the left outer seat box panel, position the panel against the seat box
frame aligning the mounting holes.
7. Install the mounting bolts.
8. Install the fuel tank.
9. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
4520P Page 7–27 Chassis: Service and Repairs
