Removing and Installing the Right Outer Seat Box
Panel (continued)
3. Remove the control panel; refer to Removing and Installing the Control Panel,
page 7–19.
4. Remove the mounting bolts
and 4 nuts .
5. Remove the right outer seat box panel from the machine
.
6. To install the right outer seat box panel, position the panel against the seat box
frame and top cover aligning the mounting holes.
7. Install the mounting bolts.
8. Install the control panel.
9. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Removing and Installing the Right Rear Seat Box
Panel

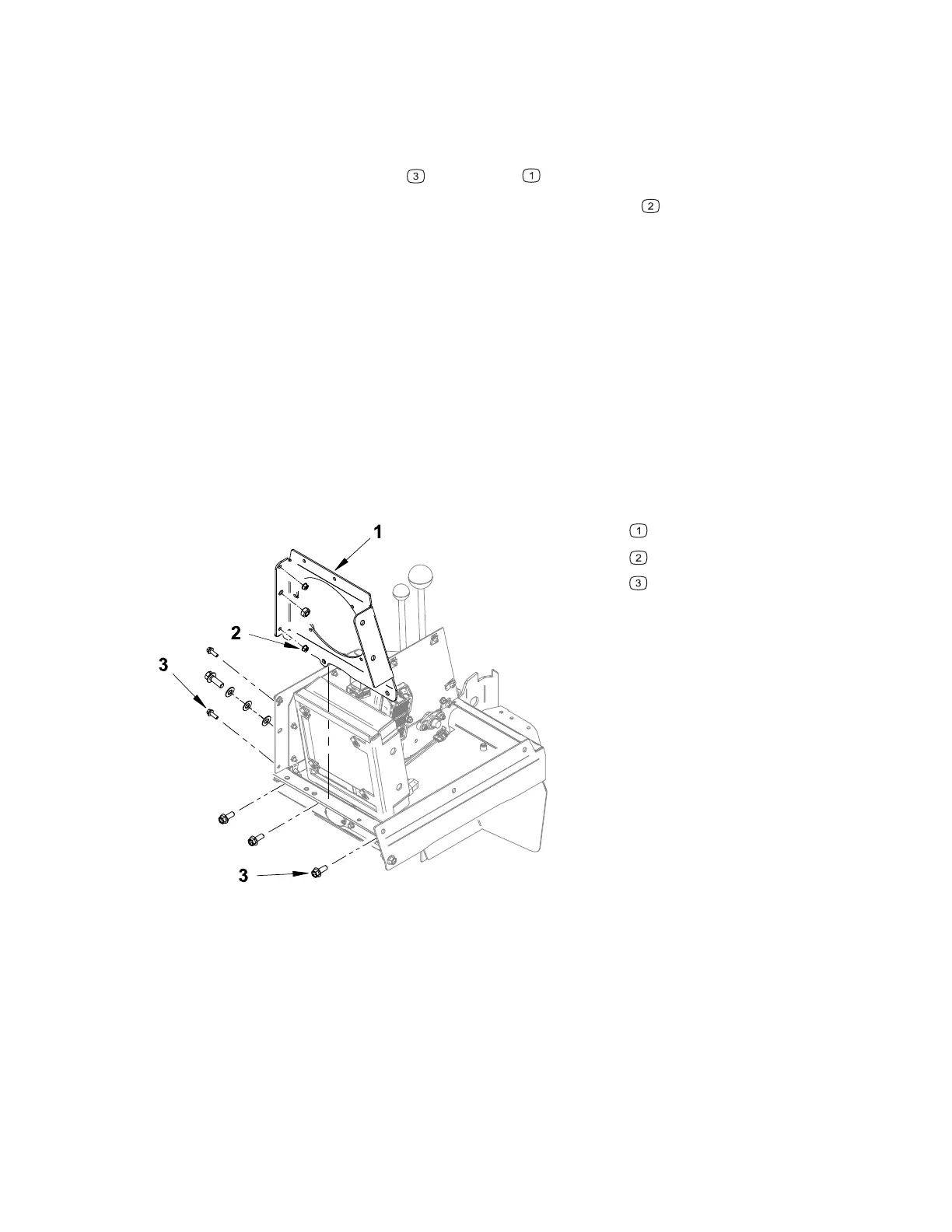

Figure 89
G430264
Rear seat box panel
Nut
Mounting bolts
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Remove the hydraulic cooler top cover; refer to Removing and Installing the
Hydraulic Cooler Top Cover, page 7–20.
4. Remove the right outer seat box panel; refer to Removing and Installing the Right
Outer Seat Box Panel, page 7–23.
Chassis: Service and Repairs Page 7–24 4520P
09.40003Rev 00
