Removing and Installing the TCS

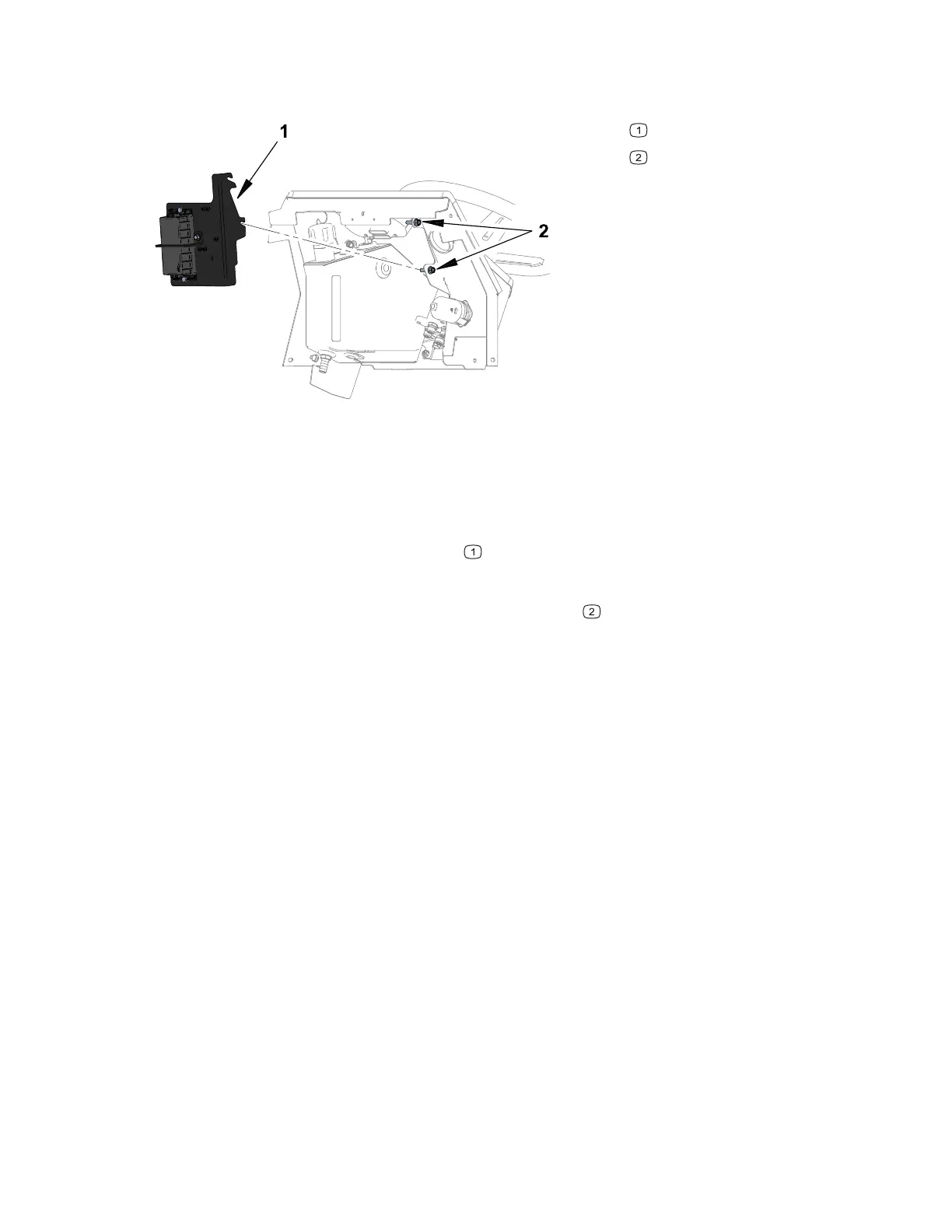

Figure 49
G433085
Tractor control system
Mounting bolts
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Raise the hood and locate the TCS
.
4. Disconnect the wiring harness from the TCS.
5. Loosen the TCS mounting bracket mounting bolts
.
6. Remove the TCS and mounting bracket from the machine.
7. To install the TCS, position the TCS mounting bracket over the mounting bolts.
8. Tighten the mounting bolts.
9. Connect the wiring harness to the TCS.
10. Close and secure the hood.
11. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Electrical System: Tractor Control System (TCS) Page 6–22 4520P
09.40003Rev 00
