12 Volt Front and Rear Socket and Plug
IMPORTANT
This connector (4–pin socket) is designed for use with Ventrac original
equipment only.
This connector (4–pin socket) is rated for 20 amp maximum current draw.
Engine alternator and/or battery capacity determine allowable continuous
draw.

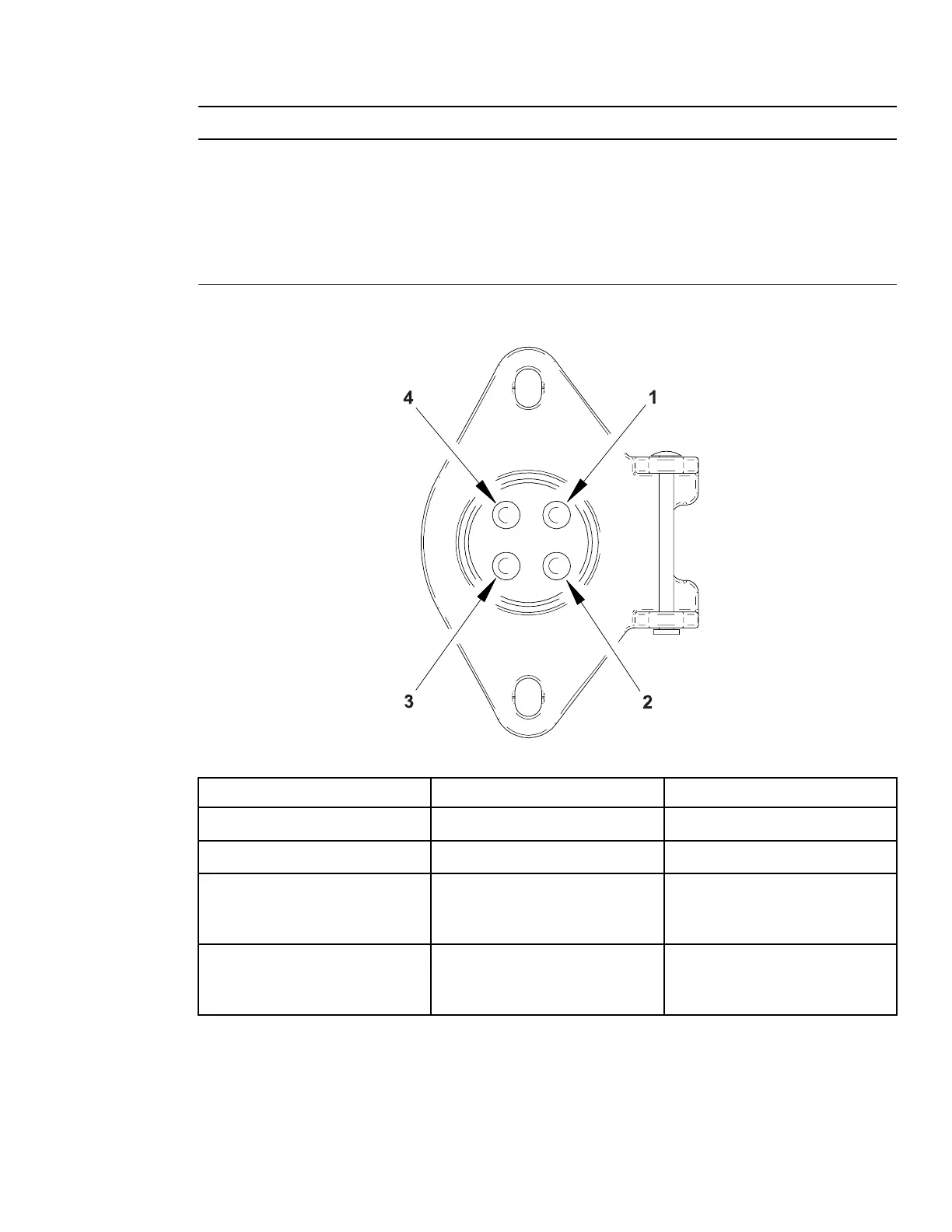

Figure 67
Front View of Socket
G426841
Terminal Position Wire Color Function
1 White Positive (On/Off Switched)
2 Black Negative (Constant)
3 Red Positive/Negative
(Momentary Switched
Reversing)
4 Green or Brown Positive/Negative
(Momentary Switched
Reversing)
4520P Page 6–61 Electrical System: 12 Volt Front and Rear Socket and
Plug
