Raising the Front of the Machine (continued)

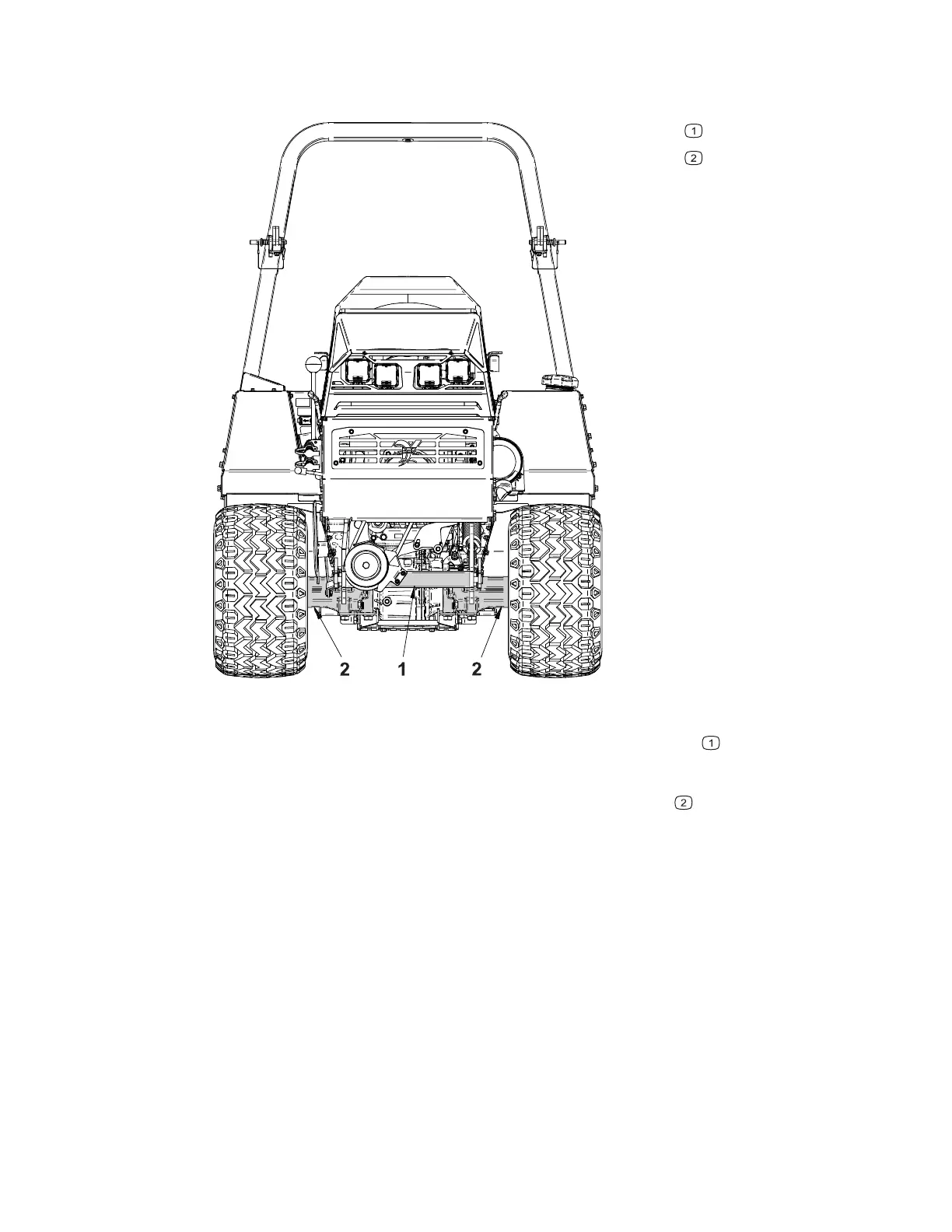

Figure 2
G415138
Hitch Arm Frame Tube
Axle Housing
5. Position the jack securely under the hitch arm frame tube .
6. Lift the front of the machine to the desired height.
7. Position jack stands securely under the axle assembly
.
Note: Removing the front wheels may be required to fit jack stands under the
axle assembly.
8. Lower the machine onto the jack stands and remove the jack.
