Add the third test by double clicking the left mouse button, select ‘LS
Inductance (Series Circuit)’ from the ‘Available Tests’ window.

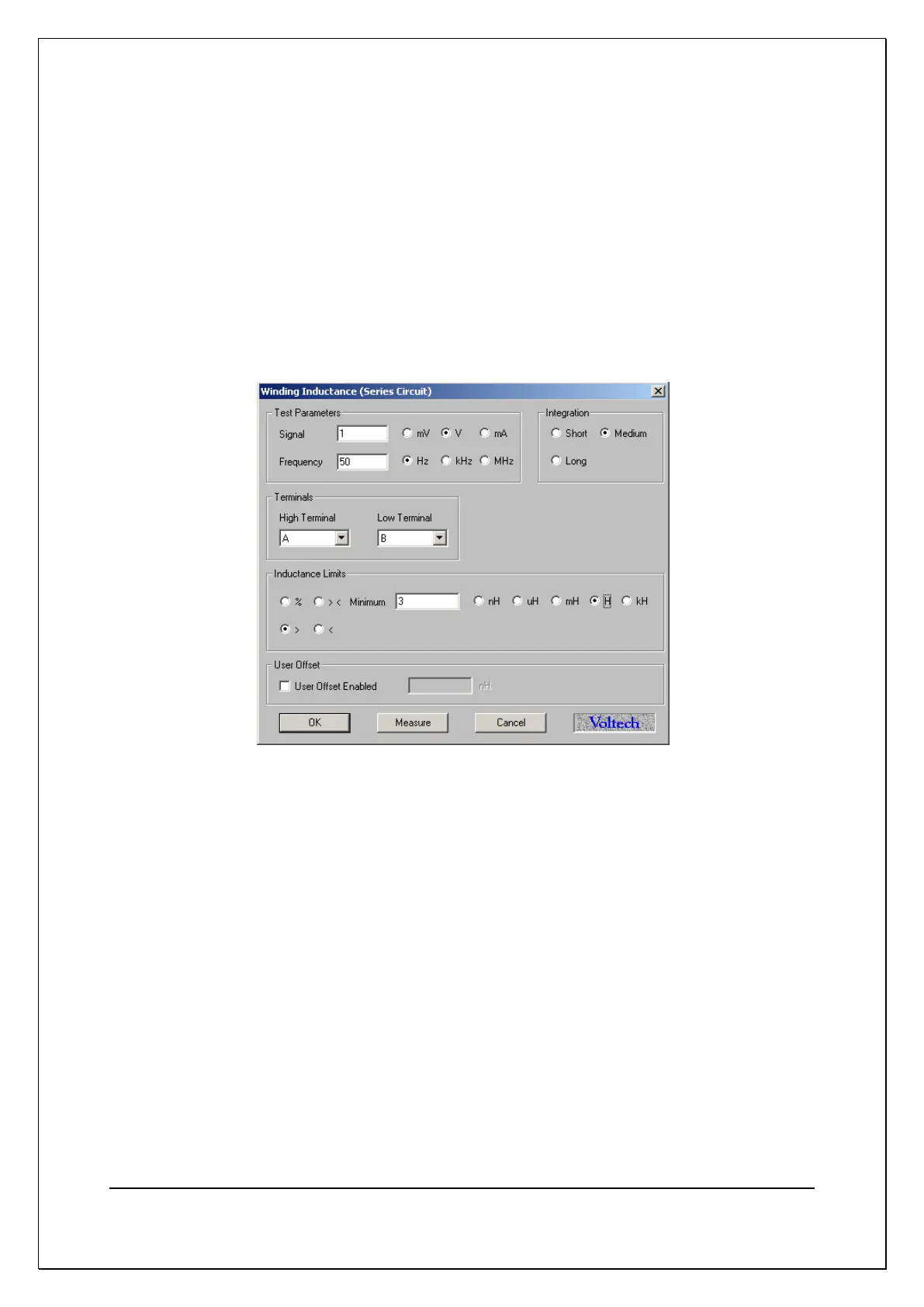

At the dialogue box, enter the data required for the inductance test:
Signal 1V (again choose the V units button by clicking with the mouse)
Frequency 50Hz
Integration (Leave as the default - Medium)
High terminal A
Low terminal B
Click on the ‘>‘ button to select a minimum limit only, and enter:
Minimum 330 uH
Click on the ‘OK’ button. Again, the test and its parameters will appear in the
‘Program’ window.
Finally, add the fourth test by double clicking the left mouse button, select ‘TR
Turns Ratio’ from the ‘Available Tests’ window.
At the dialogue box, enter the data required for the turns ratio test:
Voltage 1 V
Frequency 50 Hz
Integration (Leave as the default - Medium)
