C H A P T E R 5 – G E T T I N G S T A R T E D
AT5600 User Manual 98-119 issue 14 Page 67

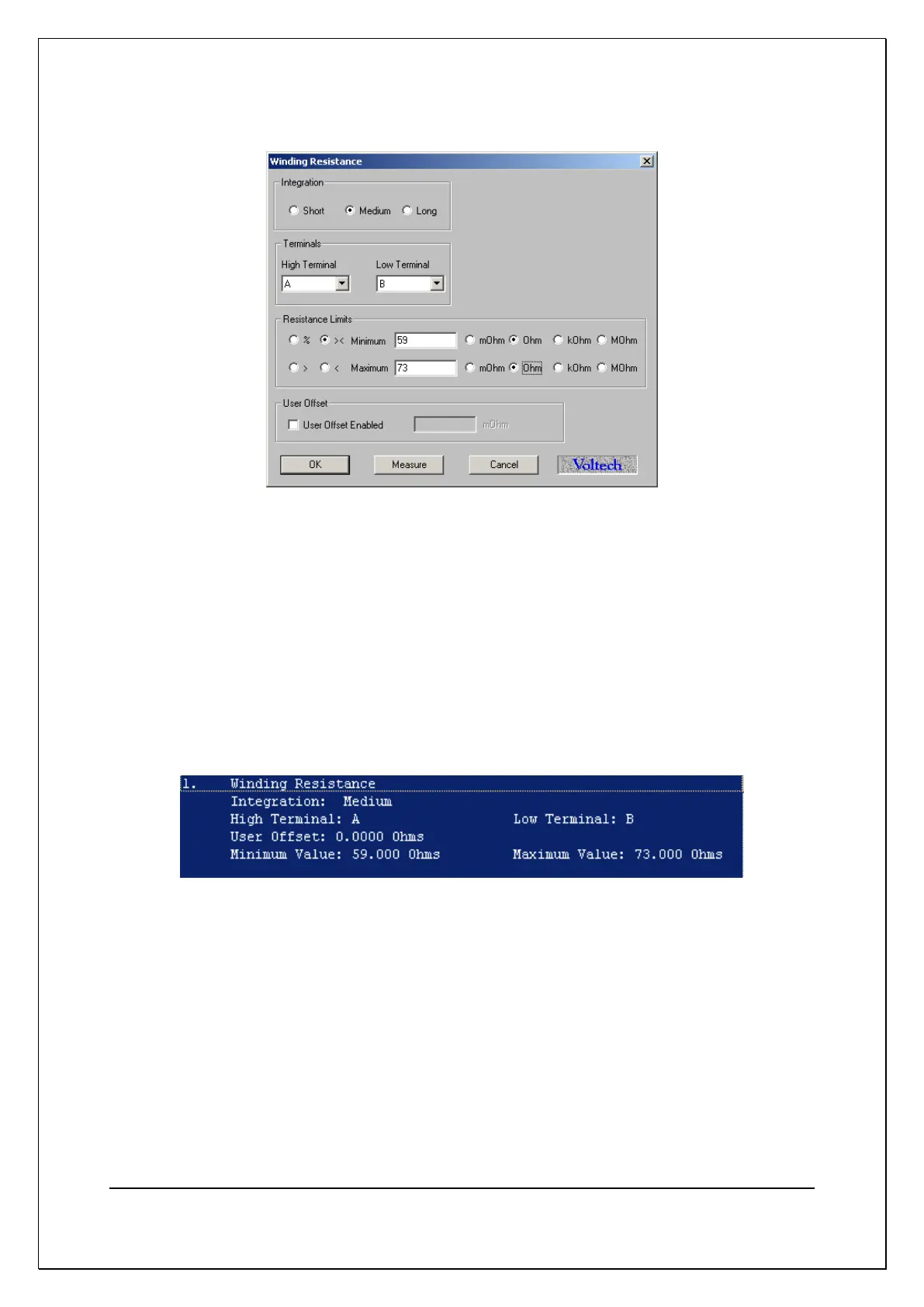

In this example, the >< limits will be used:
(The ‘Ohm’ unit button is selected by clicking the radio button with the
mouse.)
If the "User Offset Enabled" check box is checked, a value can be entered into
the edit box. The value entered (in the units shown) is then added to any
results returned from the AT tester. This function can be used to adjust for
measurement fixture effects that cannot be compensated for or to
compensate the fixture manually, so a compensation stage is not required to
obtain the correct readings.
Click on the ‘OK’ button. The test and its parameters will now appear in the
‘Program’ window.
Add the second test by double clicking the left mouse button, select ‘R
Winding Resistance’ from the ‘Available Tests’ window.
At the dialogue box, enter the data as before; this time for the second winding:
Integration (Leave as the default - Medium)
High terminal C
Low terminal D
Minimum 20 m
Maximum 171 m
Click on the ‘OK’ button. Again, the test and its parameters will appear in the
‘Program’ window.
