System Outline
Service Manual 5-5

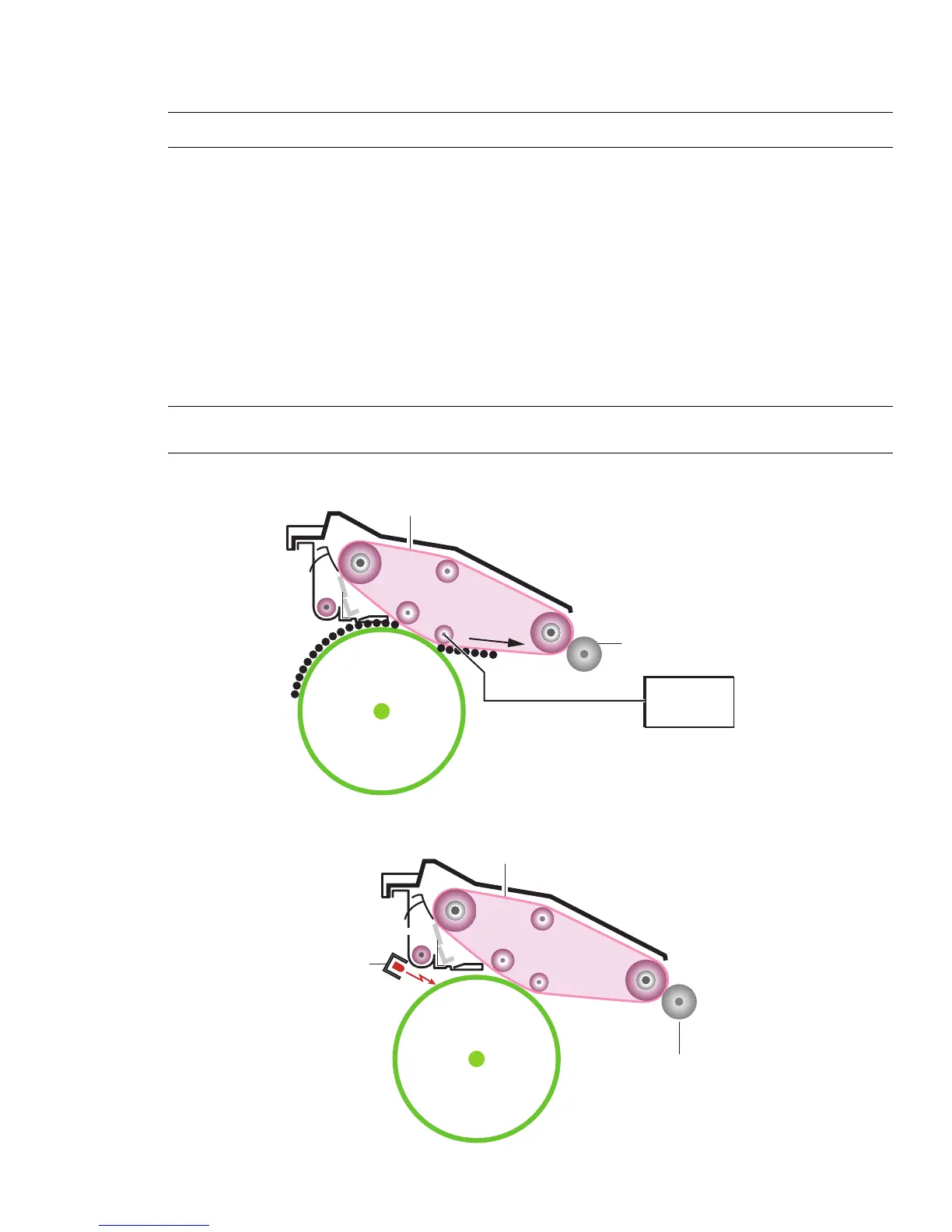

1. Primary Transfer (T1)
3. PTL (Pre-Transfer Lamp)
5. Transfer Roller (T2) The transfer roller transfer the final toner image from the transfer belt to
the paper.
The HVPS applies the image transfer bias voltage to the transfer
roller allowing transfer of the image from the belt onto the paper.
When the image is to be transferred from the transfer belt to the
paper, the transfer roller pressure contact solenoid is activated and
this activates a cam which moves the transfer roller into contact with
the belt.
After the transfer has taken place, any remaining charge on the paper
is removed by applying a charge removal bias (generated in the
HVPS) to a detack saw.
Transfer method: Semi-conductive roller contact method
Effective transferring range: 218 mm (i.e. maximum image length)
6. Transfer Belt Home
Sensor
This sensor is used to ensure each color of toner is placed on the
transfer belt at the exactly the same location.
No. Name Description
DUPLEX
OPC DRUM
Primary Image Transfer Bias
Image Transfer Belt
Image Transfer Rolle
r
HVPS
DUPLEX
OPC DRUM
(LED)
PTL
Image Transfer Belt
Image Transfer Rolle
r
