Xerox Phaser 6100

System Outline
5-6

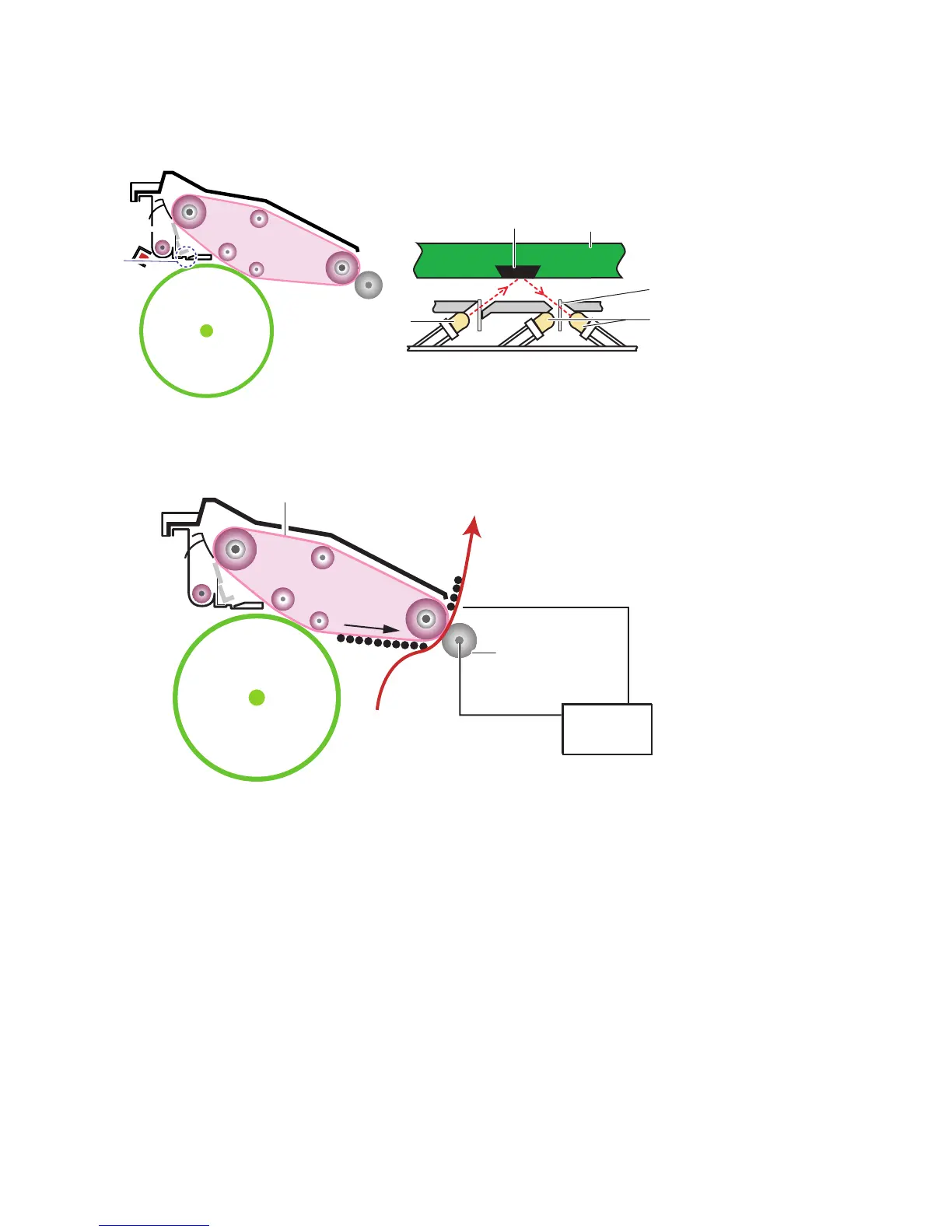

4. CTD Sensor
5) Secondary Image Transfer, Transfer Roller (T2)
OPC DRUM
Transfer Unit
CTD Sensor
OPC Drum
LED
PBS (Polarized Beam Splitter)
PD (Photo Diode)
TONER
OPC DRUM
Paper
Image Transfer Bias
Charge Removal Bias
Image Transfer Belt
Image Transfer Roller
HVPS
