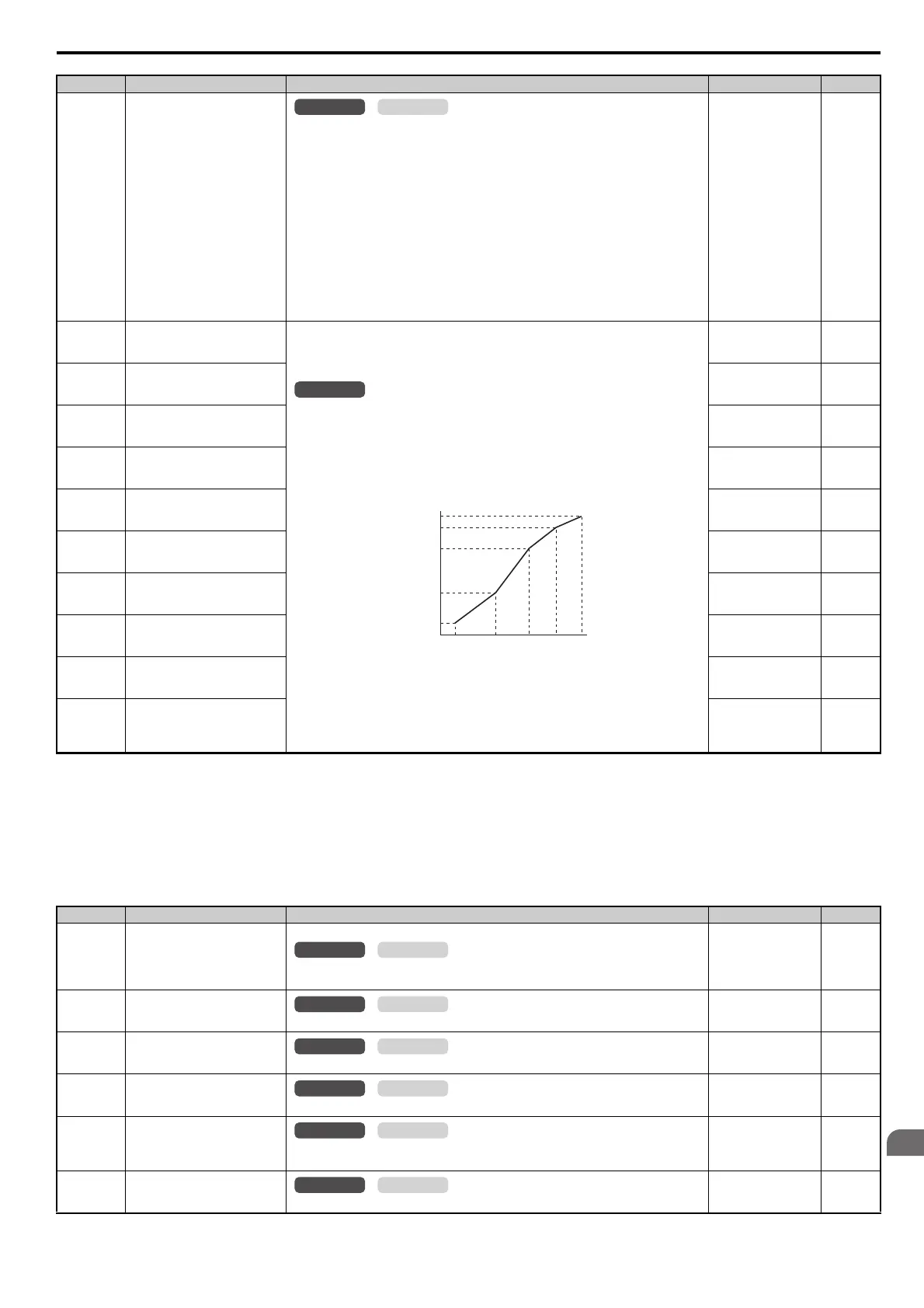

B.3 Parameter Table
Parameter List
B
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 369
■ E2: Motor Parameters
E1-03
(302H)
V/f Pattern Selection
0: 50 Hz, Constant torque 1
1: 60 Hz, Constant torque 2
2: 60 Hz, Constant torque 3 (50 Hz base)
3: 72 Hz, Constant torque 4 (60 Hz base)
4: 50 Hz, Variable torque 1
5: 50 Hz, Variable torque 2
6: 60 Hz, Variable torque 3
7: 60 Hz, Variable torque 4
8: 50 Hz, High starting torque 1
9: 50 Hz, High starting torque 2
A: 60 Hz, High starting torque 3
B: 60 Hz, High starting torque 4
C: 90 Hz (60 Hz base)
D: 120 Hz (60 Hz base)
E: 180 Hz (60 Hz base)
F: Custom V/f, E1-04 through E1-13 settings define the V/f pattern
Default: F
<3>
Min: 0
Max: F
170
E1-04
(303H)
Maximum Output Frequency
These parameters are only applicable when E1-03 is set to F.
To set linear V/f characteristics, set the same values for E1-07 and E1-09. In this case, the
setting for E1-08 will be disregarded. Ensure that the four frequencies are set according to these
rules:
E1-09 ≤ E1-07 < E1-06 ≤ Ε1−11 ≤ E1-04
Note that if E1-11 = 0, then both E1-11 and E1-12 are disabled, and the above conditions do not
apply.
Note: Some parameters may not be available depending on the control mode.
• E1-07, E1-08 and E-10 are available only in the following control modes: V/f Control.
• E1-11, E1-12 and E-13 are available only in the following control modes: V/f Control.
Default:
<4> <14>
Min: 40.0
Max: 200.0
174
E1-05
(304H)
Maximum Voltage
Default:
<4> <14> <18>
Min: 0.00 V
Max: 255.0 V
<18>
174
E1-06
(305H)
Base Frequency
Default:
<4> <14>
Min: 0.0
Max: E1-04
174
E1-07
(306H)
Middle Output Frequency
Default:
<4>
Min: 0.0
Max: E1-04
174
E1-08
(307H)
Middle Output Frequency Voltage
Default:
<4> <18>
Min: 0.0 V
Max: 255.0 V
<18>
174
E1-09
(308H)
Minimum Output Frequency
Default:
<4> <14>
Min: 0.0
Max: E1-04
174
E1-10
(309H)
Minimum Output Frequency
Vo l t a g e
Default:
<4> <18>
Min: 0.0 V
Max: 255.0 V
<18>
174
E1-11
(30AH)
<21>
Middle Output Frequency 2
Default: 0.0 Hz
Min: 0.0 Hz
Max: E1-04
174
E1-12
(30BH)
<21>
Middle Output Frequency Voltage
2
Default: 0.0 V
Min: 0.0 V
Max: 255.0 V
<18>
174
E1-13
(30CH)
Base Voltage
Default: 0.0 V
<18> <27>
Min: 0.0 V
Max: 255.0 V
<18>
174
<3> Parameter setting value is not reset to the default value when the drive is initialized.
<4> Default setting is dependent on the control mode (A1-02), the drive model (o2-04).
<14> Default setting value is dependent on the motor code set to E5-01.
<18> Values shown here are for 200 V class drives. Double the value when using a 400 V class drive.
<21> Parameter ignored when E1-11 (Motor 1 Mid Output Frequency 2) and E1-12 (Motor 1 Mid Output Frequency Voltage 2) are set to 0.0.
<27> When Auto-Tuning is performed, E1-13 and E1-05 will be set to the same value.
<29> The setting range varies according to the motor code entered to E5-01 when using OLV/PM.
No.(Addr.) Name Description Setting Page
E2-01
(30EH)
Motor Rated Current
Sets the motor nameplate full load current in Amps. Automatically set during Auto-Tuning.
Default:
<9>
Min: 10% of drive rated
current
Max: 200% of drive
rated current
<19>
174
E2-02
(30FH)
Motor Rated Slip
Sets the motor rated slip. Automatically set during Auto-Tuning.
Default:
<9>
Min: 0.00 Hz
Max: 20.00 Hz
175
E2-03
(310H)
Motor No-Load Current
Sets the no-load current for the motor. Automatically set during Auto-Tuning.
Default:
<9>
Min: 0 A
Max: E2-01
<19>
175
E2-04
(311H)
Number of Motor Poles
Sets the number of motor poles. Automatically set during Auto-Tuning.
Default: 4
Min: 2
Max: 48
175
E2-05
(312H)
Motor Line-to-Line Resistance
Sets the phase-to-phase motor resistance. Automatically set during Auto-Tuning.
Note: The units are expressed in mΩ in models CIMR-E4A0930 and 4A1200.
Default:
<9>
Min: 0.000 Ω
Max: 65.000 Ω
175
E2-10
(317H)
Motor Iron Loss for Torque
Compensation
Sets the motor iron loss.
Default: <9>
Min: 0 W
Max: 65535 W
175
No.(Addr.) Name Description Setting Page
OLV/PMV/f
common_
TMonly
All Modes
common_
TMonly
Output Voltage (V)
Frequency (Hz)
E1-05
E1-12
E1-13
E1-08
E1-10
E1-09 E1-07 E1-06 E1-11 E1-04
OLV/PMV/f
common_
TMonly
OLV/PMV/f
common_
TMonly
OLV/PMV/f
common_
TMonly
OLV/PMV/f
common_
TMonly
OLV/PMV/f
common_
TMonly
OLV/PMV/f
common_
TMonly
SIEP_C710616_35.book 369 ページ ２０１５年１１月３０日 月曜日 午後２時２分
