3. Cabling
3-26
TI 33J01J10-01EN

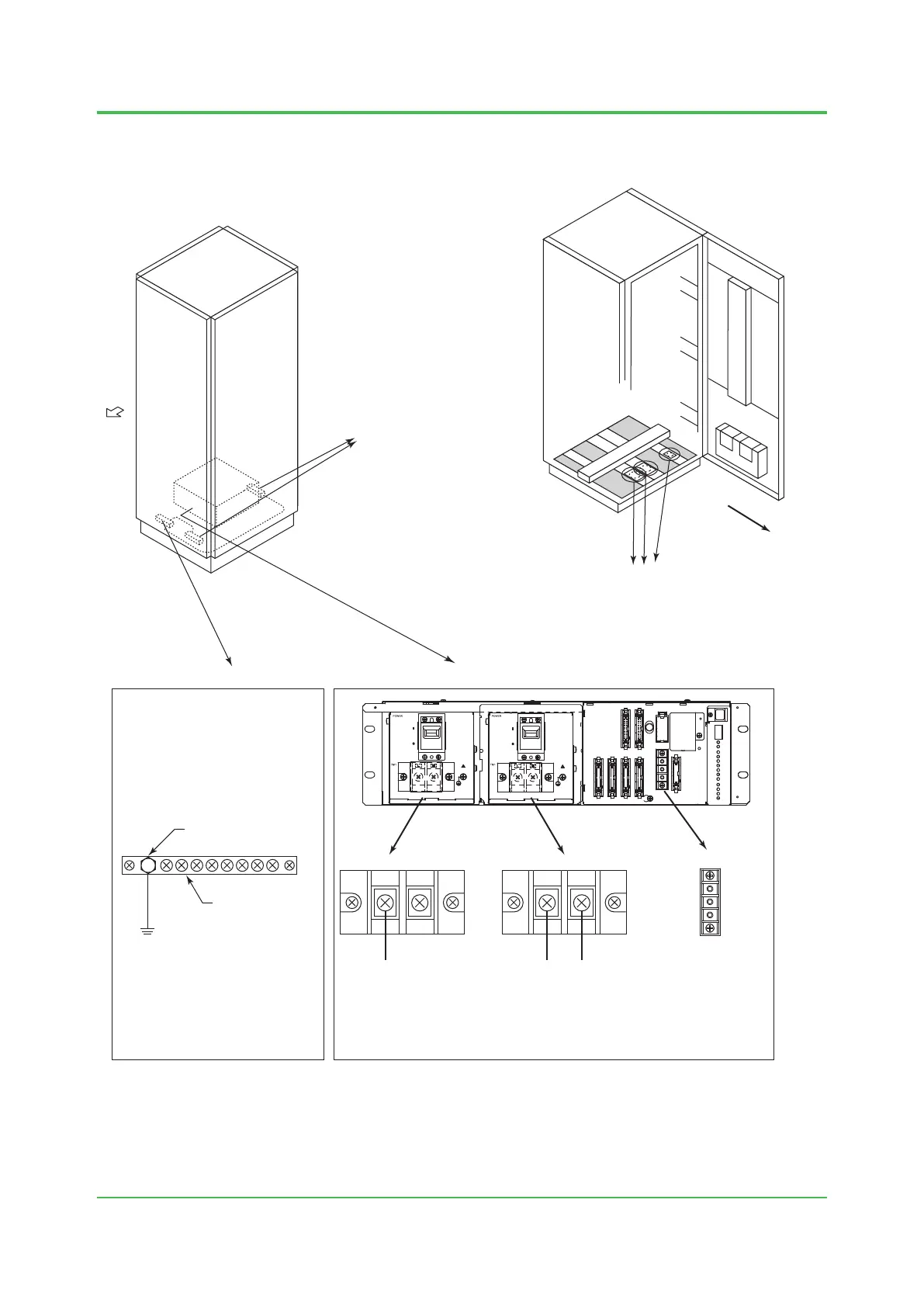

n AFV40S/AFV40D Field Control Unit (with Cabinet), ACB51 I/O
Expansion Cabinet
Front
Grounding conductor
connection grounding bar
(electrically conected to the frame)
Power distribution
board
(Dual power
connection)
Power supply
(Terminal screw: M6)
Power supply
(Terminal screw: M6)
READY output
(Terminal screw: M4)
Dual power connection is available
only for duplexed FCSs (with cabinet) or ACB51.
TM1
L N N
TM1
L
NO
NC
C
READY
F030410.ai
Grounding bar for
function grounding
(isolated from frame).
By removing the cable between
grounding bar of the grounding
conductor connection, it can be
used isolated from the frame.
Grounding conductor connection
Power cable connection/ Status contact output connection
Ground terminal:
M8 hex bolt
Terminals:
M5 screw
Protective grounding
system
Front
Wire from the wiring holes right
underneath the power supply
or contact connection terminals
(remove the square plates for conduit holes)
Oct.5, 2018-00
