3. Cabling
3-35
TI 33J01J10-01EN

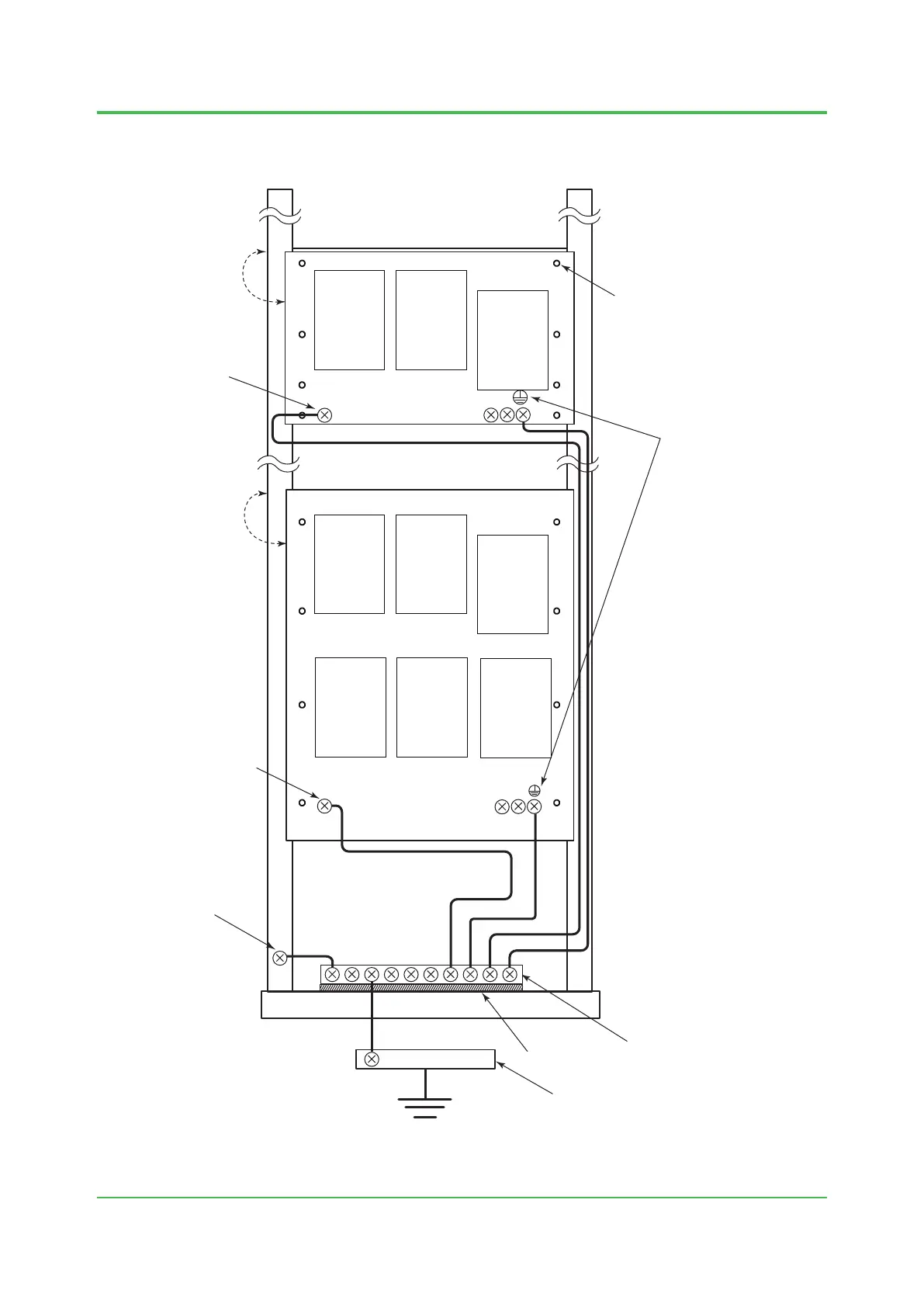

An example of wiring when A2NN10D is mounted to a general-purp cabinet in the following:
A2NN10D-2
A2NN10D-5
F030423.ai
A general-purpose cabinet
Insulating bushing
AC Power Source :
Protective grounding bar
DC Power Source :
Functional grounding terminal
Functional
grounding terminal
Functional grounding
terminal
Functional grounding bar
Cabinet ground
Insulating sheet
Ground bus inlet
Separate and isolate
the rack frame and
mounted device using
an isolation bush
Separate and isolate
the rack frame and
mounted device using
an isolation bush
Oct.5, 2018-00
