3. Cabling
3-100
TI 33J01J10-01EN

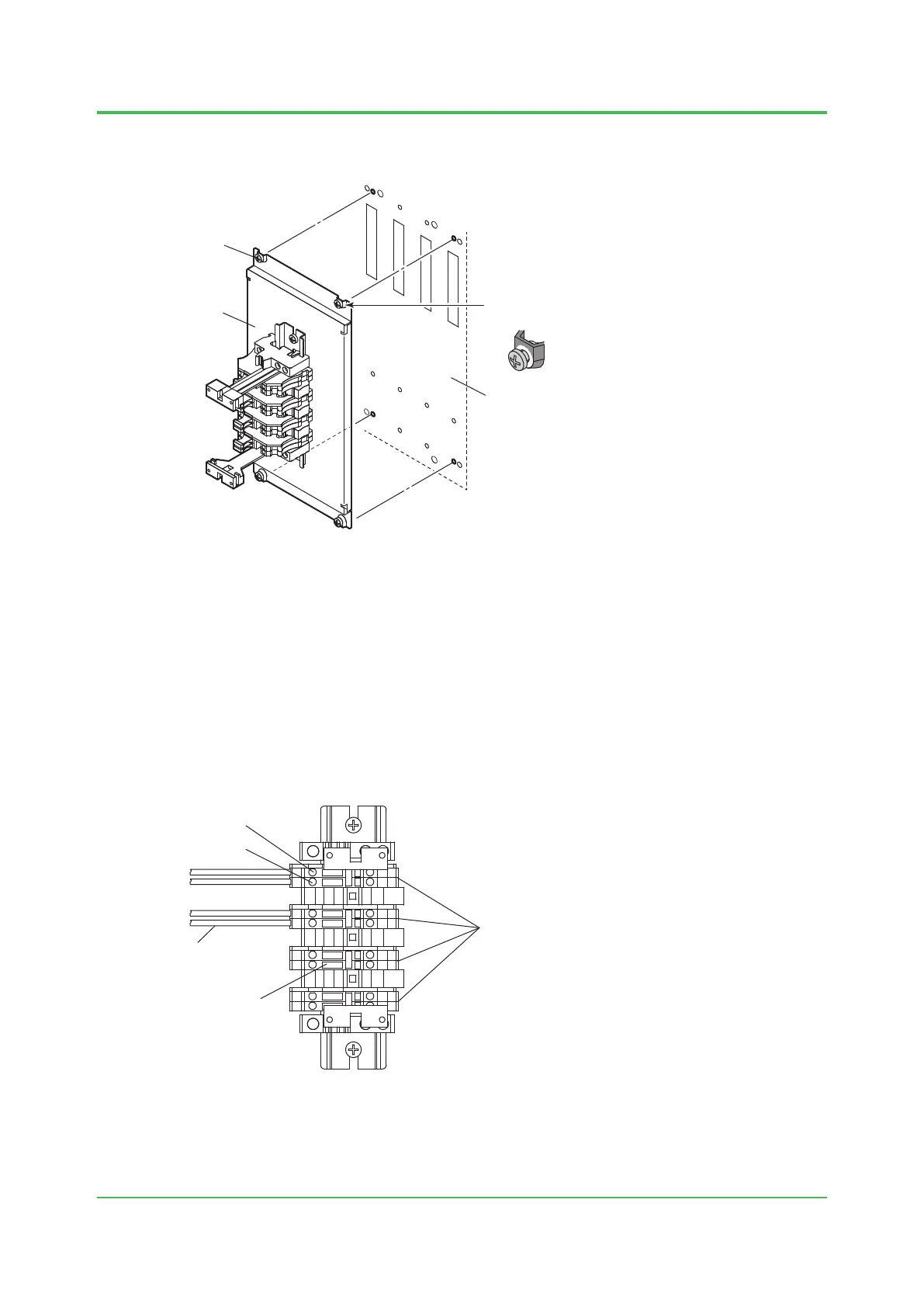

Installing the shunt resistor unit

F030833.ai
M3 screw
Plate
Node interface unit
Uncoated location
(around the screw hole)
Figure Installing the shunt resistor unit
Install the shunt resistor unit onto the node interface unit securely by tightening the four M3
screws.
Wiring for the shunt resistor unit


for connection to the shunt resistor unit and a ring terminal for M4 screw at the other and for

Connect the cables to the shunt resistor unit for the required number of signals.

F030834.ai
Slot
Cable
Terminal A
Terminal B
Do not connect cables to
the terminals on this side.
Figure Cable connections to the shunt resistor unit
Oct. 5, 2018-00
