Bluetooth Communications

11. Run the PC Tool application.

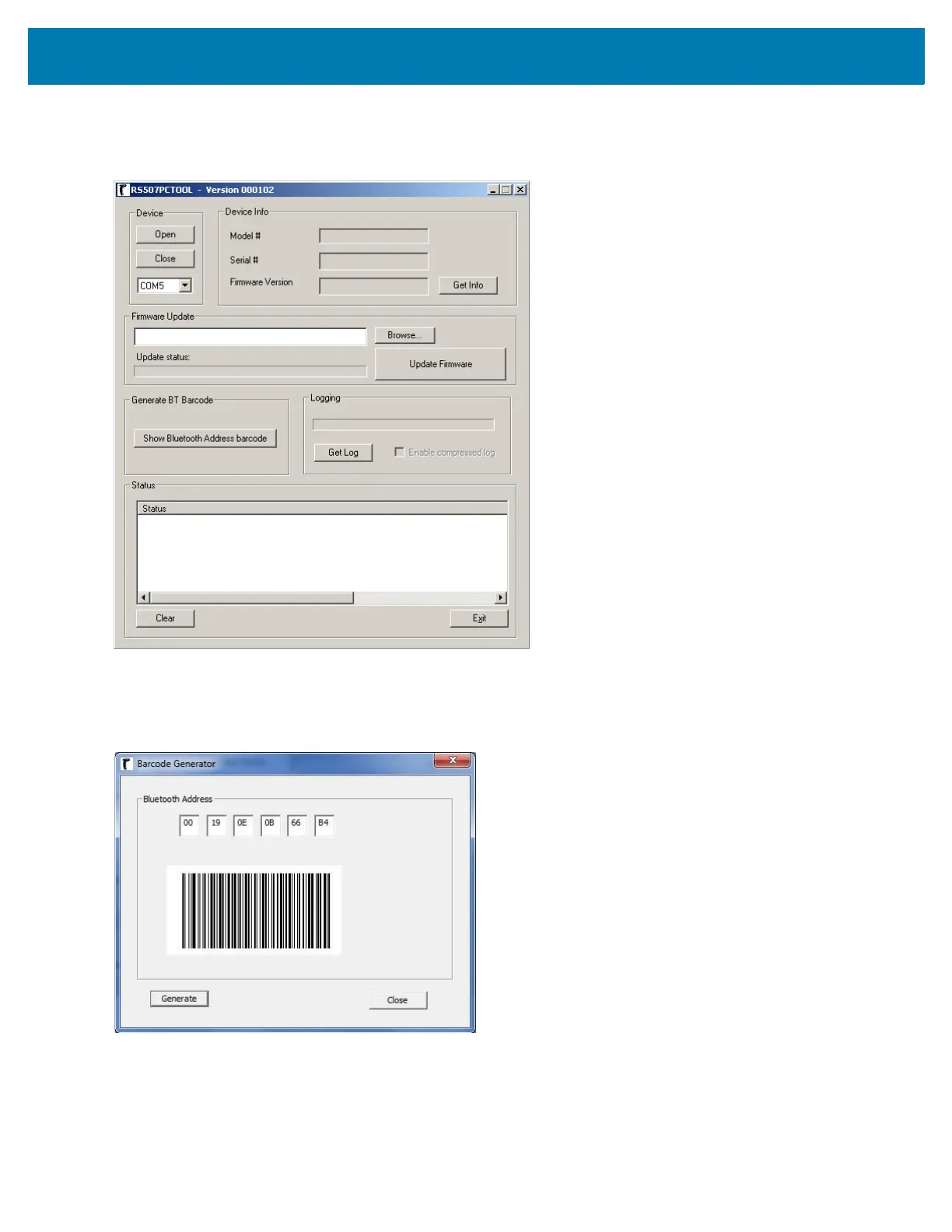

Figure 20 SPP - PC Tool application

12. Click the Show Bluetooth Address barcode button.

13. Manually enter the BD address to the PC Tool application and click the Generate button.

Figure 21 SPP - PC Tool Application - Bar Code Generator

14. Click Close.
