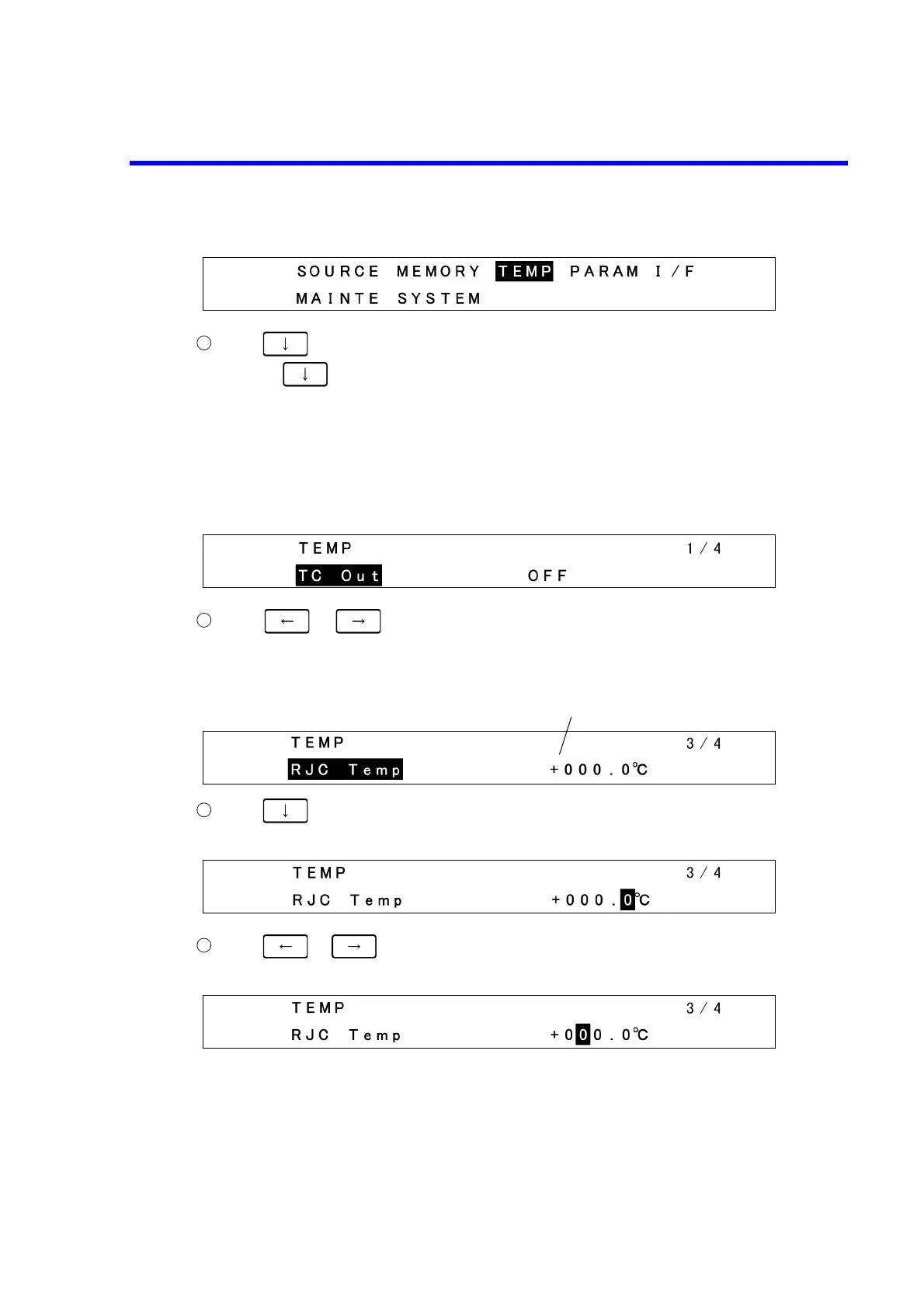

3.9.3 Menu Operation Example (Parameter to Be Input)
3-62
Example display Category level
Press .
Pressing moves to the parameter select level in the TEMP category.
There are the following parameters in the TEMP category.
TC Out : Enables or disables thermal electromotive force output.
TC Types : Selects the type of thermocouple.
RJC Temp : Sets the reference junction temperature.
JIS Standard : Sets the JIS standard C1602.
Example display Menu screen: Category level
Press or to select RJC Temp in the category. The parameters can be selected by
using the rotary knob.
The highlight section switches as TC Out  TC Types  RJC Temp  JIS Standard.
Press to move to the Input/Run level of the RJC Temp parameter.
Example display Menu screen: Input/Run level
Press or to a digit to be changed.
Example display Menu screen: Input/Run level
3
4
Shows that the reference junction temperature is set to 0C.
Example display Menu screen: Select level
5
6
