6166 DC Voltage Current Source Operation Manual

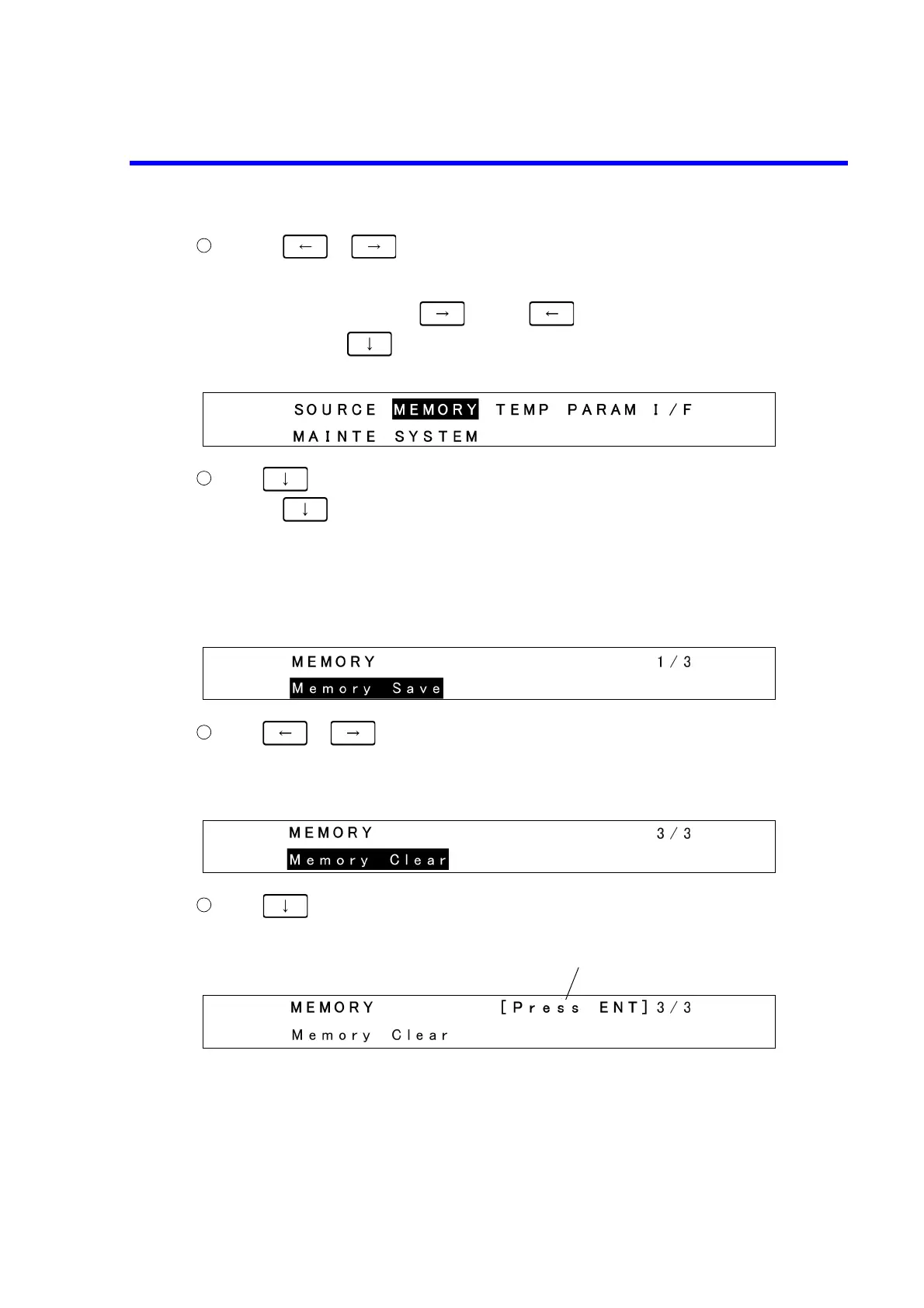

3.9.4 Menu Operation Example (Parameter to Be Run)
3-65
Pressing or moves the cursor (highlight) and selects the categories.
The categories can be selected by using the rotary knob.
Move the cursor to MEMORY.
To move to MEMORY, press once or six times.
Note that pressing here moves to the Select level of each category.
Example display Category level
Press .
Pressing moves to the parameter select level in the MEMORY category.
There are the following parameters in the MEMORY category.
Memory Save : Saves the program memory to the non-volatile memory.
Memory Load : Loads the program memory from the non-volatile memory.
Memory Clear : Clears the program memory in the non-volatile memory.
Example display Menu screen: Category level
Press or to select Memory Clear in the category. The parameters can be selected by
using the rotary knob.
The highlight section switches as Memory Save  Memory Load  Memory Clear.
Example display Menu screen: Category level
Press to move to the Input/Run level of the Memory Clear parameter.
2
3
4
5
Shows that pressing [ENTER] runs the parameter.
Example display Menu screen: Input/Run level
