3.10.1 Setting Thermal Electromotive Force Function
3-68
Operating procedure
Press . The menu screen appears.
The MENU key lights up during menu screen display.

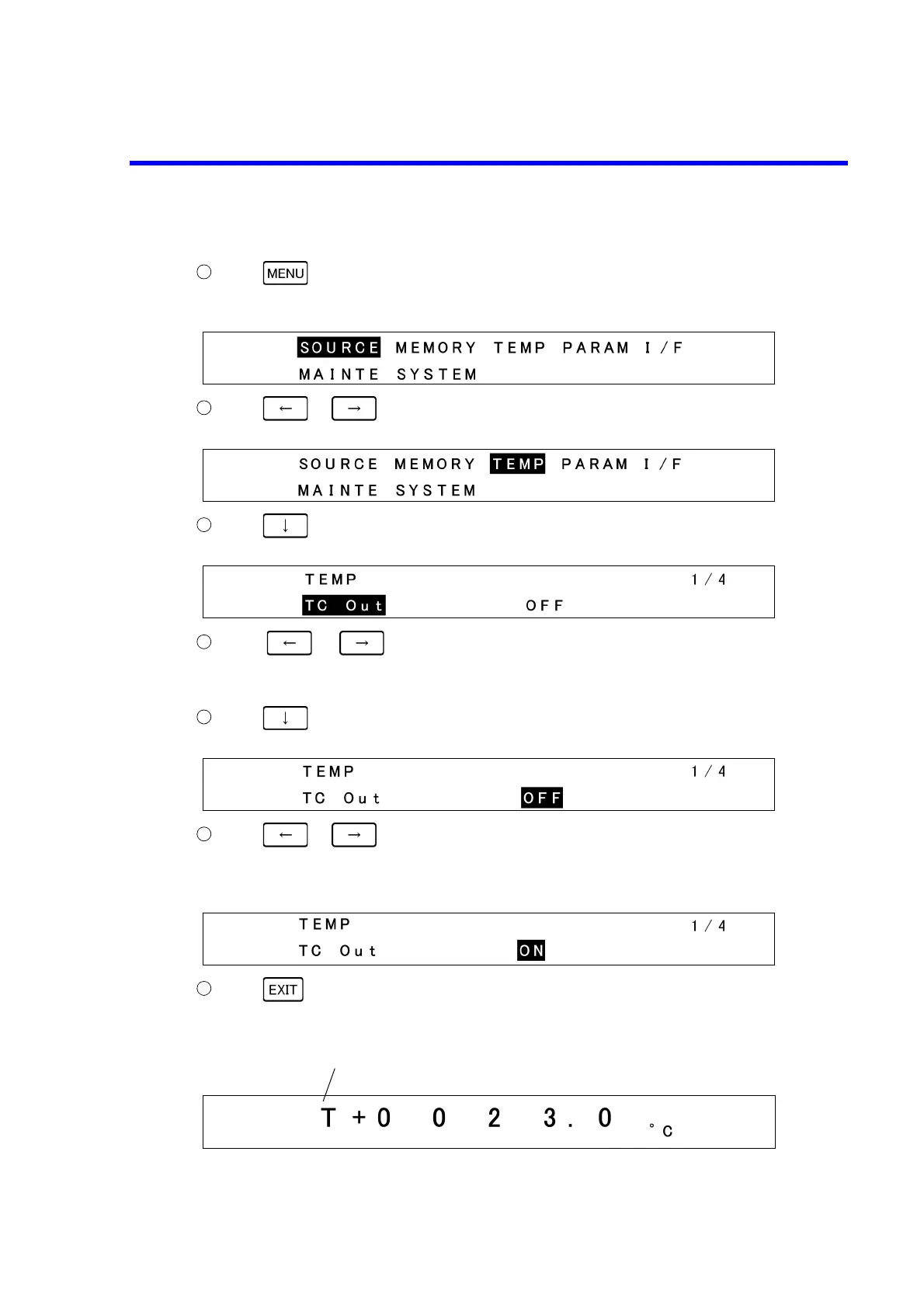

Example display
Press or to select TEMP.
Example display
Press to move the Select level.
Example display
Press or to select TC Out.
The highlight section switches as TC Out  TC Types  RJC Temp  JIS Standard.
TC Out is the parameter displayed first. Thus, TC Out does not need to be selected here.
Press to move to the Input/Run level.
Example display
Press or to select ON.
The highlight section switches as OFF  ON .
When ON is selected, the thermal electromotive force function is enabled.
Example display
Press to exit the menu screen.
The source value screen is returned, and a temperature value is displayed as source value.
1
2
3
4
5
6
7
Example display
Shows that the type of thermocouple is set to T.
