6166 DC Voltage Current Source Operation Manual
3.10.1 Setting Thermal Electromotive Force Function
3-69

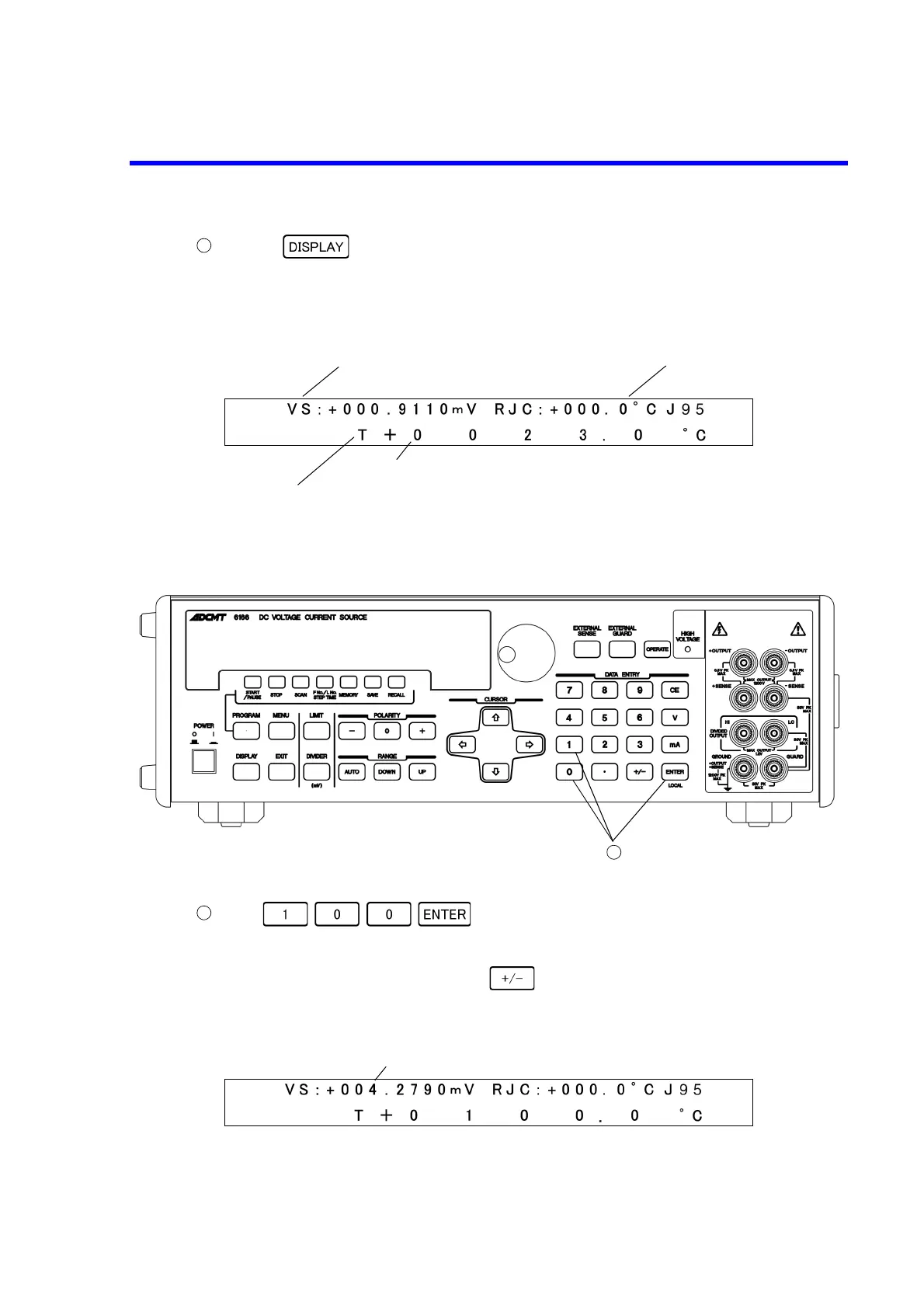

Pressing switches the screen to 2-line display.
In the following example display, a voltage equivalent to the thermal electromotive force against the
set temperature and the temperature of the reference junction are displayed.
The temperature for generating the thermal electromotive force can be set on the source value screen by
using the numeric keypad or rotary knob as the voltage source value or current source value.
The following shows the procedure of setting the temperature to +100C with the numeric keypad.
Operating procedure
Press to set to 100C.
• The unit does not need to be input.
• To set the polarity to negative, press while entering the numeric value.
8
Example display
Indicates the thermal electromotive force against the set temperature.
Changing the temperature changes this display too.
This value cannot be changed directly.
Reference junction temperature
Shows that the type of thermocouple is set to T.
Temperature source value
1
1
Example display2-line display
Indicates the thermal electromotive force at 100C.
