6166 DC Voltage Current Source Operation Manual

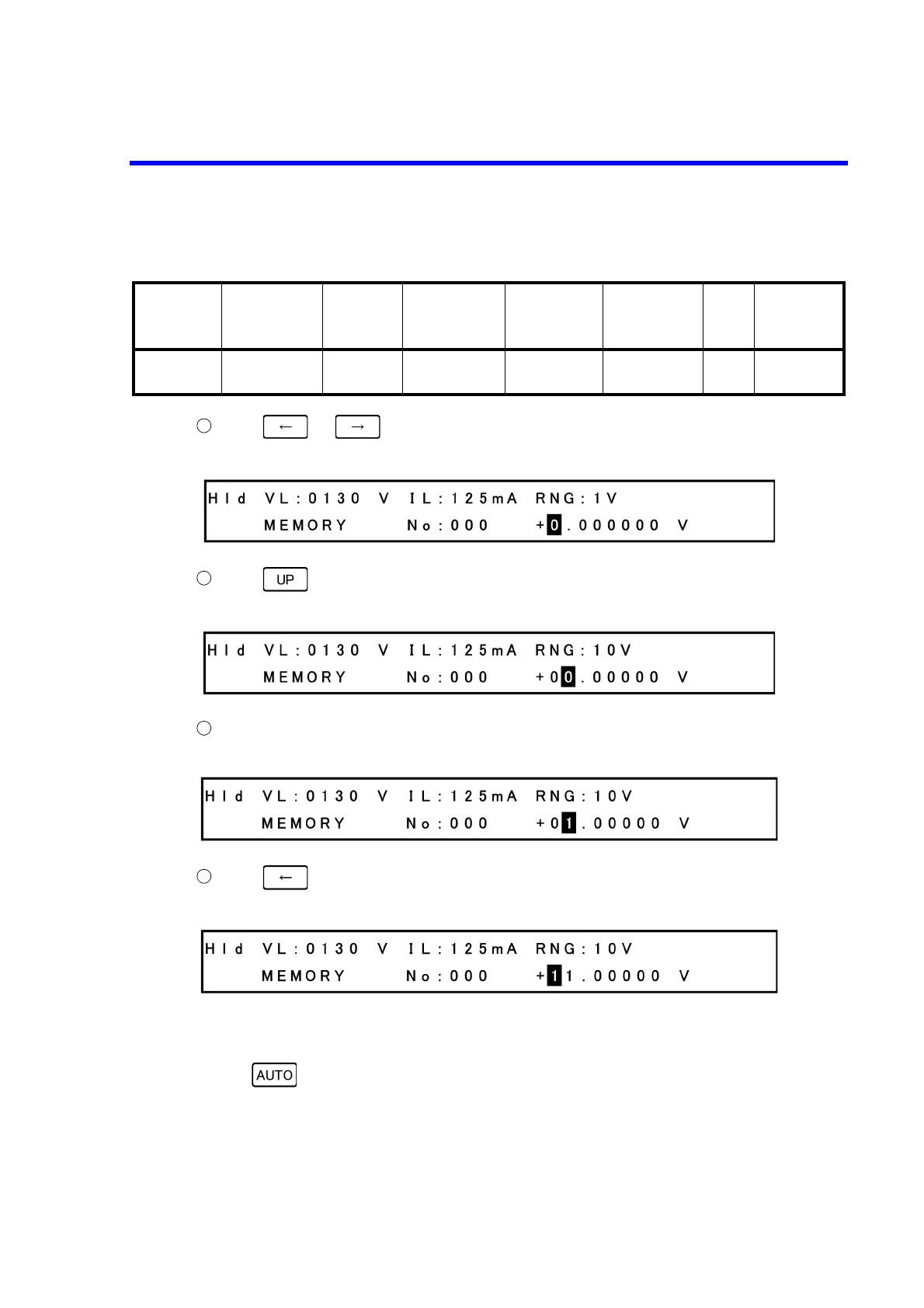

3.8.2 Setting Program Memory
3-33
The following source value is set in memory number 0
Press or to move the cursor (highlight) onto the source value.
Example display Memory setting screen
Press to change the range to 10 V range.
Example display Memory setting screen
Rotate the rotary knob to change the figure to 1.
Example display Memory setting screen
Press to move the cursor (highlight), and rotate the rotary knob to change the figure to 1.
Example display Memory setting screen
The source value also can be set using the numeric keypad. For more information, refer to Section 3.2.1,
"Outputting Voltage with Numeric Keypad."
Pressing changes the currently set range to the optimal range for the source value.
Memory
number
Source
function
Range Source value Limit value
Type of
thermocouple
JIS
Reference
junction
temperature
0 Voltage 10 V +11.00000 V VL: 50 V
IL: 50 mA
---
4
5
6
7
