6166 DC Voltage Current Source Operation Manual
3.8.2 Setting Program Memory
3-35

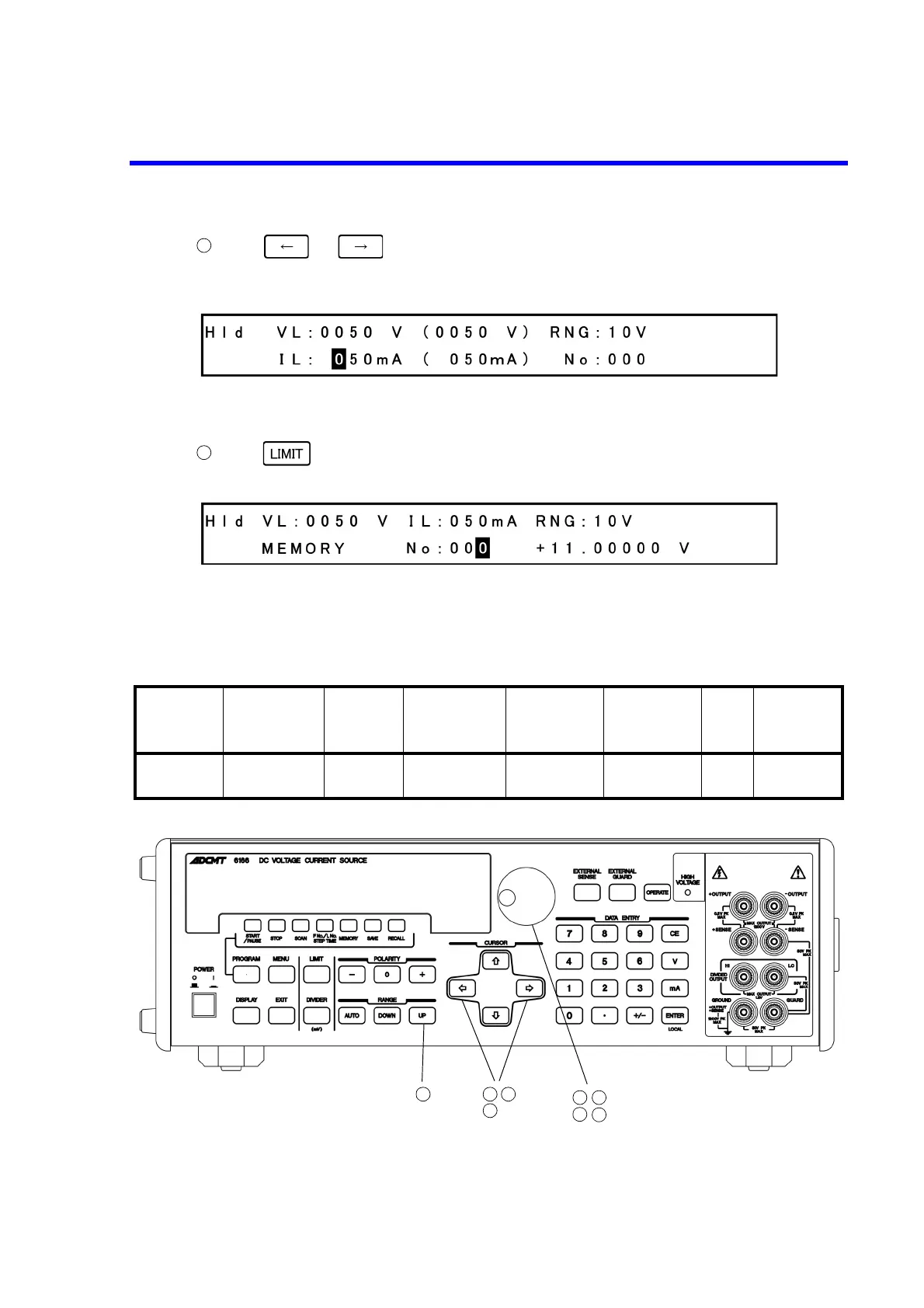

Press or to move the cursor (highlight), and change the value to 50 mA with the
rotary knob.
Example display Memory setting on the limit setting screen
The limit values also can be set using the numeric keypad. For more information, refer to Section 3.7.1,
"Setting Voltage and Current Limit Values."
Press to exit the limit setting screen. The LIMIT key goes OFF.
Example display Memory setting on the limit setting screen
(2) Operating procedure of setting the current source value in the memory
The following source value is set in memory number 1.
Memory
number
Source
function
Range Source value Limit value
Type of
thermocouple
JIS
Reference
junction
temperature
1 Current 100 mA -105.0000 mA VL: 130 V
IL: 125 mA
---
11
12
2
3
4
6
6
5
5
1
