6166 DC Voltage Current Source Operation Manual

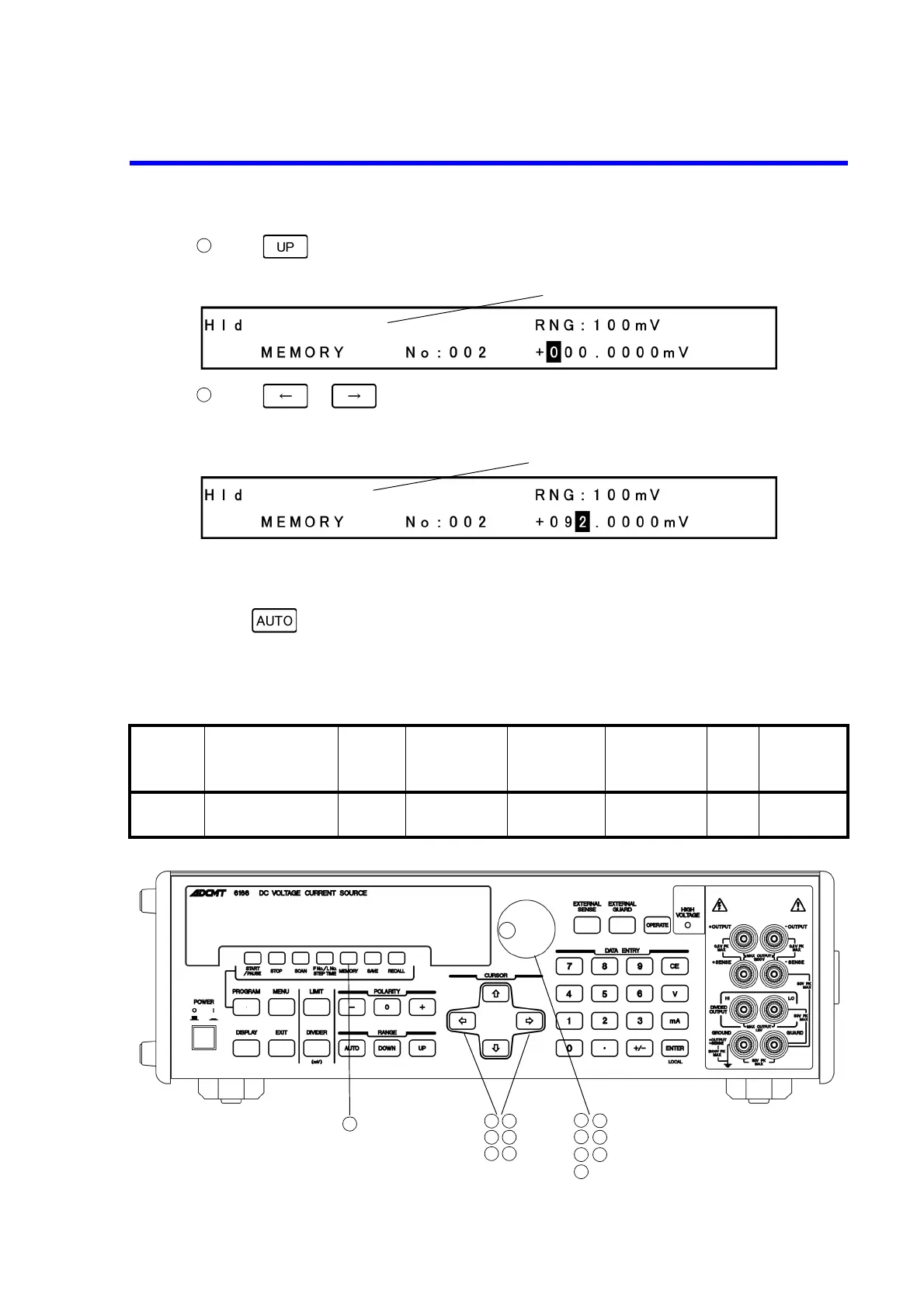

3.8.2 Setting Program Memory
3-38
Press to change the range to 100 mV range.
Example display Memory setting screen
Press or to move the cursor (highlight) onto the source value.
Change the value to 92 mV with the rotary knob.
Example display Memory setting screen
As for the divider voltage function, the limit values cannot be changed.
The source value also can be set using the numeric keypad. For more information, refer to Section 3.2.3,
"Outputting Divider Voltage with Numeric Keypad."
Pressing changes the currently set range to the optimal range for the source value.
(4) Operating procedure of setting the temperature source value (thermal electromotive force) in the
memory
The following source value is set in memory number 3.
Memory
number
Source function Range Source value Limit value
Type of
thermocouple
JIS
Reference
junction
temperature
3 Thermal electromo-
tive force
- -180.0 C- K 1981+23 C
4
Blank (No limit value setting)
5
Blank (No limit value setting)
2
3
4
6
55
1
4
6
7
8
7 8
9
