3.8.2 Setting Program Memory
3-39
Rotate the rotary knob to change the memory number to 3.

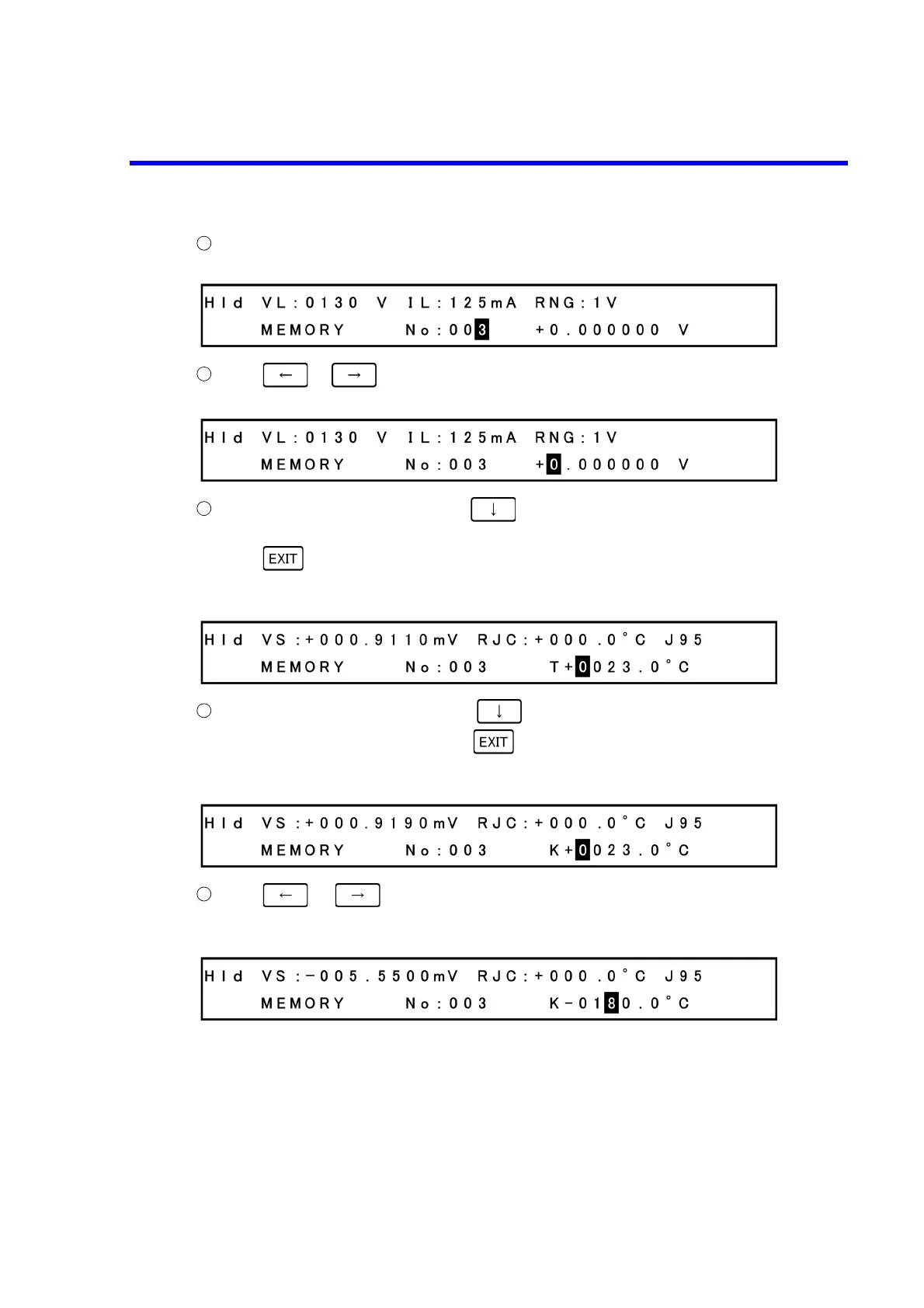

Example display Memory setting screen
Press or to move the cursor (highlight) onto the source value.
Example display Memory setting screen
Select MENU>TEMP>TC OUT, press to enter the Input/Run level and select ON.
The thermal electromotive force function is enabled.
Press to exit the menu screen.
The memory setting screen is returned, and a temperature value is displayed as source value.
Example display Memory setting screen
Select MENU>TEMP>TC Types, press to enter the Input/Run level and select Type K.
Thermocouple type K is enabled. Press to exit the menu screen.
The memory setting screen is returned and the type of thermocouple is switched to type K.
Example display Memory setting screen
Press or to move the cursor (highlight) onto the source value.
Change the source value to -180ï€ ï‚°C with the rotary knob.
Example display Memory setting screen
