Chapter 5 Optional DIO Cables
Adept MV Controller User’s Guide, Rev. B 129

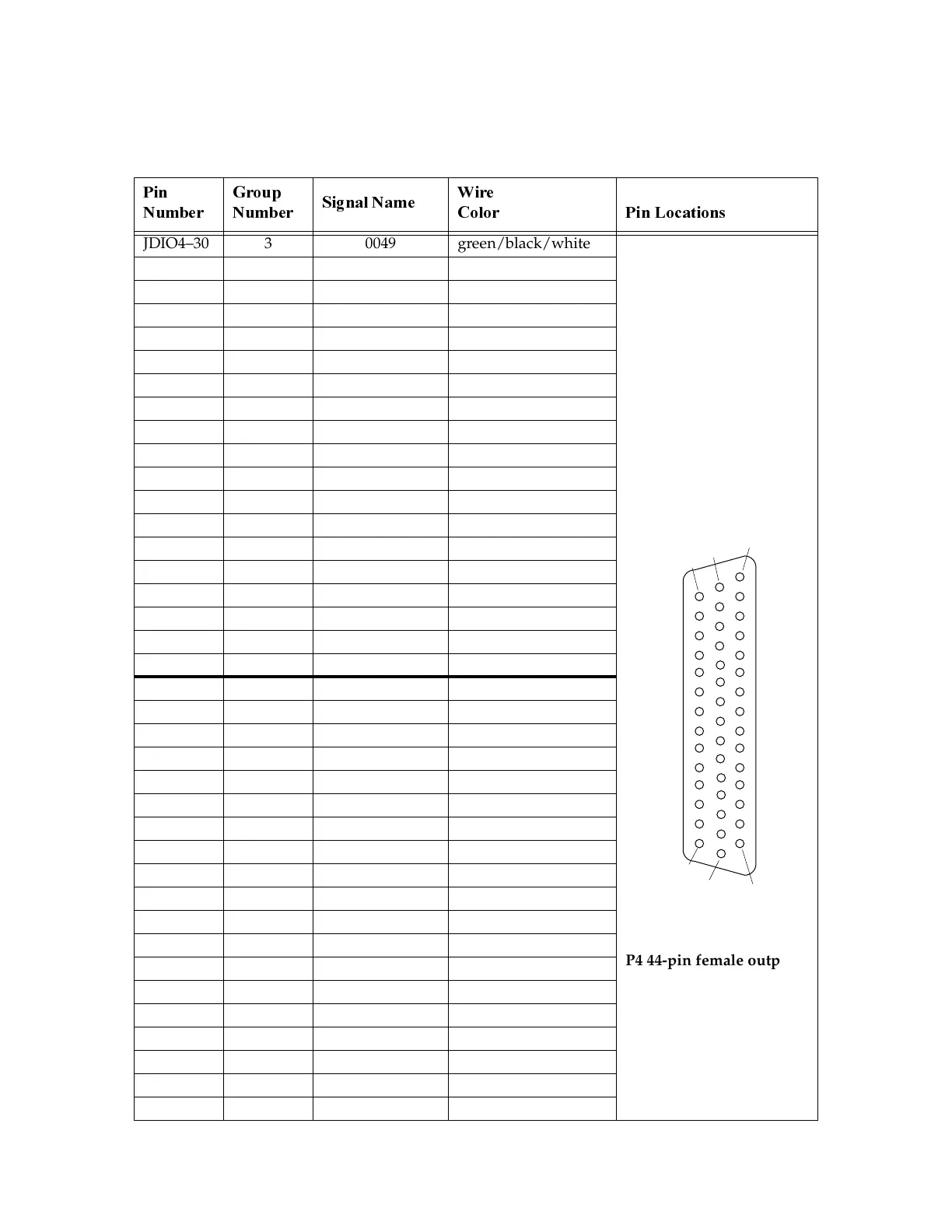

Table 5-13. JDIO4 Output Cable Pin Assignments
JDIO4–30 3 0049 green/black/white
P4 44-pin female output
connector on CIP rear
panel
JDIO4–15 3 0050 green/white
JDIO4–14 3 0051 red/white
JDIO4–13 3 0052 black/white
JDIO4–12 3 0053 blue/black
JDIO4–11 3 0054 orange/black
JDIO4–10 3 0055 green/black
JDIO4–9 3 0056 red/black
JDIO4–25 3 power orange/green
JDIO4–26 3 power black/white/red
JDIO4–38 3 power orange/black/green
JDIO4–39 3 power blue/white/orange
JDIO4–40 3 power black/white/orange
JDIO4–41 3 power white/red/orange
JDIO4–42 3 power orange/white/blue
JDIO4–43 3 power white/red/blue
JDIO4–44 3 power black/white/green
JDIO4–28 3 group 3 return white/black/red
JDIO4–29 3 group 3 test red/black/white
JDIO4–7 4 0057 white/black
JDIO4–6 4 0058 blue
JDIO4–5 4 0059 orange
JDIO4–4 4 0060 green
JDIO4–3 4 0061 red
JDIO4–2 4 0062 white
JDIO4–1 4 0063 black
JDIO4–16 4 0064 blue/white
JDIO4–17 4 power black/red
JDIO4–18 4 power white/red
JDIO4–19 4 power orange/red
JDIO4–31 4 power orange/black/white
JDIO4–32 4 power blue/black/white
JDIO4–33 4 power black/red/green
JDIO4–34 4 power white/red green
JDIO4–35 4 power red/black/green
JDIO4–36 4 power green/black/orange
JDIO4–21 4 group 4 return blue/red
JDIO4–22 4 group 4 test red/green
Pin 1
Pin 15
Pin 16
Pin 30
Pin 44
Pin 31
