Chapter 6 Keyboard Interface
136 Adept MV Controller User’s Guide, Rev. B

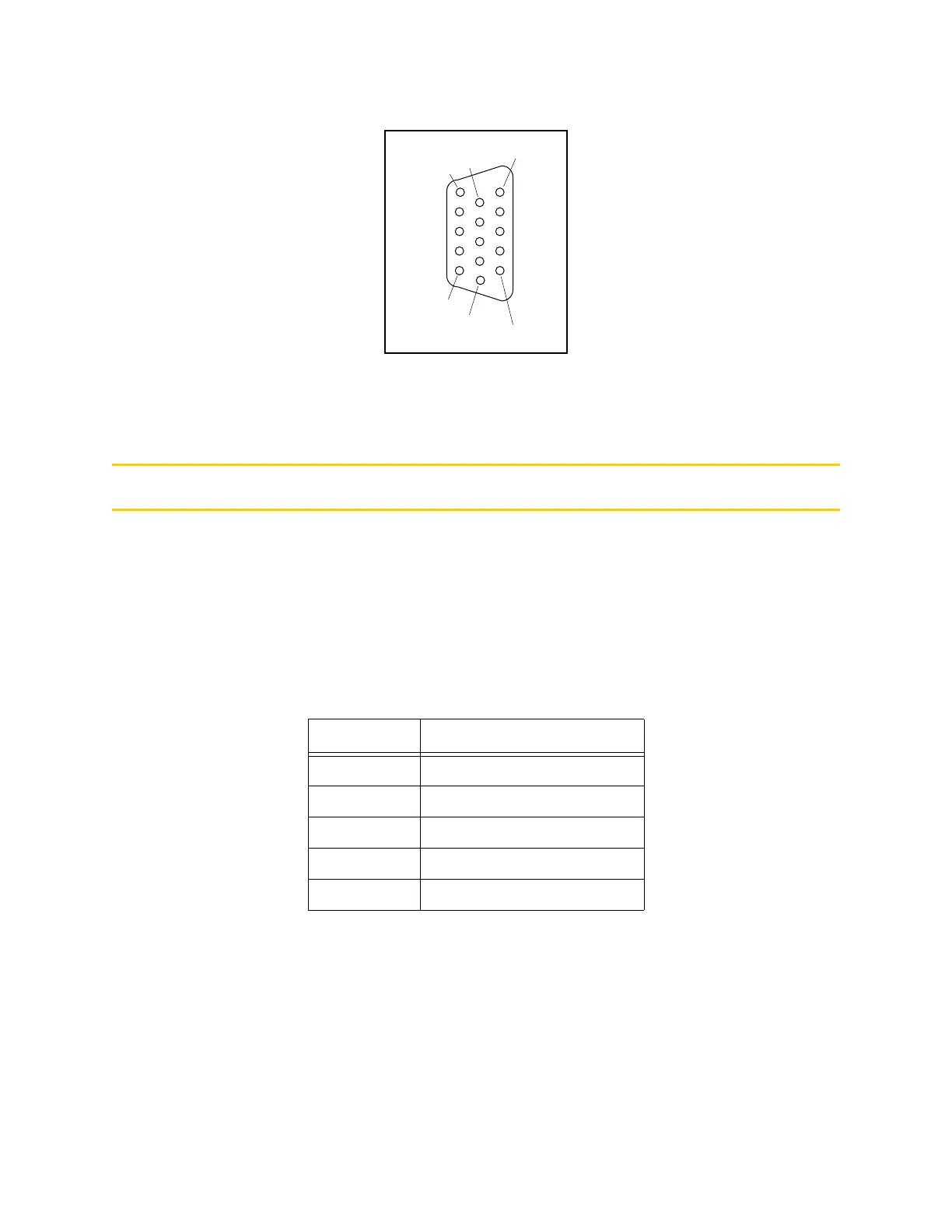

Figure 6-1. Monitor Connector Pin Locations on VGB Board
Keyboard Interface
The VGB board supports an AT-style extended keyboard with an integrated
trackball. The keyboard interface is a bidirectional, synchronous, serial interface.
The keyboard communicates with the UART on the VGB via the clock and data
lines. The keyboard input uses a standard 5-pin DIN connector. The Keyboard
connector pin assignments are shown in Table 6-4.
Table 6-4. Keyboard Connector Pin Assignments
Pin Signal
1Clock
2Data
3 not connected
4Ground
5+5 VDC
Pin 1
Pin 5
Pin 6
Pin 10
Pin 15
Pin 11
