Appendix C Color Coding of Indicator Lights
232 Adept MV Controller User’s Guide, Rev. B
Color Code Used by Adept for Service Indicators
These additional indicators are intended to assist skilled service personnel only.
They consist of small LEDs, typically located on the front of the VME boards.
They are used to indicate equipment status to facilitate maintenance and testing.
They do not require action by the operator. When the controller is installed as
recommended, the service indicators are not normally visible to the operator.
See the relevant chapters earlier in this manual for a brief description of each LED,
or contact Adept Customer Service for additional information.

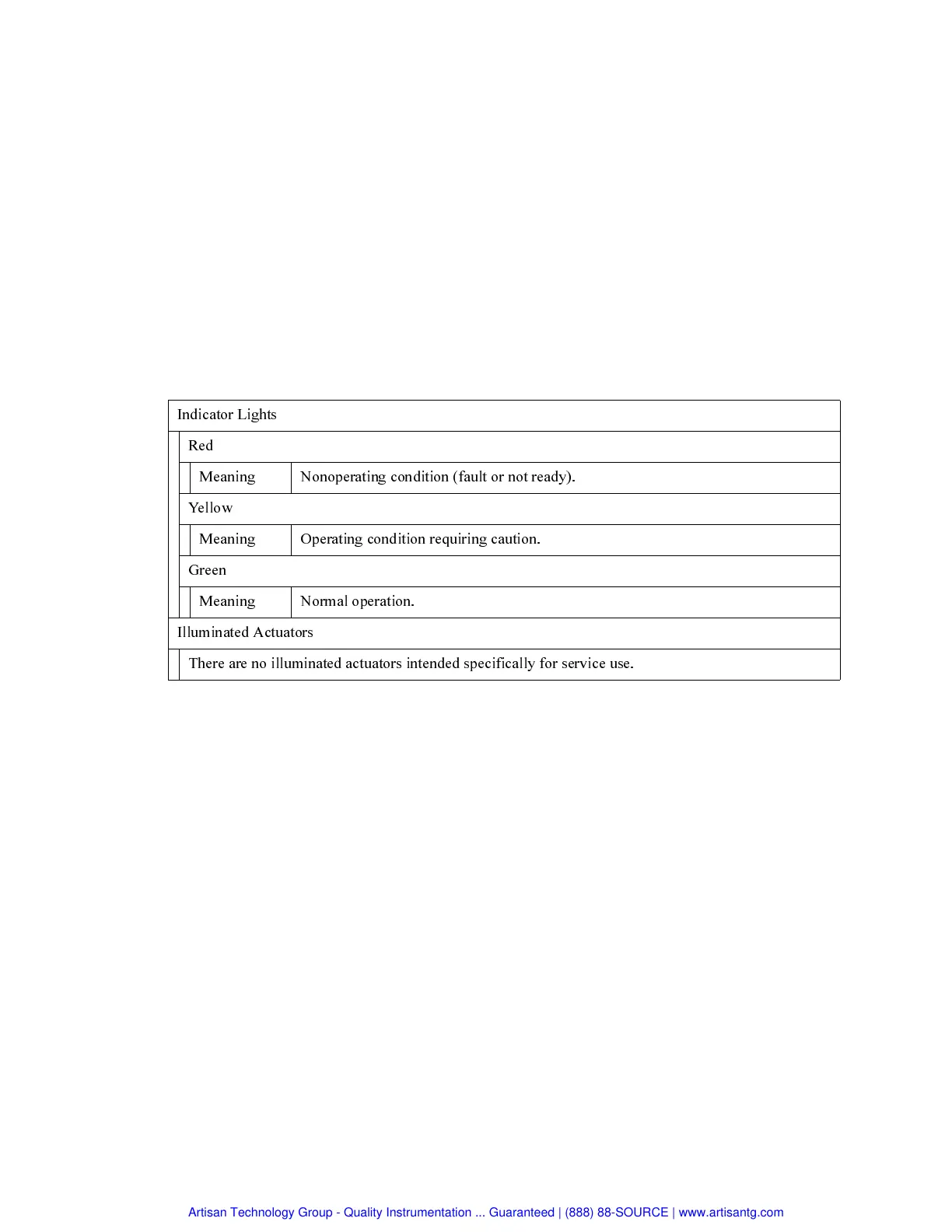

Table C-4. Service Indicator Color Code
.#) #7-
(
#7 ))#7 )##) @5' ) ) A8
I'')3
#7 #7 )##) E##7 #)8
6
#7 )' )#)8
.''# )-
) #''# )- # -#5#'' 5) -$# -8
