Chapter 7 Connections and Indicators
Adept MV Controller User’s Guide, Rev. B 141
Connections and Indicators

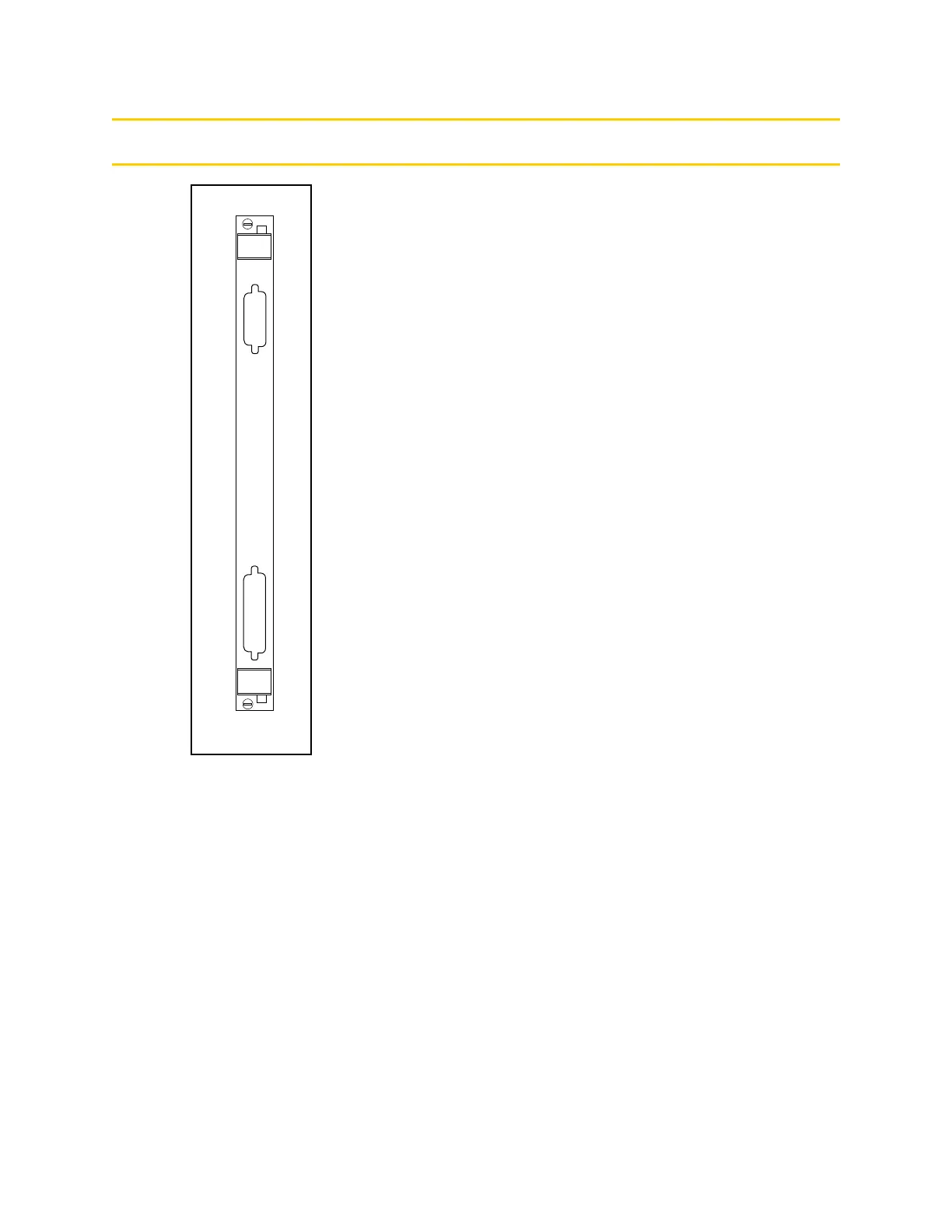

➊
Video Bus connector — a 26-pin mini D-sub connector for
installing one end of the Video Bus coupler in
AdeptVision systems. The other end of the coupler
connects to the VGB board.
NOTE:
This connector is not used with an
AdeptWindowsPC system that does not have a
VGB.
➋
Camera/Strobe connector — a 44-pin D-sub connector for
the four-camera breakout cables.
V
I
D
E
O
B
U
S
C
A
M
E
R
A
S
/
S
T
R
O
B
E
S
EVI
➊
➋
