adept technology MV User Manual

Chapter 7 Camera Cables
150 Adept MV Controller User’s Guide, Rev. B
Custom Pulnix TM-1001 D-sub to BNC Adapter Cable
This cable has a 9-pin D-sub connector on one end and four Video and Sync BNC
connectors and power connectors at the other end. The cable length is 1.54 meters
(60 inches).

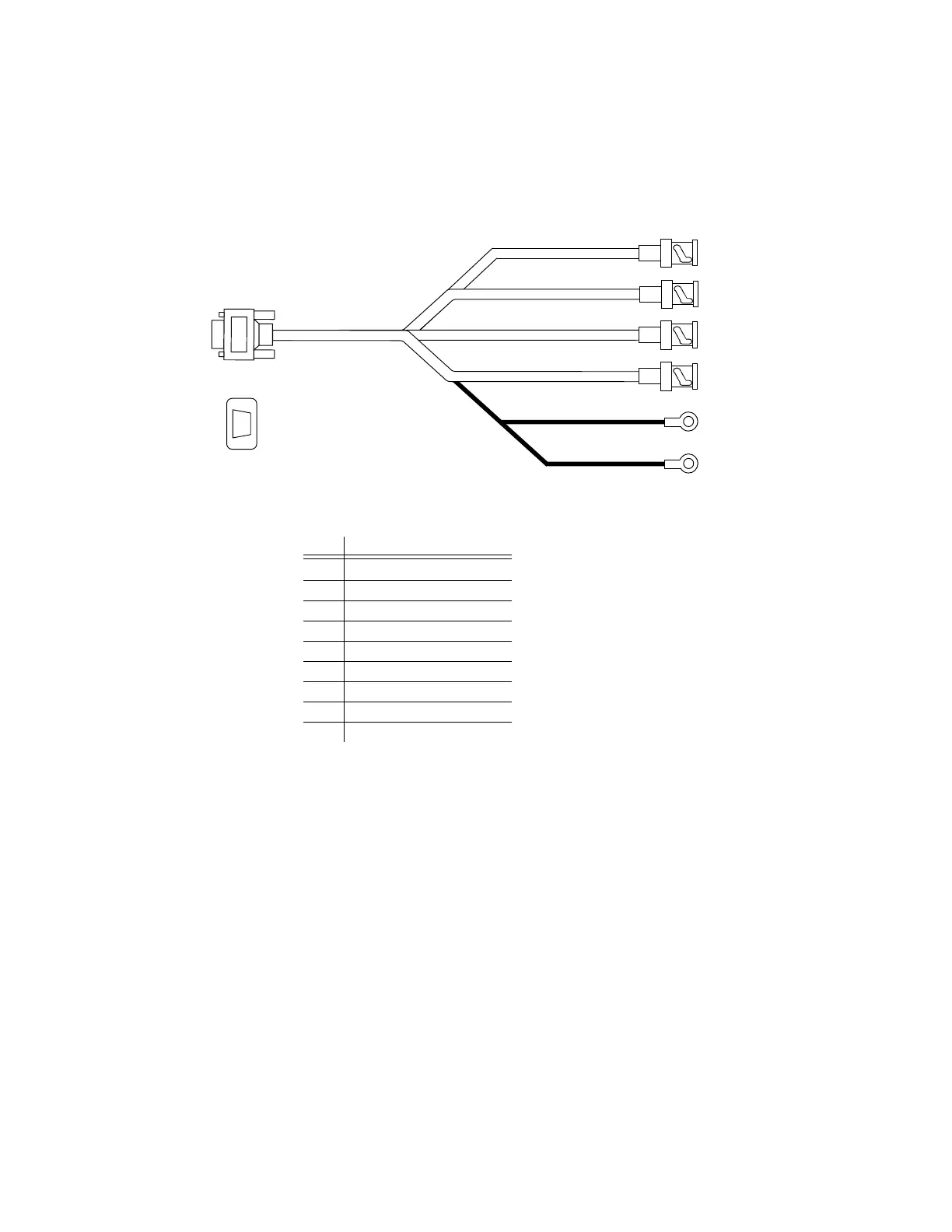

Figure 7-6. D-sub Adapter Cable for Pulnix TM-1001
5
9
1
6
9-pin
D-sub
Connector
Pin Signal
1 User +12V to cameras
2 User power return (Gnd)
3 Strobe 1
4 Strobe return (Gnd)
5 Strobe 2
6 Frame reset 1
7 Frame reset return (Gnd)
8 Frame reset 2
9 Shield (chassis ground)
D-sub Auxiliary Connector
Pin Assignments
Strobe
Frame Reset 1
Strobe
Frame Reset 2
Power
Ground
Gray
Yellow
Red
Orange
Black
White
9-pin
D-sub
Connector
D-sub Auxiliary Connector Pin Assignments
Pin Signal
1
User +12V to cameras
2 User power return (Gnd)
3 Strobe 1
4 Strobe return (Gnd)
5 Strobe 2
6 Frame reset 1
7 Frame reset return (Gnd)
8 Frame reset 2
9 Shield (chassis ground)
Strobe
Frame Reset 1
Strobe
Frame Reset 2
Power
Ground
Red
Orange
Black
White
Ye l l ow
Gray
