Chapter 10 Belt Encoder Interface
184 Adept MV Controller User’s Guide, Rev. B
Belt Encoder Interface
For use with conveyor tracking, EJI boards support two independent external belt
encoders through a single, female, 15-pin D-sub connector. The pin assignments
for the Belt Encoder connector are shown in Table 10-3. See Figure 10-2 for a
typical input circuit drawing. Adept strongly recommends using differential
encoder outputs for maximum noise immunity. See the V
+
Language User’s Guide
for more information on setting up and programming a conveyor tracking
application.
NOTE:
Conveyor tracking requires a V
+
Extensions License, which
can be obtained from Adept.

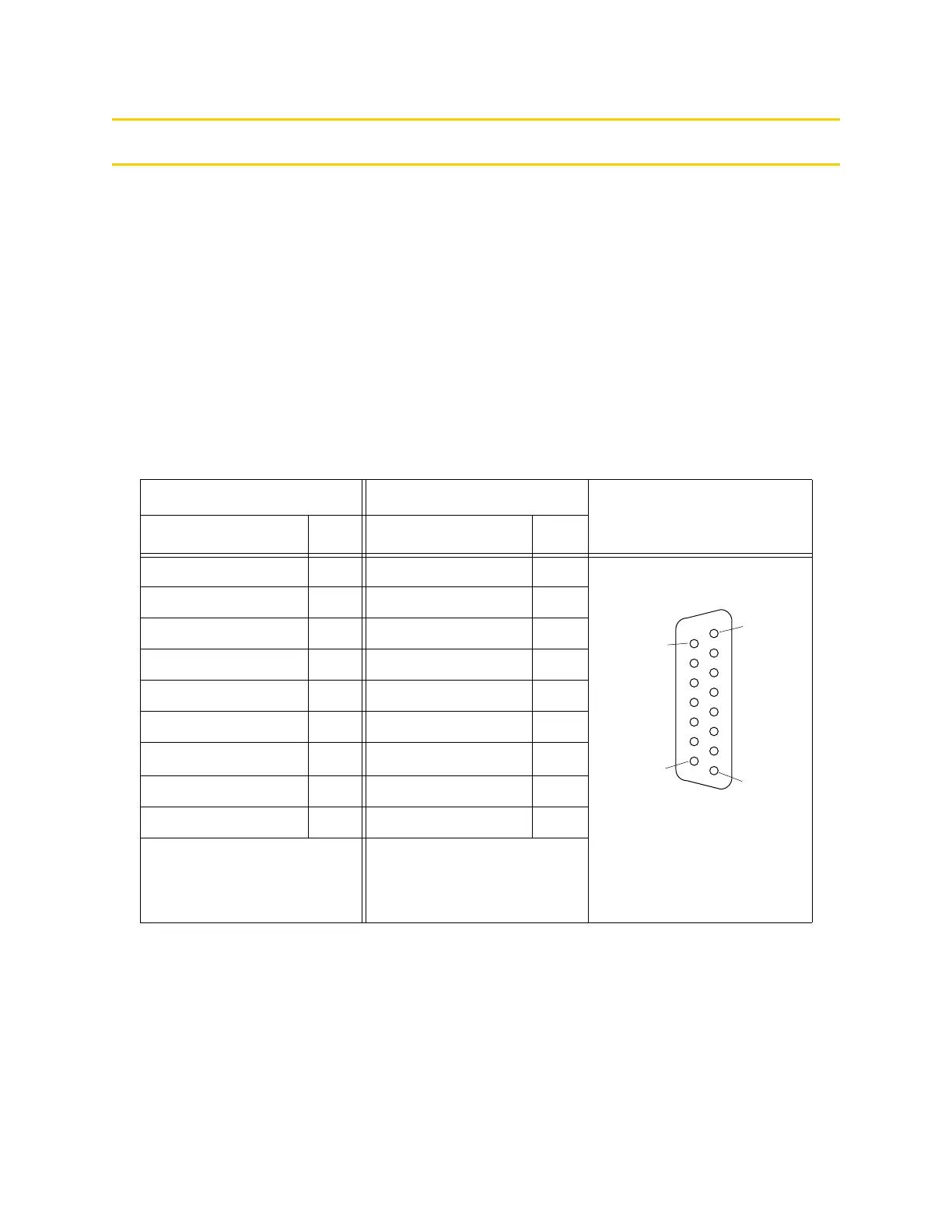

Table 10-3. Belt Encoder Connector Pin Assignments
Channel 1 Channel 2
Pin Locations
Signal Pin Signal Pin
A+ 9 A+ 13
Figure 10-1. EJI
Belt Encoder
Connector Pinout
A– 2 A– 6
B+ 10 B+ 14
B– 3 B– 7
I+ 11 I+ 15
I– 4 I– 8
Pull up
a
a
User-supplied pull up (used for single-ended encoders only)
1
Pull up
a
1
Encoder power out 5 Encoder power out 5
Encoder ground 12 Encoder ground 12
Pin 8
Pin 1
Pin 15
Pin 9
