Chapter 7 Installing Video Bus Coupler
146 Adept MV Controller User’s Guide, Rev. B
Installing Video Bus Coupler
The video bus coupling (VTV) (see Figure 7-7) transfers data between the EVI
board and the VGB board. These two boards must be installed next to each other
in the controller chassis. When using AdeptWindowsPC as the operator interface,
there may not be a VGB installed. In this case the VTV is not used.
1. Make sure the controller On/Off switch is turned off.
2. Verify that the EVI and VGB boards are installed next to each other in the
controller.
3. Plug the coupler into the video bus connectors on the EVI and VGB boards.

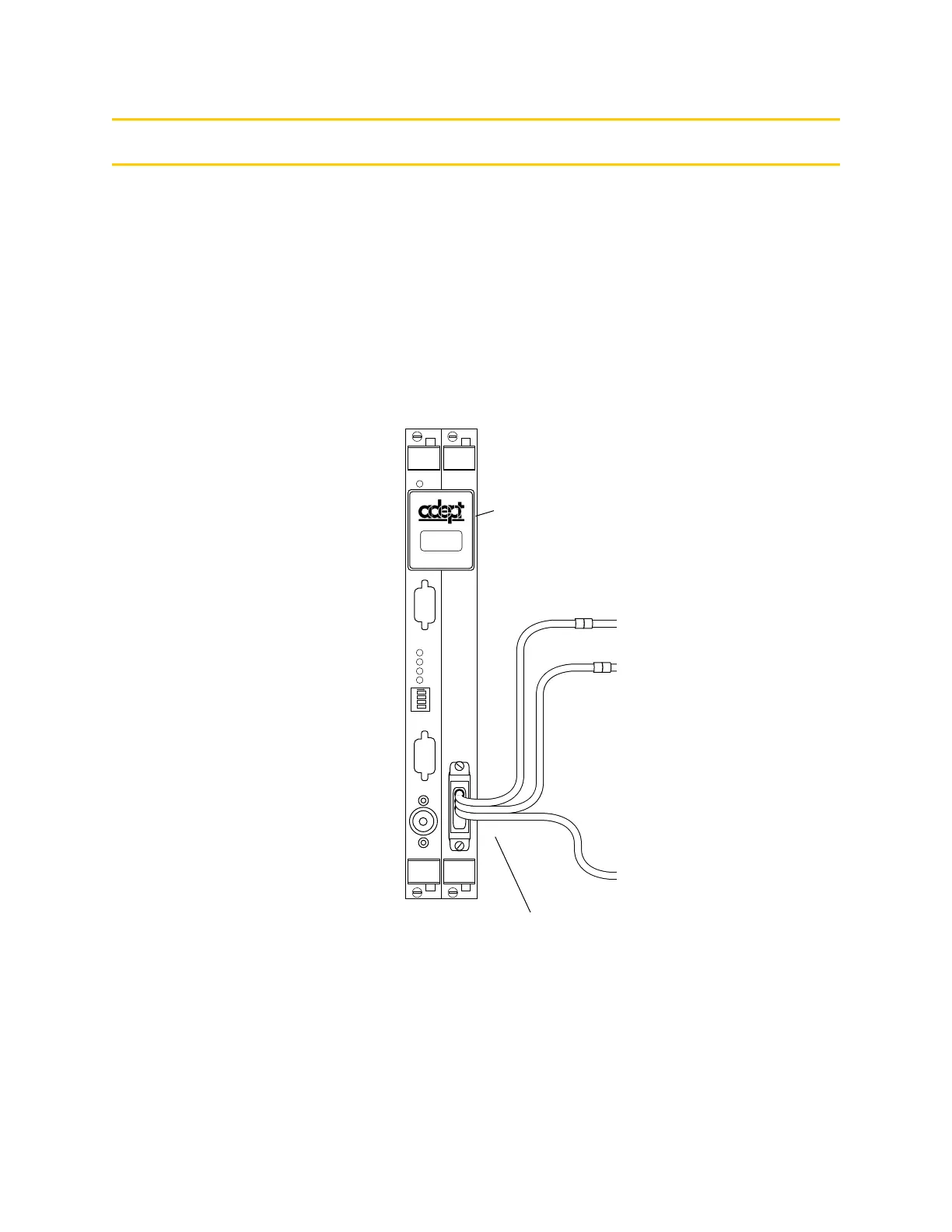

Figure 7-3. Video Coupling for a Two-Camera Connection
C
A
M
E
R
A
S
/
S
T
R
O
B
E
S
EVI
P
O
I
N
T
E
R
1
2
3
4
ON
2
3
41
M
O
N
I
T
O
R
KEYBOARD
OK
VGB
Stro
Con
Video Bus Coupling
Installed
Four-Camera
Breakout Cable
1
C
e
VIDEO
BUS
Video Bus Coupling
Installed
Four-Camera
Breakout Cable
