Appendix D Manual Control Pendant Basics
Adept MV Controller User’s Guide, Rev. B 239
Function Buttons
The predefined function buttons have specific, system-wide functions assigned to
them. These functions are covered in “MCP Predefined Functions” on page 241.
The programmable function buttons are used in custom application programs,
and their functions will vary depending upon the program being run. See the
documentation for your application programs for details on these buttons. Figure
D-3 shows the function buttons.
Data Entry Buttons
The data entry buttons shown in Figure D-4 are used to input data, normally in
response to prompts that appear on the pendant display. The data entry buttons
include, +/ ,' , –/ /* , 6,0 , the numeric buttons (0-9), the decimal point, and the
-,36*/, button. These buttons are similar to the numeric keypad on a standard
keyboard.
REC/DONE Button
— behaves like the Return or Enter key on a standard
keyboard. When data entry is complete, pressing -,36*/, sends the entry to the
controller. In many cases, application programs have users press the -,36*/,
button to signal that they have completed a task.
DEL Button
— acts like the backspace key on a standard keyboard. When data is
being entered, it will appear on the pendant display. D ,0 will delete any
characters that appear on the pendant display but have not been entered using
the -,36*/, button. Application programs may also assign special functions to
the 6,0 button.

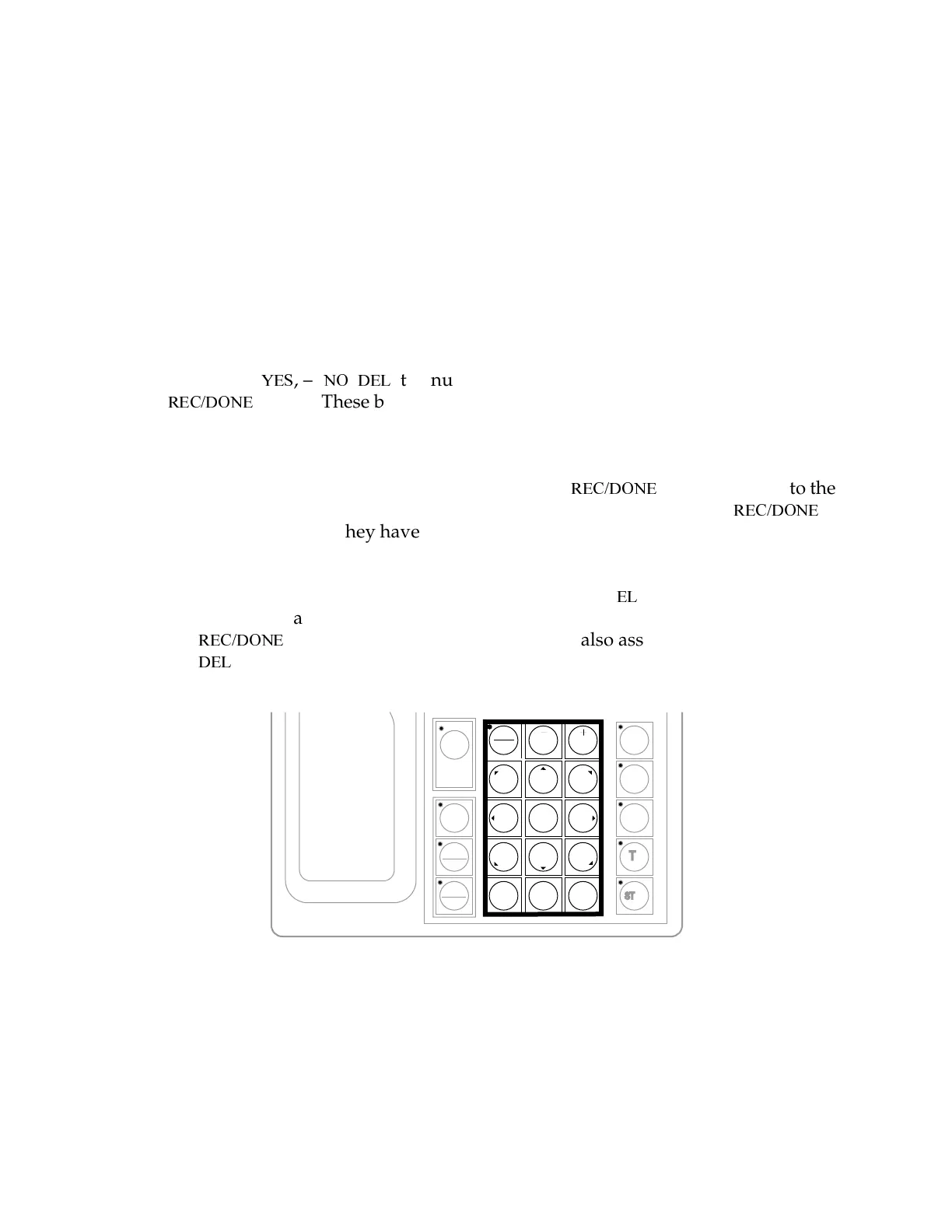

Figure D-4. Data Entry Keys
F
1
SLOW
T
STEP
1
RZ
6
RY
5
RX
4
REC
DONE
F3
DEV
0 • DEL
123
456
789
YESNO
F
J
7
J
12
–
